Description

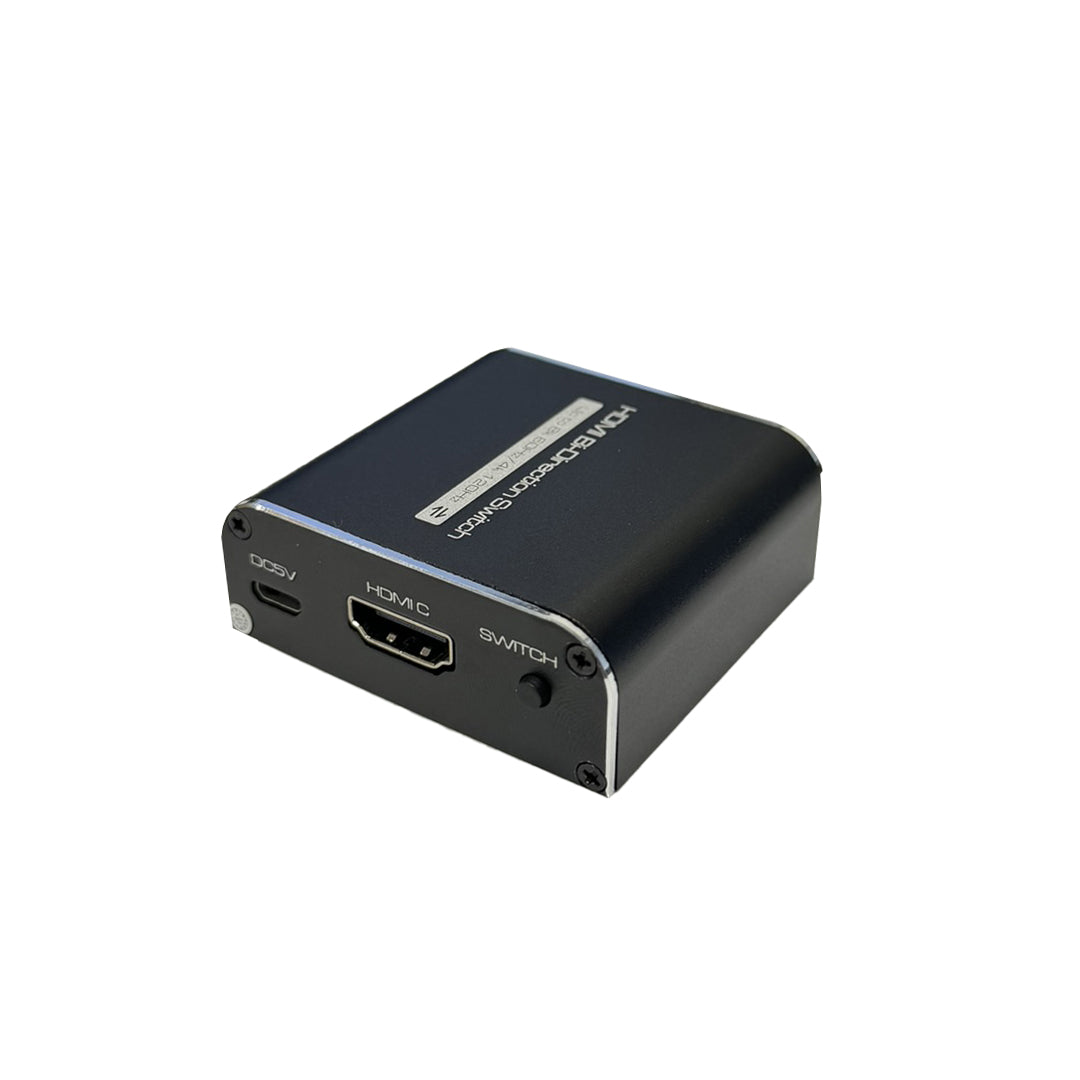

This 1x2 bi-directional HDMI 2.1 switch enables you to change from one HDMI source to one of two HDMI displays or vice versa, one of two HDMI sources to one HDMI display. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as UHD TVs, projectors or HDMI monitors. A push button on the device controls which source/monitor is being displayed. The switch performs at HDMI 2.1 resolutions - 8K at 60Hz with transmit bandwidth up to 48Gbps. It also supports HDCP 2.3 and is backward compatible.
NOTE: This unit cannot be used as a splitter.
| Physical Characteristics | |
|---|---|
| Dimensions |
56mm x 53mm x 20.8mm |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | Yes |
| DVD to TV | Yes |
| Connector(s) | |
| Input/output | 1 x HDMI Female |
| Output/input | 2 x HDMI Female |
| Performance | |
| Video Format |
480P/720P/1080P/2160P@120/60/50/30/25/24 4320@60/50/30/25/24 Supports HLG/HDR/HDR10/HDR10+ and Dolby Vision |
| Deep Color | 8/10/12/16Bit@2160P ,8/10bit@4320 |
| Audio Format | Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM |
| HDCP Compliant | Yes, Supports HDCP2.2/1.4 |
| Transmission Bandwidth | 1.2GHz Max. |
| Transmission Rate | 48Gbps Max. |
| Max Working Current | 400mA |
| Working Temperature | -5 ~ +40℃ |
| Working Humidity | 5 to 85%RH (No Condensation) |
| Storage Temperature | -15 to 55℃ |
| Storage humidity | 5 to 95%RH (No Condensation) |
| Approval |
|
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Included in Package | 1 - HDMI Switch |

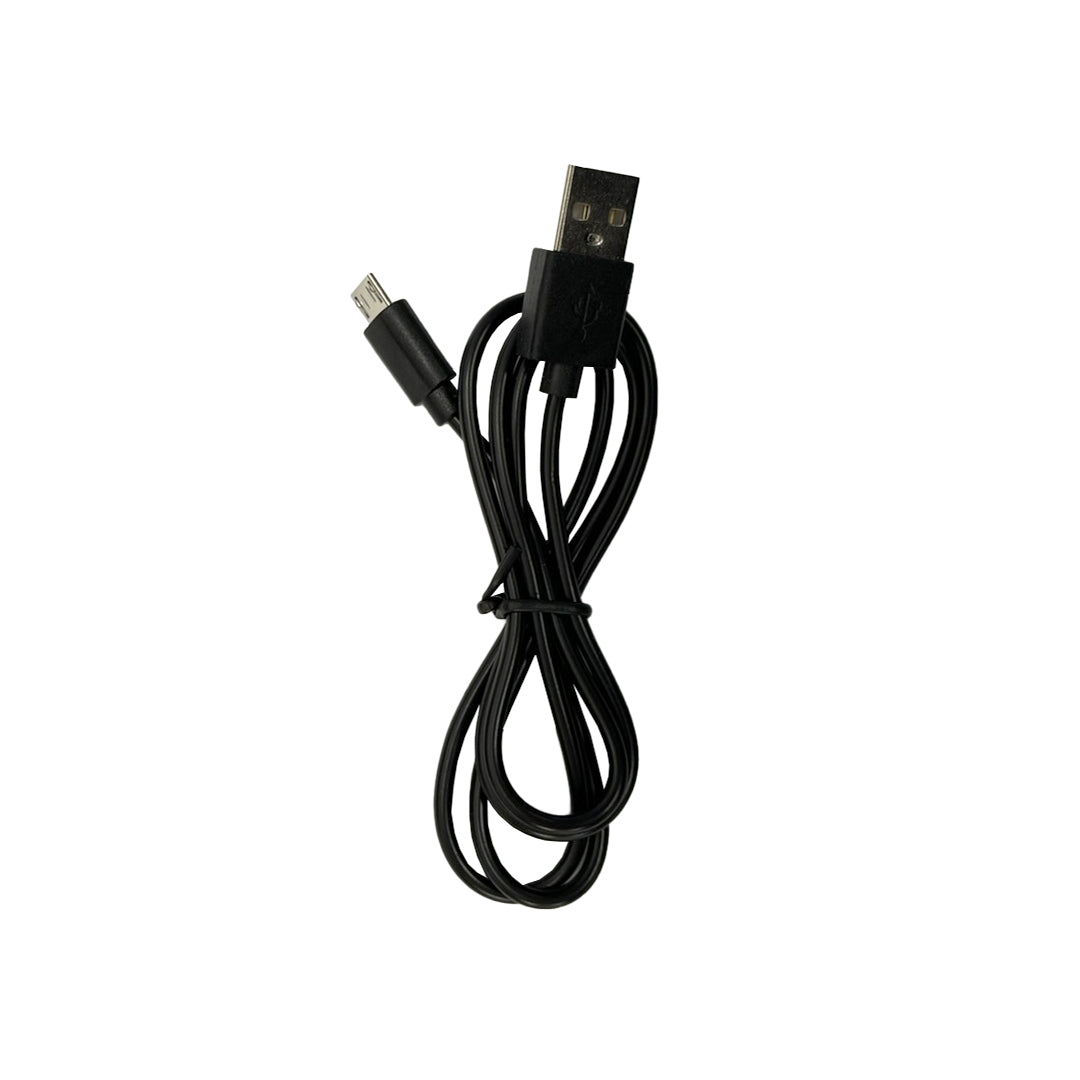

| 1 - Micro USB External Power Supply | |
| Weight | 0.19lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| VW-HDMI-300 | 0.19 lb |
