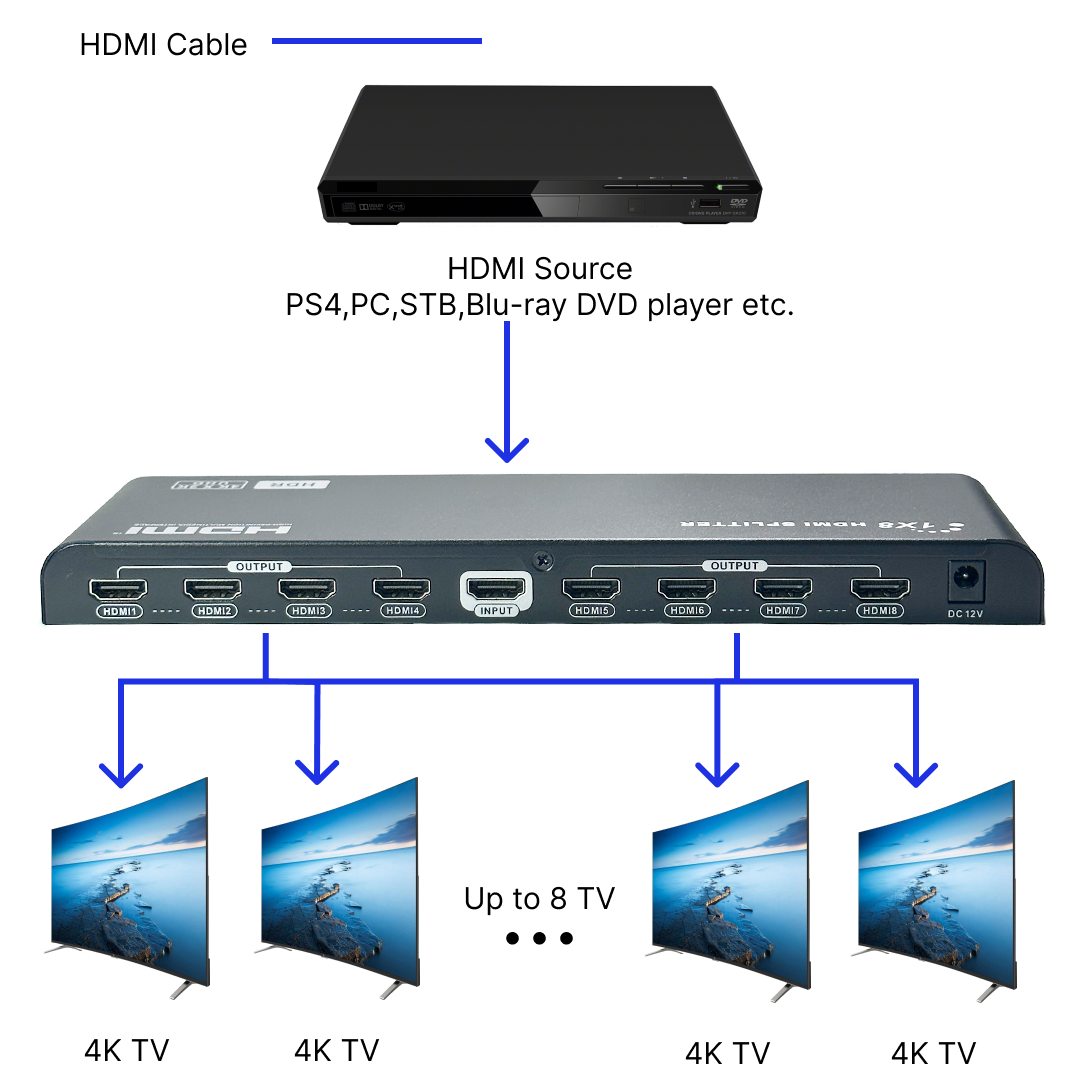

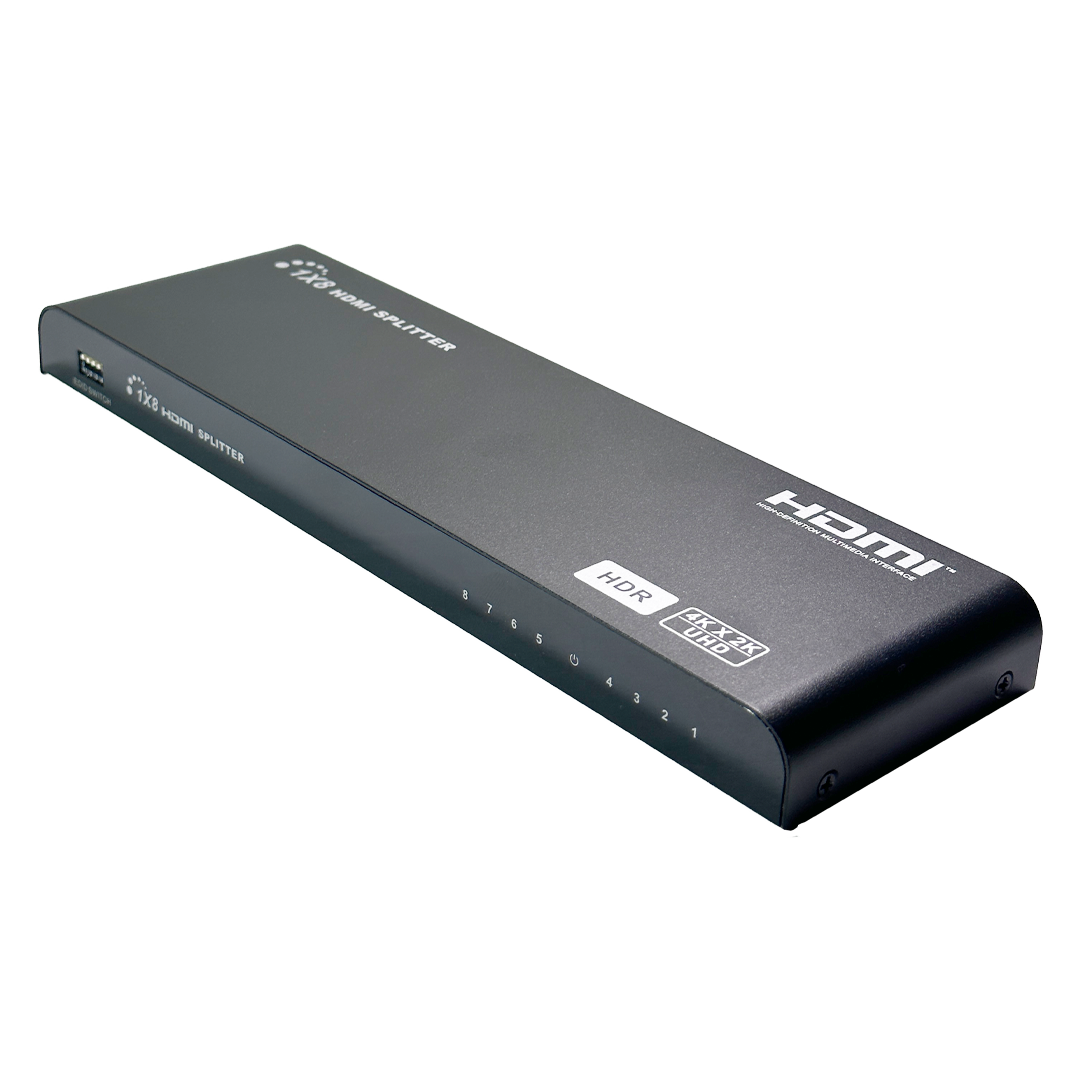

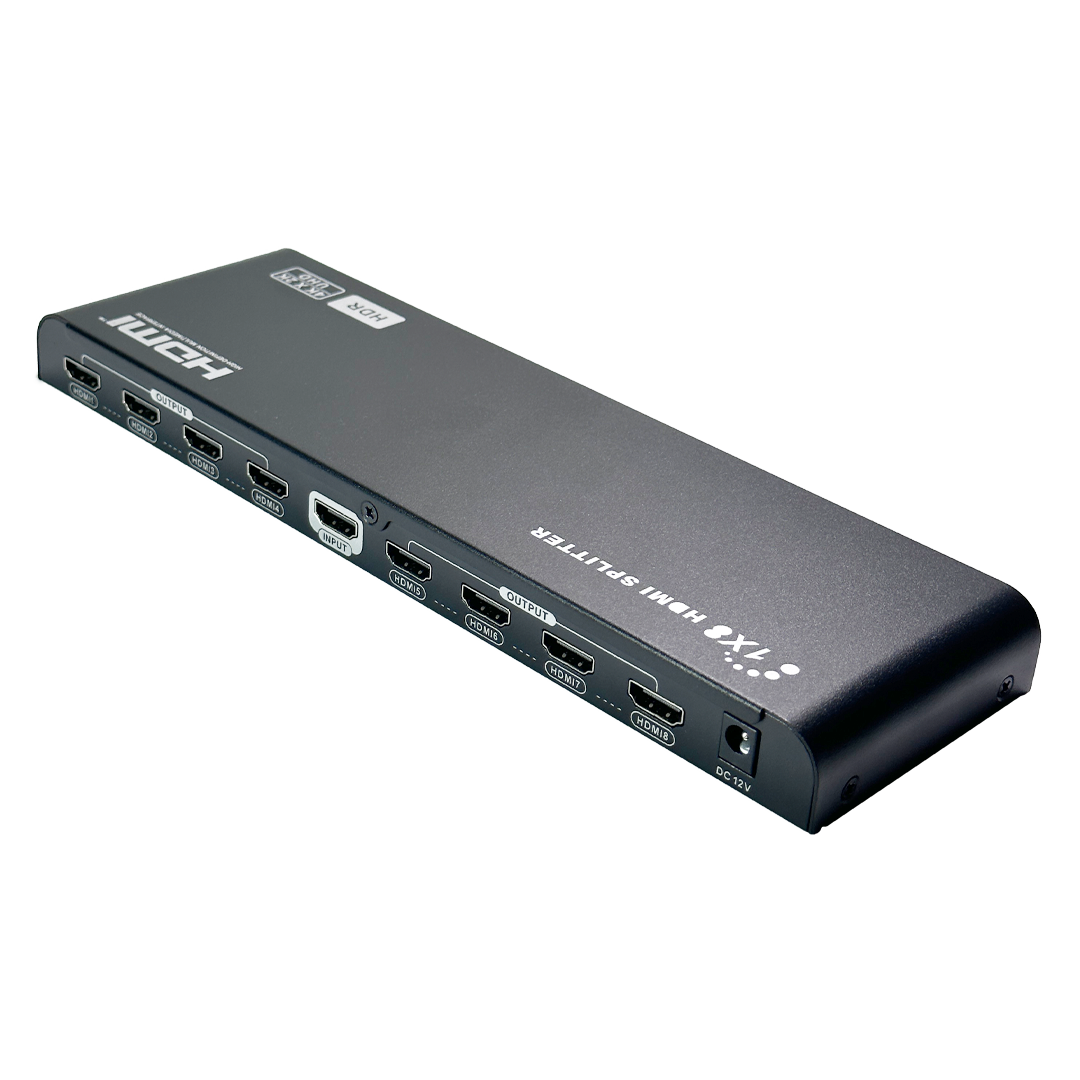

This 1x8 HDMI splitter enables you to display one HDMI device to eight HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors. The splitter performs at HDMI 2.0 resolutions - 4K at 60Hz with 4:4:4 chroma subsampling and a transmit bandwidth up to 18Gbps. It also supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0℃～60℃ |
| Power | |
| Input Voltage | 240V |
| Power Supply | 12V/1A DC |
| Power Consumption | <8W |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | Yes |
| DVD to TV | Yes |
| Connector(s) | |
| Input | 1 x HDMI Female |
| Output | 8 x HDMI Female |
| Performance | |
| HDMI Resolution | Compatible with HDMI1.4,HDMI2.0 |
| HDMI Version | Compatible with HDMI1.4,HDMI2.0 |
| 3D Video | Yes |
| HDCP Compliant | Yes, Supports HDCP2.2/1.4 |
| HDR Support | Yes |
| Audio | Support standard audio and DSDï1/4ˆDirect Stream Digital) and HD(HBR) audio |
| Transmission Rate | 18Gbps |
| Frequency Range | 25MHz~594MHz |
| Input and output TMDS signal | 0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| EDID management | Support smart EDID management, available to display different resolution monitors at the same time |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.04 lbs [0.47kg] |
| Package Weight | 1.81 lbs [0.83kg] |
| Dimensions | 262mm(L) x 81.6mm(W) x 23.5mm(H) |
| Contents | |

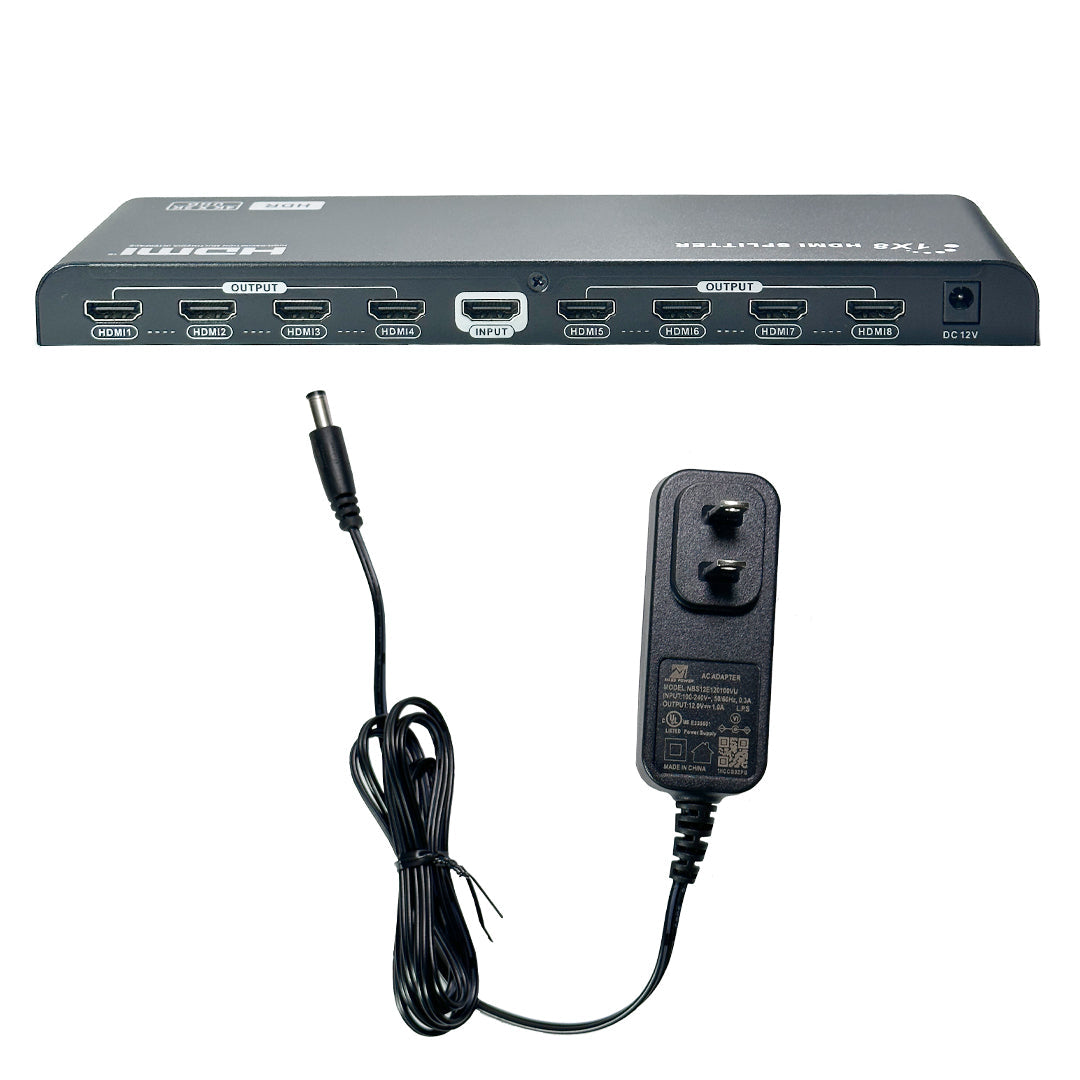

| Included in Package | 1 - HDMI Splitter |

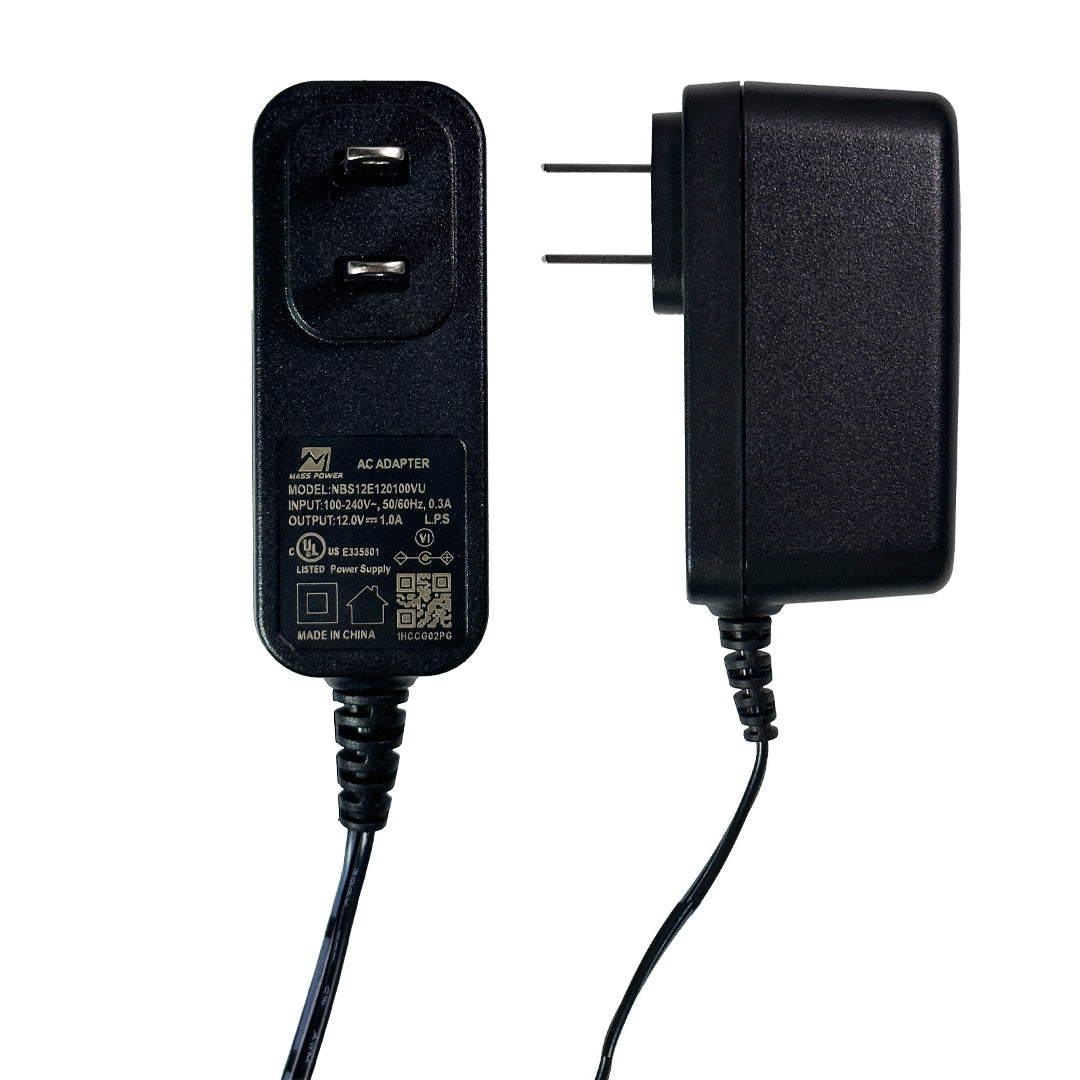

| 1 - DC12V Power Adapter | |
| 1 - Manual | |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| VP-HDMI-223 | 1.81 lb |
