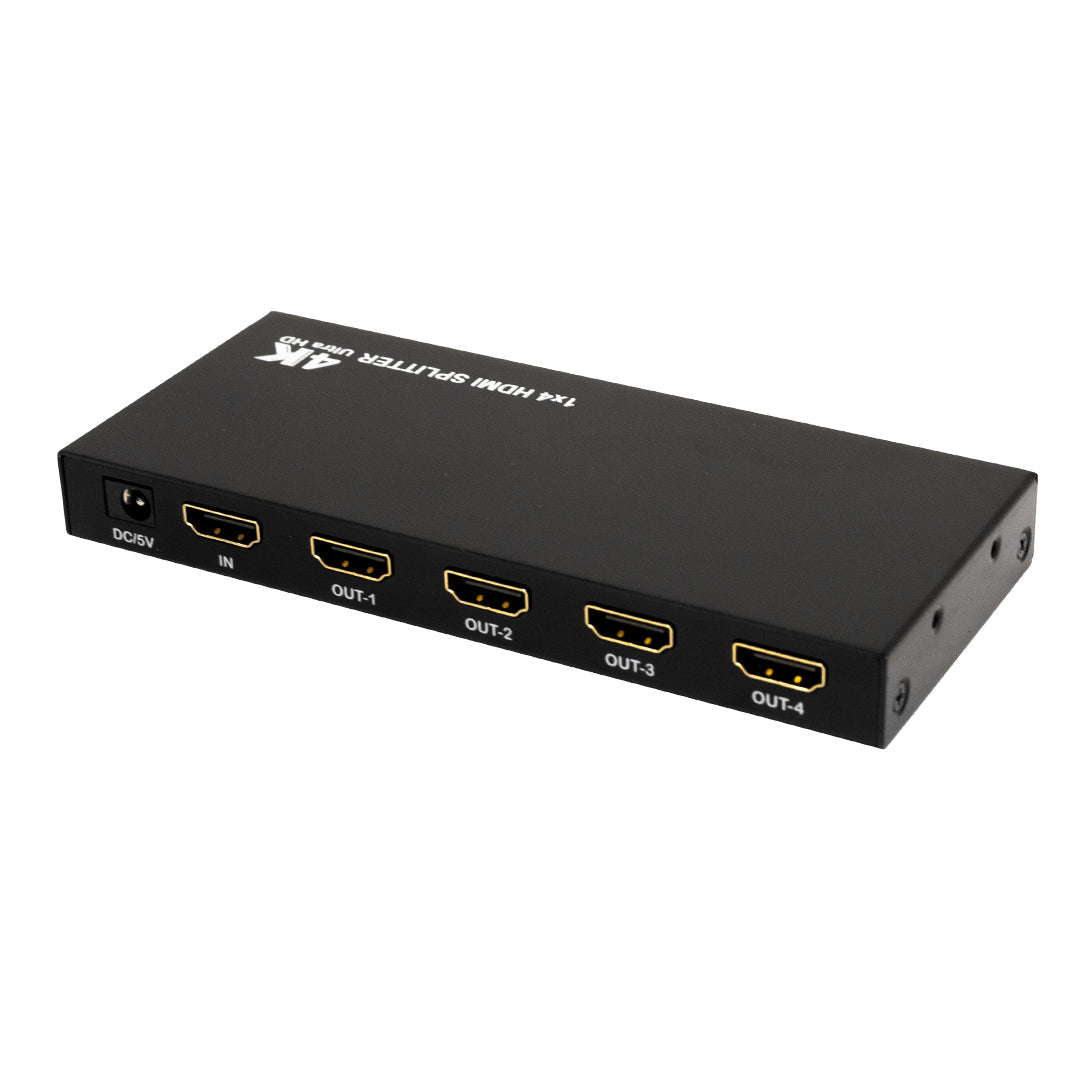

This 1x4 HDMI splitter enables you to display one HDMI device to four HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Features:
- Simultaneously displays an UItra Hi-Def source on up to four UItra HD displays
- Supports resolution up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0)
- Compatible with HDMI 1.4 and HDCP 1.4
- Supports PCM2.0 48 Khz
- Supports 3D, copy EDID
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -5ā ~ 35ā |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Power | |
| Input Voltage | AC 100~240V - 50/60Hz 0.2A Max |
| Power Supply | 5V/1A DC |
| Power Consumption | 1W (Max) |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | Yes |
| DVD to TV | Yes |
| Connector(s) | |
| Input | 1 x HDMI Female |
| Output | 4 x HDMI Female |
| Performance | |
| HDMI Resolution | Up to Ultra HD 4K*2K (3840x2160@60Hz YUV 4:2:0) |
| HDMI Version | HDMI 1.4Ā |
| Bandwidth | 10.2Gbps |
| 3D Video | Yes |
| HDCP Compliant | Yes, HDCP 1.4 |
| Audio | PCM2.0 48Khz |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.54 lbs [0.24kg] |
| Package Weight | 0.89 lbs [0.40kg] |
| Contents | |
| Included in Package | 1 - HDMI Splitter |

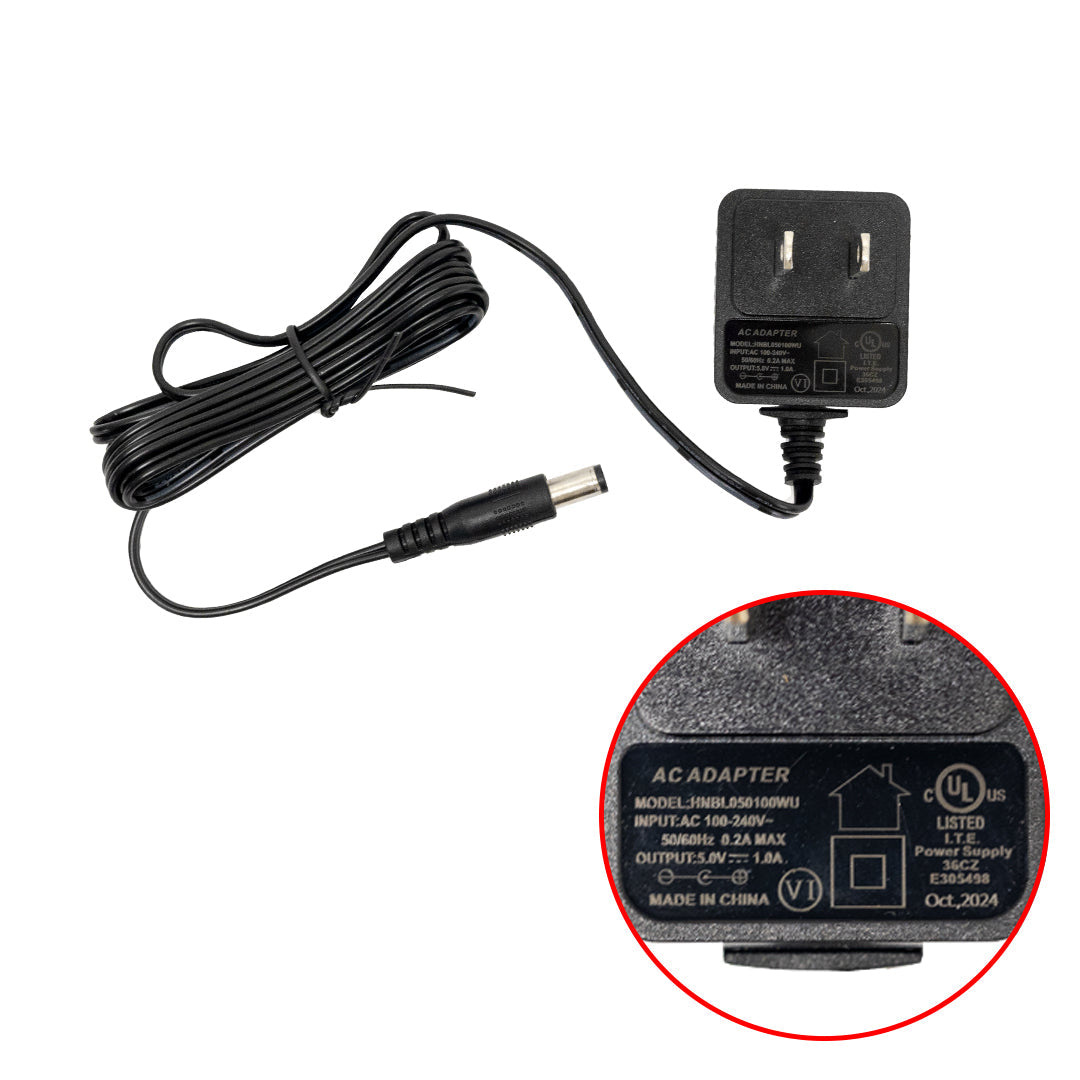

| 1 - DC5V/1A Power Adapter | |
| 1 - Manual | |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| VP-HDMI-205 | 0.89 lb |
