Name: 1U 19" Rackmount FDU with Slide Out (holds 2 panels) (Non-LGX) - Black
Brand: Non-LGX Fiber Optic Patch Panels & Enclosures
SKU: PP-F1000-1UBK
Price: 46.19 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1U 19" Rackmount FDU with Slide Out holds 2 panels - Black

1U 19" Rackmount FDU with Slide Out (holds 2 panels) (Non-LGX) - Black

Description
Spec Sheets
Product Weights

Description

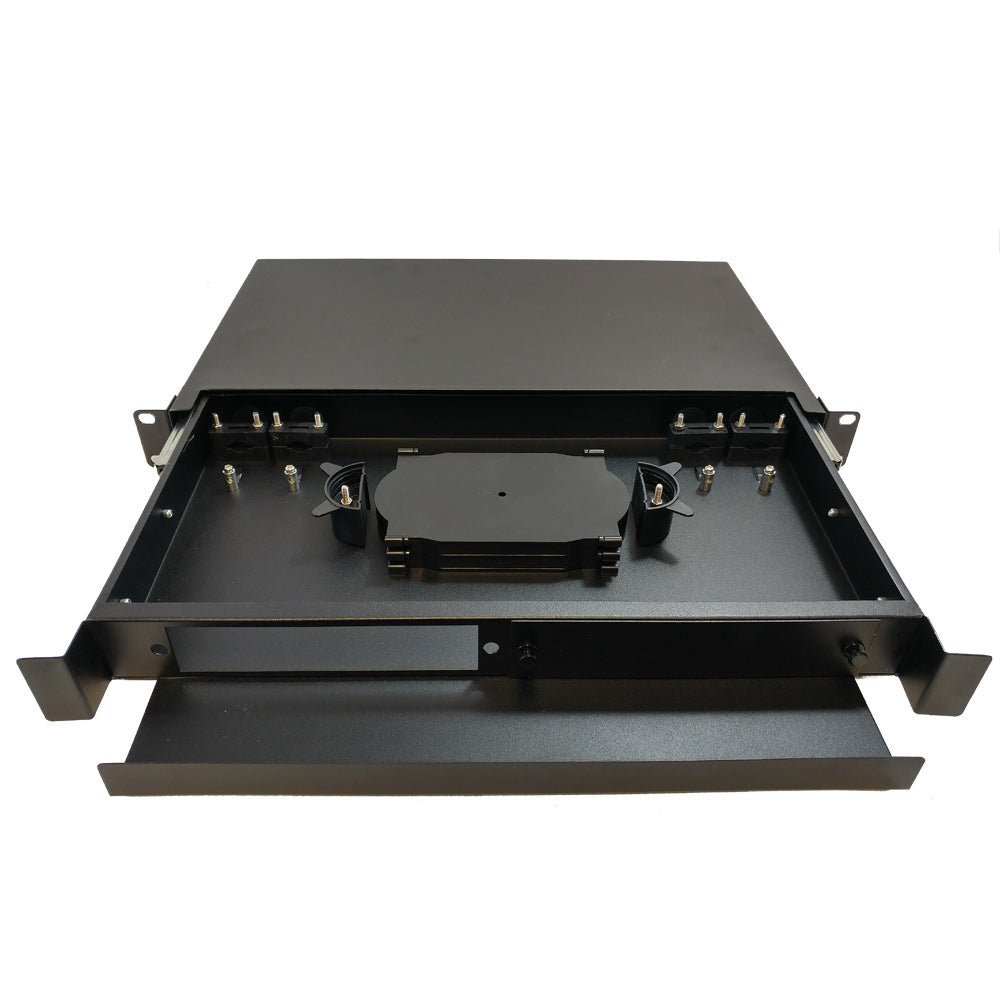

This 19 inch rackmount fiber optic enclosure is 1U in height, has a latching slide out tray for easy access and accepts up to two fiber adapter panels. It is used to interconnect fiber splices and terminated fiber cables. The unit comes with two 12-fiber splice trays, two cable routing clamps, 24 splice sleeves, one blank adapter panel and cable ties. Fiber adapter panels are sold separately.

Physical Characteristics
Color	Black (Powder Coat)
Material	Steel
Product Dimensions	19" W 12.5" L (overall) 11" L (not including front tray) 1U H
Rackmountable	Yes
Splice Sleeve Compatibility	FO-SS60-50
Compatible Adapter Panels
PP-FA604-6BK	Loaded Adapter Panel with 6x Simplex SC/UPC Singlemode - Black
PP-FA604A-6BK	Loaded Adapter Panel with 6x Simplex SC/APC Singlemode - Black
PP-FA504-6BK	Loaded Adapter Panel with 6x Simplex SC/PC Multimode - Black
PP-FA804-6BK	Loaded Adapter Panel with 6x Simplex SC/PC Multimode 10G - Black
PP-FA604-12BK	Loaded Adapter Panel with 12x Simplex SC/UPC Singlemode - Black
PP-FA604A-12BK	Loaded Adapter Panel with 12x Simplex SC/APC Singlemode - Black
PP-FA504-12BK	Loaded Adapter Panel with 12x Simplex SC/PC Multimode - Black
PP-FA804-12BK	Loaded Adapter Panel with 12x Simplex SC/PC Multimode 10G - Black
PP-FA204-6BK	Loaded Adapter Panel with 6 x Duplex SC/UPC Singlemode - Black
PP-FA204A-6BK	Loaded Adapter Panel with 6x Duplex LC/UPC Singlemode - Black
PP-FA104-6BK	Loaded Adapter Panel with 6 x Duplex SC/PC Multimode - Black
PP-FA404-6BK	Loaded Adapter Panel with 6x Duplex SC/PC Multimode 10G - Black
PP-FA204-12BK	Loaded Adapter Panel with 12 x Duplex SC/UPC Singlemode - Black
PP-FA204A-12BK	Loaded Adapter Panel with 12 x Duplex SC/APC Singlemode - Black
PP-FA104-12BK	Loaded Adapter Panel with 12 x Duplex SC/PC Multimode - Black
PP-FA404-12BK	Loaded Adapter Panel with 12 x Duplex SC/PC Multimode 10G - Black
PP-FA208-6BK	Loaded Adapter Panel with 6x Duplex LC/UPC Singlemode - Black
PP-FA208A-6BK	Loaded Adapter Panel with 6x Duplex LC/UPC Singlemode - Black
PP-FA108-6BK	Loaded Adapter Panel with 6x Duplex LC/PC Multimode - Black
PP-FA408-6BK	Loaded Adapter Panel with 6x Duplex LC/PC Multimode 10G - Black
PP-FA208-12BK	Loaded Adapter Panel with 12x Duplex LC/UPC Singlemode - Black
PP-FA208A-12BK	Loaded Adapter Panel with 12x Duplex LC/APC Singlemode - Black
PP-FA108-12BK	Loaded Adapter Panel with 12x Duplex LC/PC Multimode - Black
PP-FA408-12BK	Loaded Adapter Panel with 12x Duplex LC/PC Multimode 10G - Black
PP-FA200-6BK	Loaded Adapter Panel with 6x Simplex ST/UPC SM/MM - Black
PP-FA200-12BK	Loaded Adapter Panel with 12x Simplex ST/UPC SM/MM - Black
PP-FABNK-BK	Blank Adapter Panel - Black
Environmental
RoHS	Yes
Packaging Information
Package Quantity	1
Product Weight	9.0 lbs [4.1 kg]
Contents

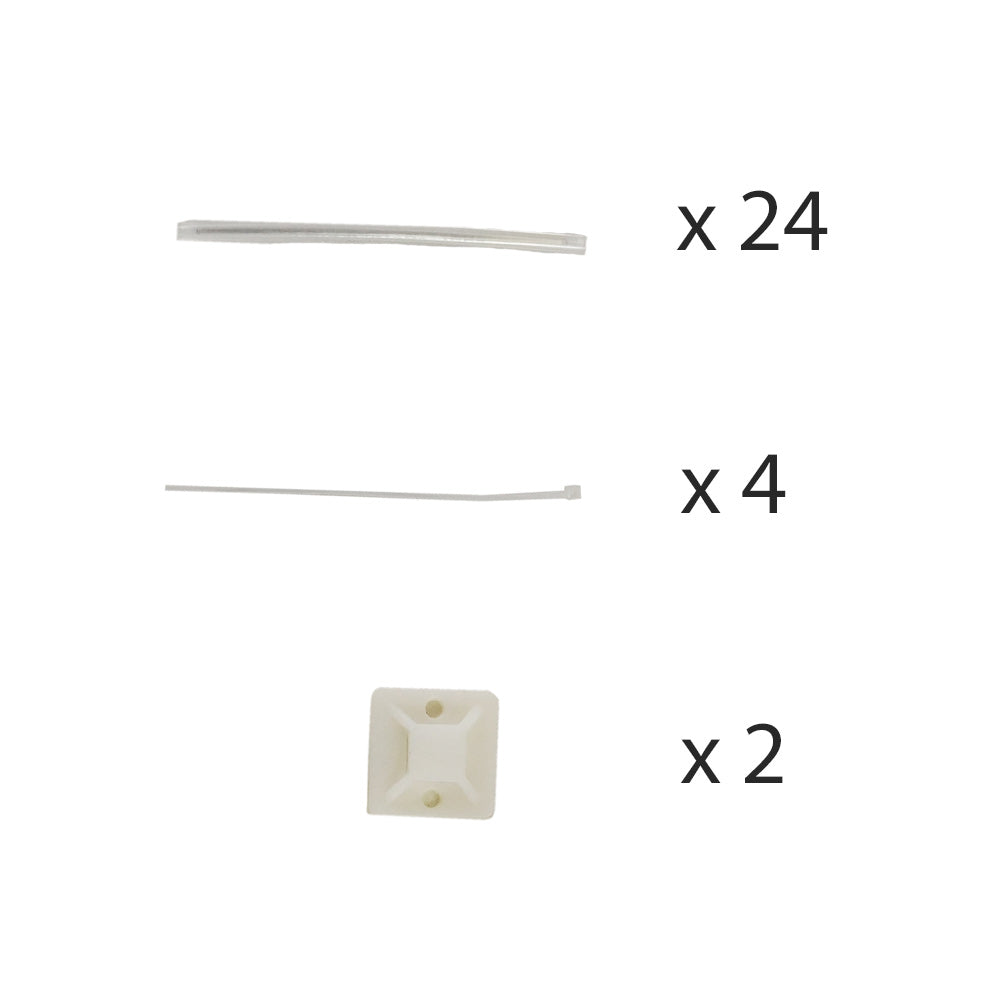

Included in Package	1 - Fiber Enclosure 2 - Cable Routing Clamps 2 - 12 Fiber Splice Trays 24 - Fiber Splice Sleeves 1 – Blank Adapter Panels 2 - Cable Tie Mounts 4 - Zip ties
Warranty Information
Warranty	Limited Lifetime
