1ft RCA + 3.5mm Male Disconnecting Adapter CL2/FT4
1ft RCA + 3.5mm Male Disconnecting Adapter CL2/FT4

1ft RCA Male + 3.5mm Male Disconnecting Adapter CL2/FT4

VGA CablesSKU: SVGAD-RCA
Price:
$8.78 USD $19.19 USD
Stock:
In stock

Description

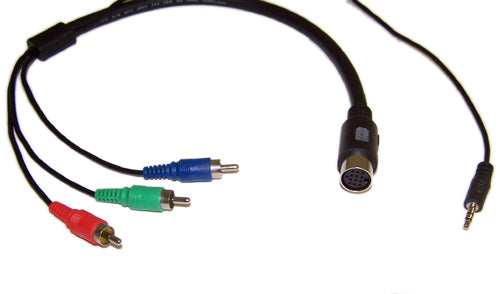

This disconnecting SVGA/UXGA adapter consists of 3 RCA male on one end, a 3.5mm male and a slim locking connector female on the other end. It is typically used to connect with the SVGAD-XX series of cables.

  • Constructed of a combination of 3 mini coax cables and 8 single conductors for optimal SVGA video quality
  • This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
  • Fully CL2/FT4 fire rated for in-wall use
Physical Characteristics
Cable Length 1 foot [0.31m]
Color Black
Connector Plating Nickel
Wire Gauge - Coax 3 - 28AWG Mini-Coax
Wire Gauge - Conductors 5 - 24AWG Pairs, 2 - 24AWG Conductors
Cable Diameter 9.0 mm
Shielding 85% Copper Braid, 100% Mylar Foil, Ferrite Cores
Jacket Fire Rating CL2/FT4
Jacket Material PVC
Strain Relief Molded PVC
Connector(s)
Connector A
 3 - RCA (Red,Green,Blue) Male
Connector B
 1 - Slim Line Connector Female
1 - 3.5mm Male
Performance
Resolution 1600 x 1200px
Impedance 75 ohm
Approvals
c(UL)us Approved Cable
Environmental
RoHS Yes
Reach Yes
Packaging Information
Package Quantity 1 - Cable
Product Weight 0.15 lbs [0.07kg]
Warranty Information
Warranty Limited Lifetime
SKU Weight
SVGAD-RCA 0.15 lb
