Description

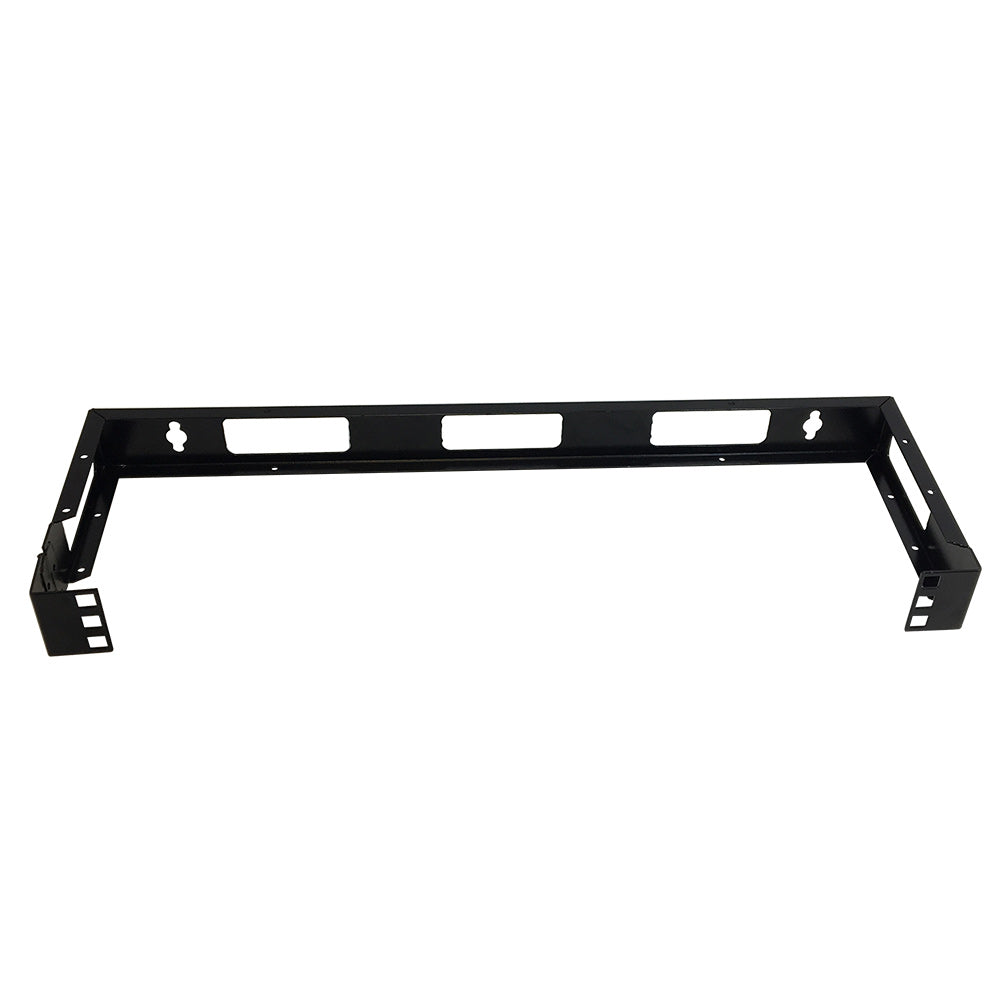

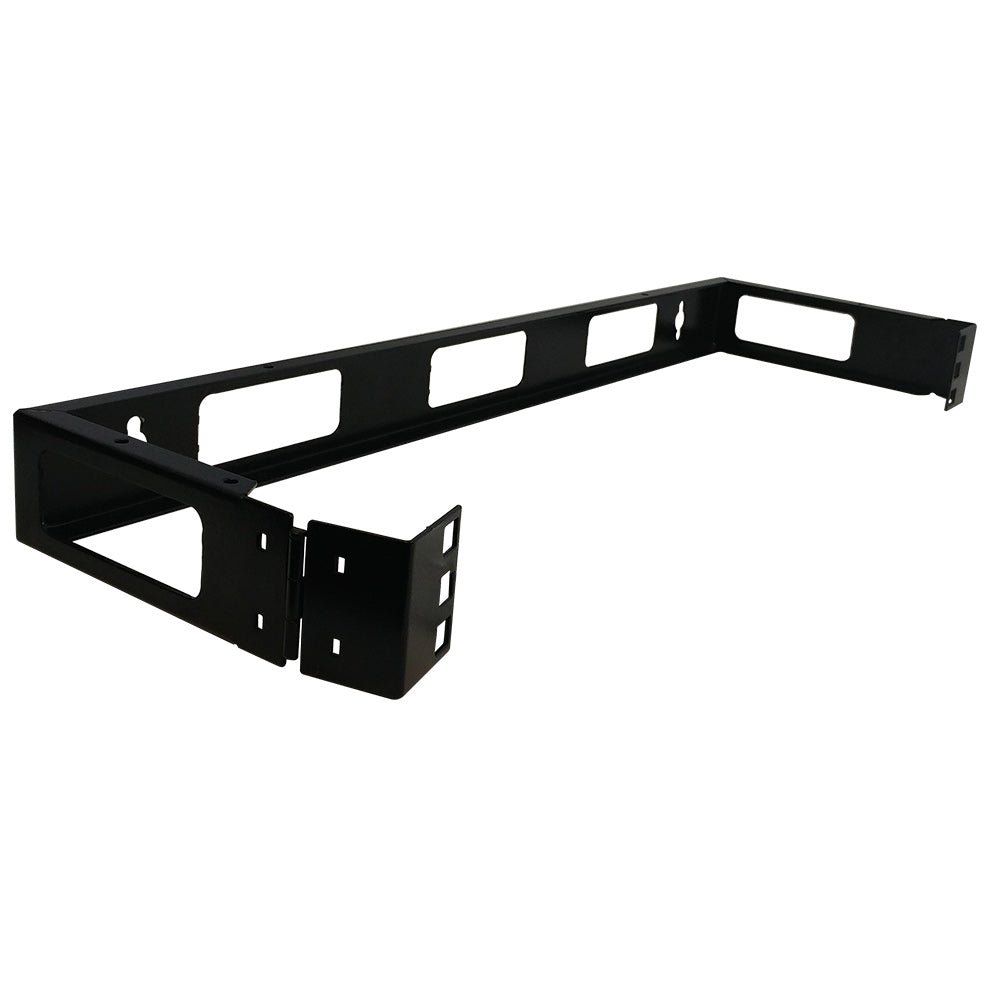

This wall mount bracket is 1U in height and 6 inches in depth. It is used to mount and organize shallow networking equipment such as a patch panel.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Coated |
| Material | 1.5mm Thick Steel |
| Height in units | 1U |
| Height in inches | 1.75 inches [4.5cm] |
| Mounting Depth | 6 Inches |
| Hinged | Compliant - For Easy Rear Access |
| Weight Capacity |
15kg |
| Mounting Hardware | Included |
| Approvals | |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 10 Sets - M6 Screws and Cage Nuts |
| Product Weight | 1.25 lbs [0.6kg] |
| Box Dimensions in Inches | 20 x 19 x 8 |
Spec Sheets
Product Weights
| SKU | Weight | |
| RM-200-1U | 1.25 lb |
