Description

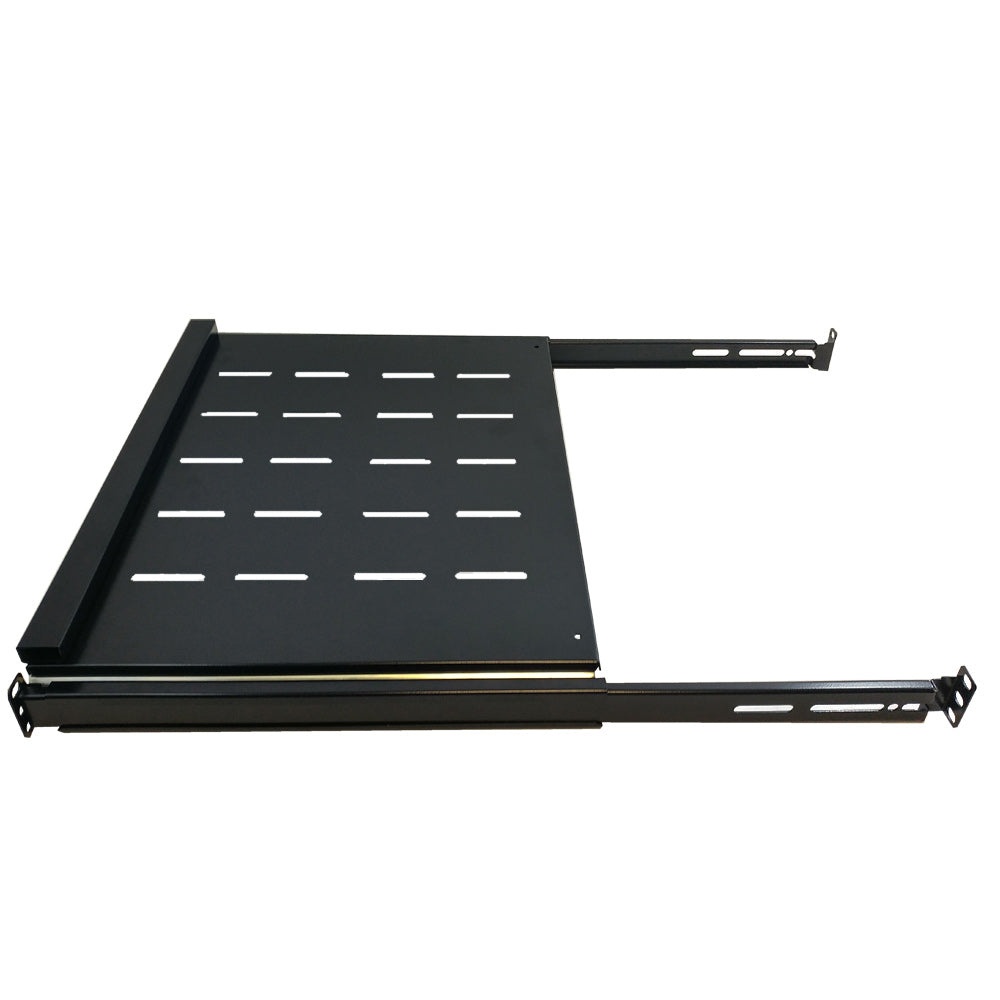

This sliding cabinet shelf is 1U in height and mounts on a standard 19" wide rack or cabinet with a depth of 24 inches to 31 inches. It is typically used to gain access to non-Rackmountable equipment in a server cabinet or 4-post rack.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Mounting Style |
Sliding Cabinet |
| Finish | Powder Coated |
| Material | 1.5mm Thick Steel |
| Height in Units | 1U |
| Height in Inches | 1.75 inches [4.5cm] |
| Shelf Depth | 13.75 inches [35cm] |
| Shelf Usable Depth | 12.75 inches [32.4cm] |
| Mounting Depth Range | 24inches to 31 inches |
| Capacity Weight | 30kg |
| Mounting Hardware | Included |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 Sets - M5 Screws and Cage Nuts |
| Product Weight | 10.0 lbs [4.5kg] |
| Box Dimensions in Inches | 24 x 22 x 3 |
Spec Sheets
Product Weights
| SKU | Weight | |
| RM-360 | 10.0 lb |
