Overview

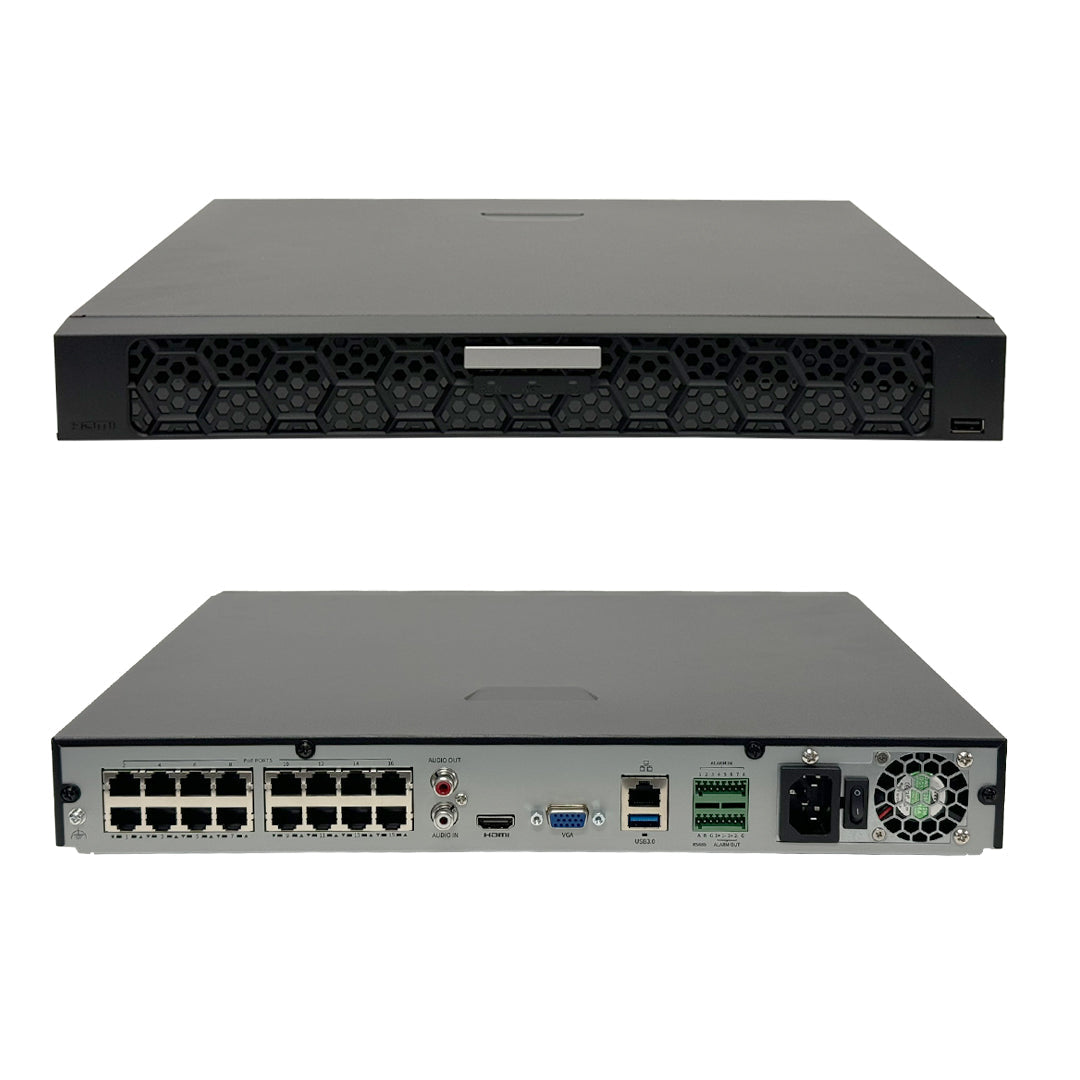

This 16 channel NVR is a network video recorder that can support up to 12MP IP cameras. It has 16 built in plug & play PoE ports to make set up simple and easy. With a space for two hard drives with capacity up to 16TB and can support Ultra 265/H.265/H.264 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports.
Features
- Support Ultra 265/H.265/H.264 video formats
- 16-channel input
- Plug & Play with 16 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- HDMI and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, up to 16TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web
interface and GUI - ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Application
Specifications
| Physical Characteristics | |
|---|---|
| Dimensions | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") (W×D×H) |
| Operating Temperature | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Power Supply | 100 ~ 240 V AC |
| Power Consumption | ≤20W (without HDD) |
| Video and Audio Input | |
| IP Video Input | 16-channel |
| Two-Way Audio Input | 1-channel, RCA |
| Video and Audio Output | |
| HDMI/VGA Output | HDMI: 4K (3840 x 2160)@30, 1920 x 1080p@60, 1920 x 1080p@50, 1600 x 1200@60, 1280 x 1024@60, 1280 x 720@60, 1024 x 768@60 VGA: 1920 x 1080p@60, 1920 xx 1080p@50, 1280 x 1024@60, 1280 x 720@60, 1024 x 768@60 |
| Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-channel, RCA |
| Two-way Audio | 1-ch, RCA(Using the audio input and output) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-channel |
| Liveview Display | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Network | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6 |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding Format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | Ultra 265/H.265: 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16TB for each disk |
| Smart | |
| VCA Detection By Camera | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera |
All-channel |
| General Alarm | |
| Network Interface | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm In | 8-channel |
| Alarm Out | 2-channel |
| RS232 | N/A |
| RS485 | 1 |
| PoE | |
| Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 240W in total |
| Supported Standard | IEEE 802.3af/at |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
| NDAA Compliant | Yes |
| Packaging Information | |

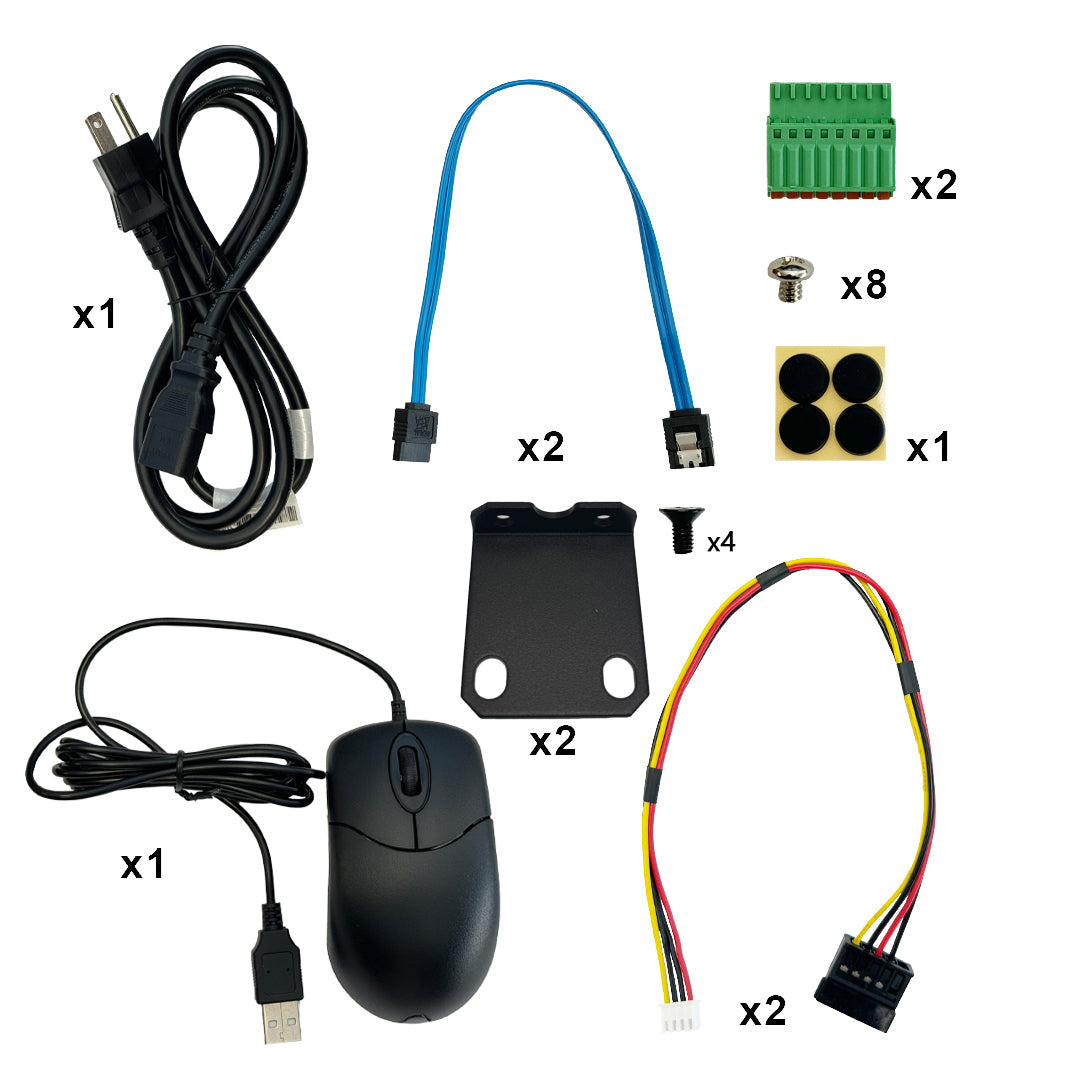

| Package Contents | 1 - NVR 2 - Hard Disk Data Cable 2 - Hard Disk Power Cable 1 - Power Cable 1 - Mouse 8 - Screws 1 - User Manual |
| Product Weight | 5.73 lbs [2.6 kg] |
This hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.
Features
- Engineered specifically for surveillance security systems
- Prioritized write-operations for maximized surveillance performance
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
- Reduced video frame loss
- TLER and ATA streaming support
- Optimized performance for up to 32 high-definition surveillance cameras
| Physical Characteristics | |||||||
|---|---|---|---|---|---|---|---|
| Form Factor | 3.5 inch | ||||||
| Dimensions | €¦ 5.7" x 4.0" x 1.0" (ˆ… 147 x 102 x 26mm) | ||||||
| Operating Temperature | 0°C to 65°C | ||||||
| Non-Operating Temperature | -40°C to 70°C | ||||||
| Performance | |||||||
| Formatted Capacity (Part Number) | 1TB (WD10PURX) | 2TB (WD20PURX) | 4TB (WD40PURX) | 6TB (WD62PURX) | 8TB (WD84PURZ) | 16TB (WD101PURP) | |
| Cache | 64MB | 128MB | 256MB | ||||
| Data Transfer Rate | Buffer to Host - 6 GB/s Host to/from drive (sustained) - 110 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 145 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 150 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 175 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 245 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 265 MB/s |
|
| Hard Disk Interface | SATA | ||||||
| Rotational Speed (RPM) | IntelliPowerTM | ||||||
| Load/Unload Cycles | 300,000 | 600,000 | |||||
| Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | < 1 in 1015 | |||||
| Power Management | |||||||
| Average Power Requirements | Read/Write - 3.3W Idle - 2.9W Standby and Sleep - 0.4W |
Read/Write - 4.4W Idle - 4.1W Standby and Sleep - 0.4W |
Read/Write - 5.1W Idle - 4.5W Standby and Sleep - 0.4W |
Read/Write - 5.3W Idle - 4.9W Standby and Sleep - 0.4W |
Read/Write - 8.6W Idle - 7.4W Standby and Sleep - 0.4W |
Read/Write - 9W Idle - 8W Standby and Sleep - 0.5W |
|
| Approvals | |||||||
| RoHS | Yes | ||||||
| Packaging Information | |||||||
| Package Quantity | 1 | ||||||
| Product Weight | 0.99 lbs [0.45 kg] | 1.40 lbs [0.64 kg] | 1.50 lbs [0.68 kg] | 1.65 lbs [0.75 kg] | 1.58 lbs [0.72 kg] | 1.65 lbs [0.75 kg] | |
