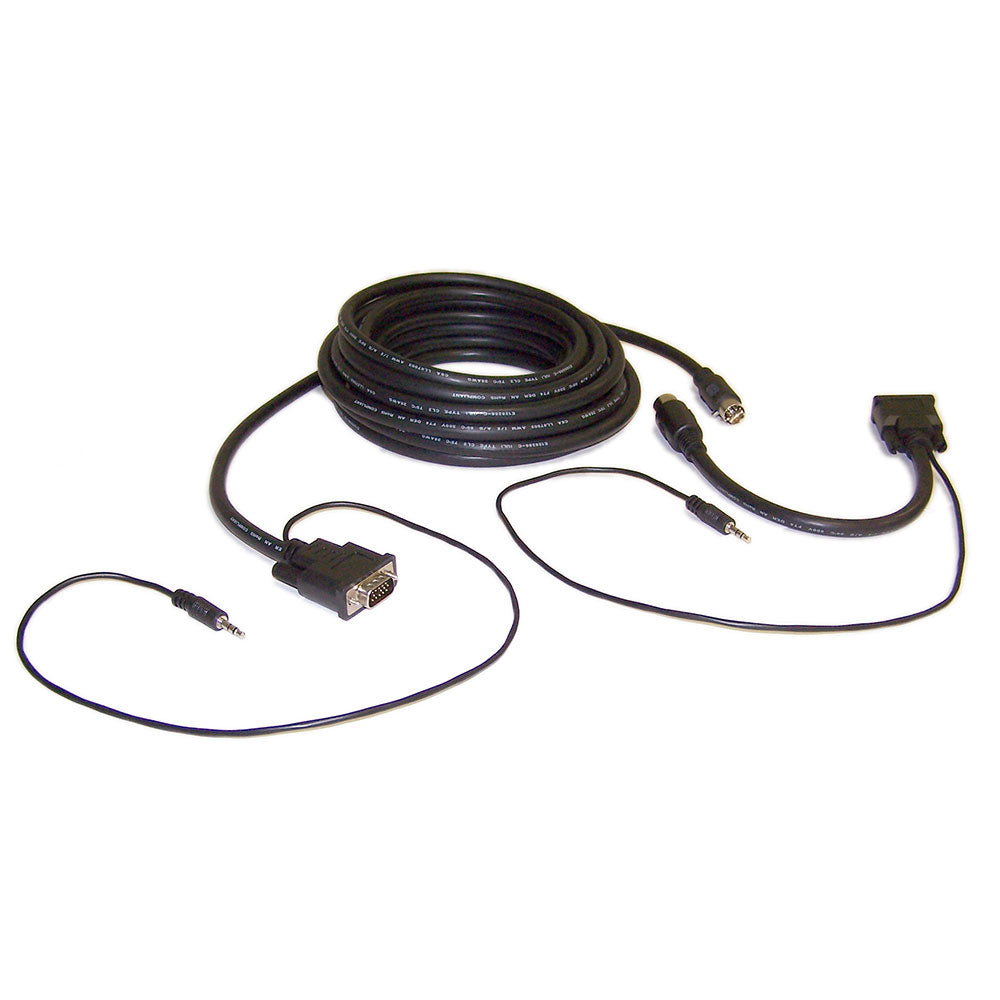

This disconnecting SVGA cable consists of a HD15 male and 3.5mm stereo male on both ends. It also features a slim locking connector which allows one end of the cable to be disconnected so that it can be run behind walls or through conduit (1 inch minimum diameter). It eliminates the need for onsite cable termination which simplifies and speeds up the installation time. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as VGA monitors.
| Physical Characteristics | |
|---|---|
| Cable Length | 150 foot [45.7m] |
| Color | Black |
| Connector Plating | Nickel |
| Wire Gauge - Coax | 3 - 28AWG Mini-Coax |
| Wire Gauge - Conductors | 4.5 - 24AWG Pairs |
| Wire Gauge - Audio | 2 - 28AWG Conductors |
| Cable Diameter | 8.8 mm |
| Shielding | 85% Aluminum Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Long Cable End | 1 - SVGA HD15 Male 1 - 3.5mm Stereo Male 1 - Locking DIN 13P Male (3/4 inch diameter) |
| Short Cable End | 1 - SVGA HD15 Male 1 - 3.5mm Stereo Male 1 - Locking DIN 13P Female (3/4 inch diameter) |
| Performance | |
| Resolution | 1600 x 1200px |
| Impedance | 75 ohm |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 8.1 lbs [3.7kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
| SKU | Weight | |
| SVGAD-150 | 8.1 lb |
