Overview

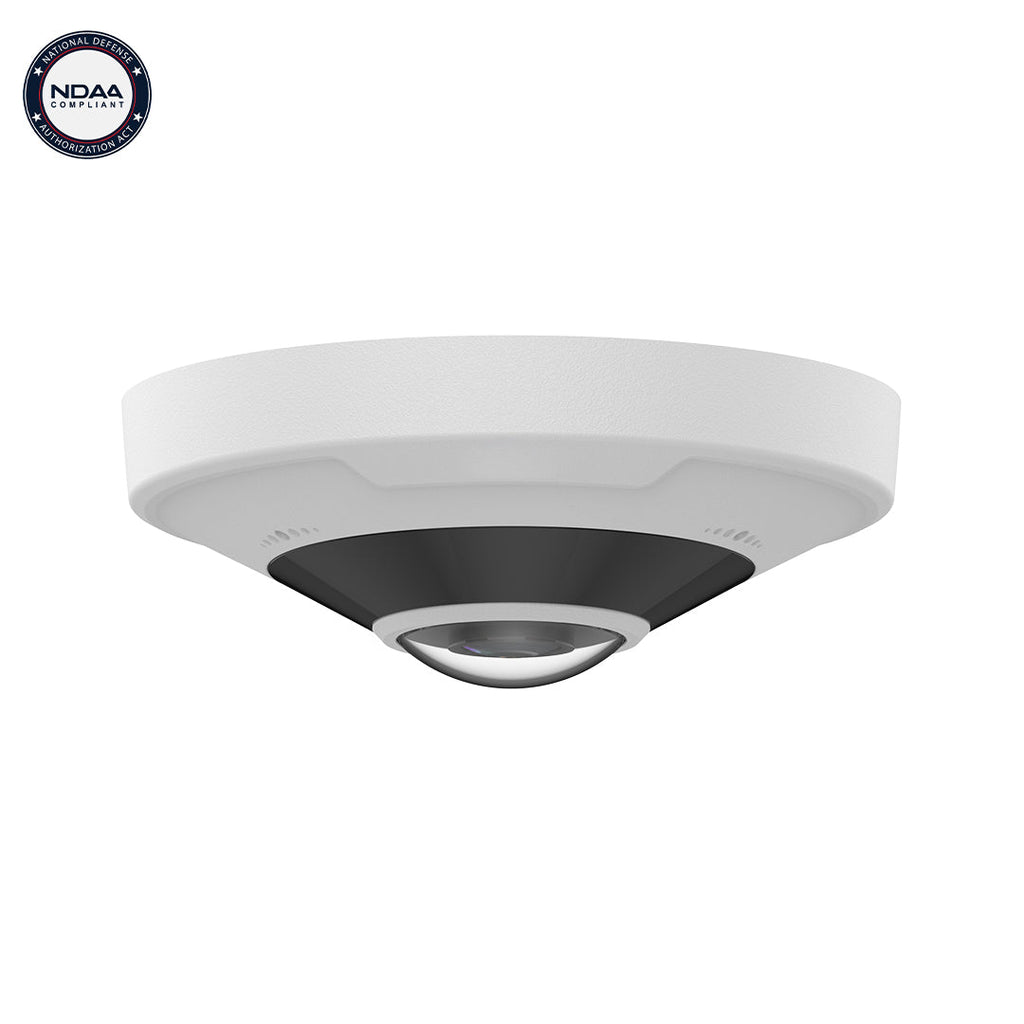

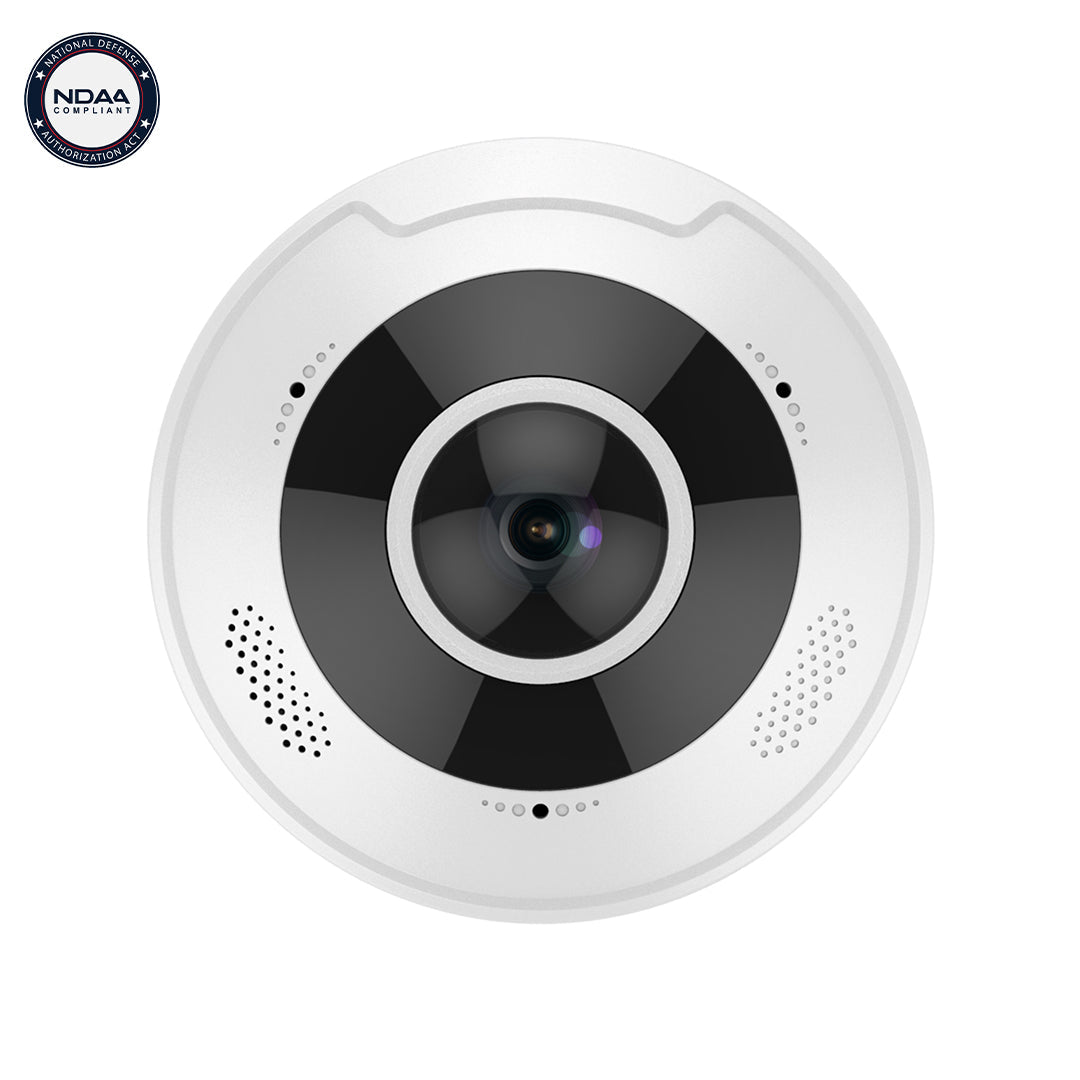

This 12MP fisheye IP based camera provides sharp, high definition images in daylight or night time settings. The camera has a 1.8mm ultra wide-angle fixed lens which provides 360 degree panoramic image. Its maximum resolution is 4000 x 3000 at 20 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. It offers a 49.2ft (15m) IR range which provides well lit images in low light conditions using embedded infrared light and 360° fill-in light. It also features motion detection, audio detection and a tampering alarm.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/1.7" (12MP) CMOS |
| Minimum Illumination | Color: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| S/N | >52dB |
| WDR | DWDR |
| Lens | |
| Lens Type | 1.8mm @ F2.0 |
| Angle of View | 360° |
| DORI | |
| DORI Distance | 1.8mm Lens, 43.8m Detect, 17.5m Observe, 8.8m Recognize, 4.4m Identify |
| Illuminator | |
| IR Range | Up to 15m (49.3ft) IR Range |
| Supplemental Light | IR |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main Profile, High Profile |
| Frame Rate |
Main Stream: Fisheye View: 12 MP (4000 × 3000)@20 fps; 3000 × 3000@20 fps; 2560 × 2560@25 fps; Panorama View: 12 MP (4000 × 3000)@20 fps; 3000 × 2000@20/25 fps; 3000 × 1500@20/25 fps; PTZ View: 1920 × 1080@20/25 fps Sub Stream: Fisheye View: 2000 × 1500@20 fps; 2000 × 2000@25 fps Third Stream: Fisheye View: D1 (720 × 576)@20/25 fps; CIF (352 × 288)@20/25 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Supported |
| Video Stream | Triple streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | Supported |
| Defog | Digital Defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection |
| Statistical Analysis | Heat map (Working with management platform) |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio Detection |
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-Way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHz |
| Storage | |
| Edge Storage | Micro SD, up to 512GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols |
IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | Phantom CamStation Phantom CamView |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Live View Display | |
| Hardware Decoding |
Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view |
| Software Decoding |
Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ |
| Interface | |
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| Built-In Mic | Built-in dual-mic |
| Built-In Speaker | Supported |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω, amplitude 1 V [p-p] |
| Certification | |
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety |
CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| NDAA Compliant | Compliant |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC12V(±25%), PoE (IEEE 802.3af) Power consumption: MAX 12.0W |
| Power Interface | Ø 5.5mm coaxial power plug |

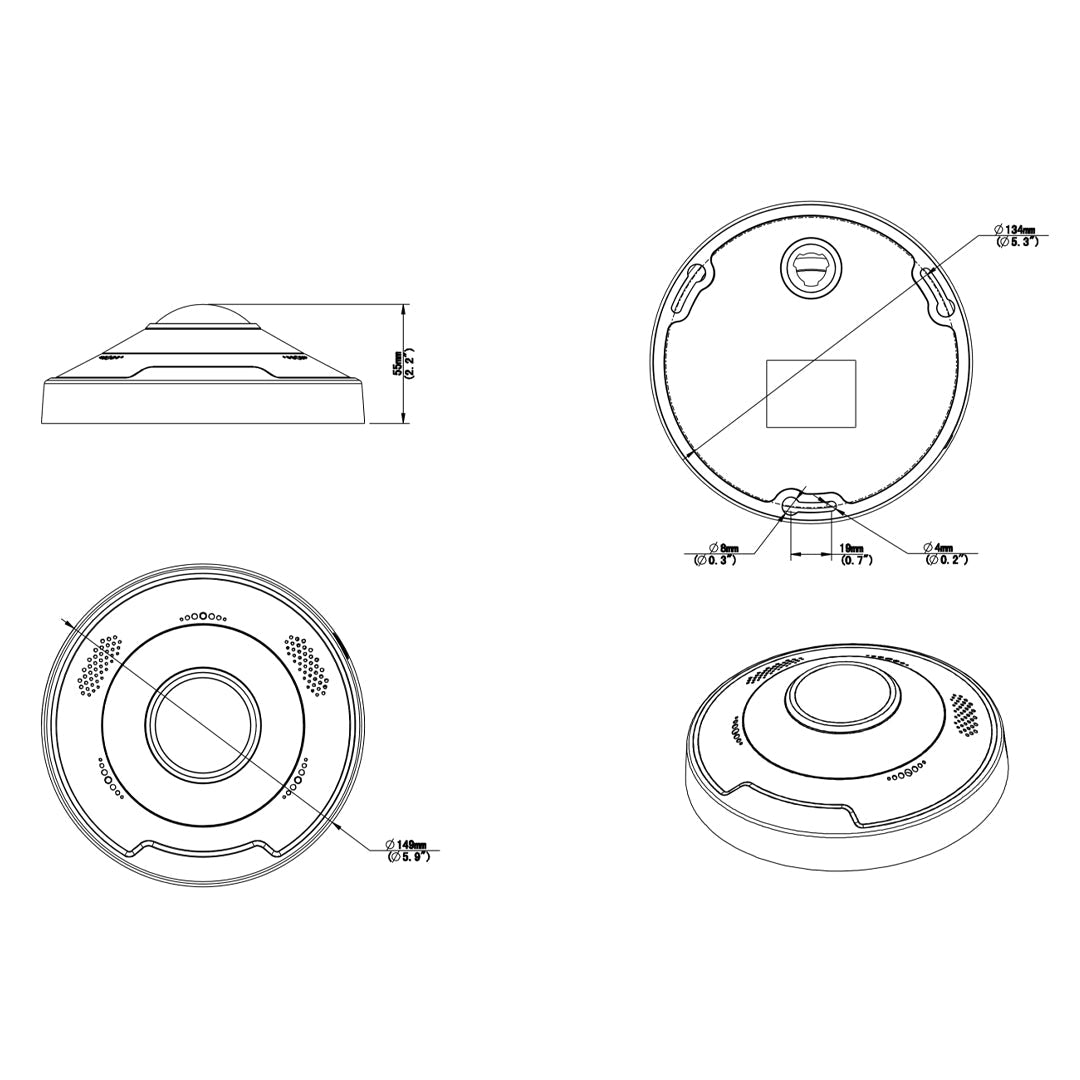

| Dimensions (Ø x H) |
Ø149 mm × 55 mm (Ø5.9" × 2.2") (Ø × H) |
| Weight | 0.524kg (1.16lb) |
| Material | Metal + Plastic |
| Working /Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Supported |
