Description

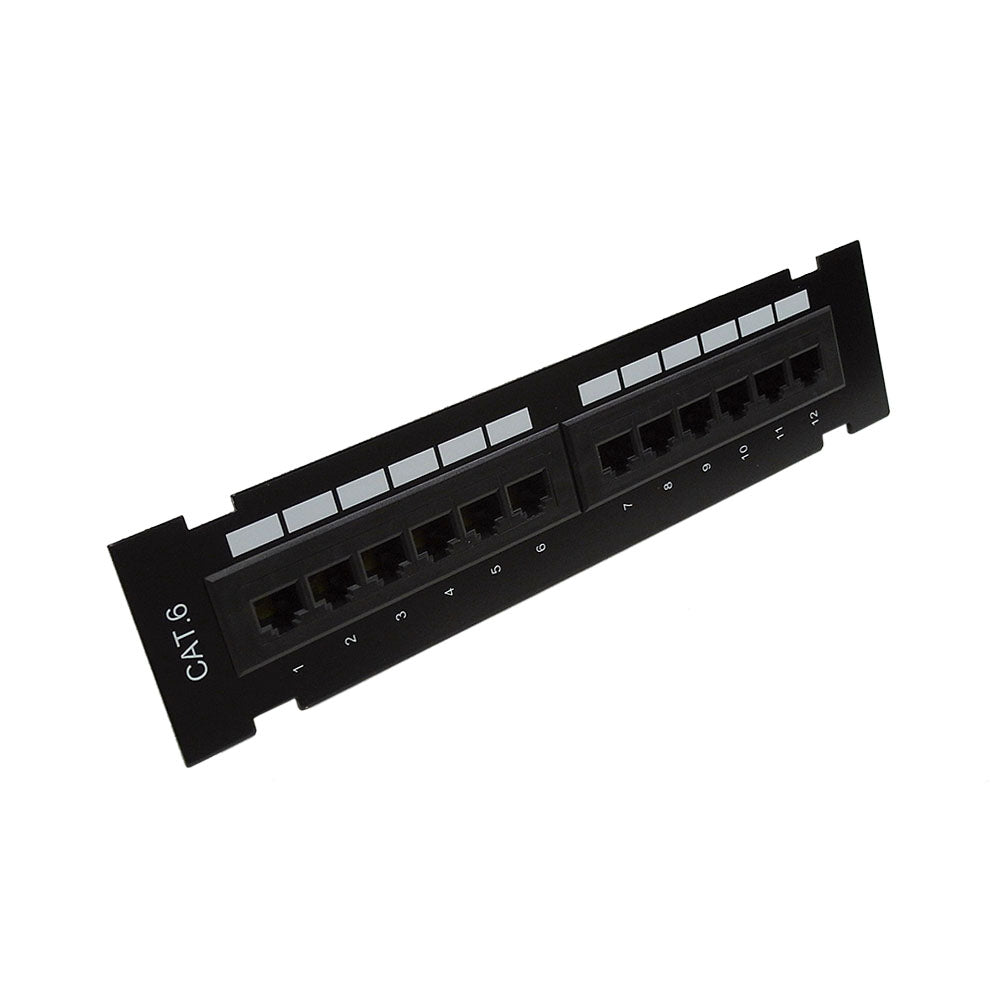

This 12 port Cat6 self mount patch panel has RJ45 female ports on the front and 110 punch-down style terminals on the rear. It is meant to be mounted on a wall and provides an easy method to terminate raw Cat5e and Cat6 runs.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Type | Cat5e or Cat6 |
| Color Code | 568A or 568B |
| Ports | 12 |
| Product Dimensions | 12" W x 1.75" H [30 cm W x 4.45 cm H] |
| Rackmountable | No, Meant to be Wall Mounted |
| Connectors | |

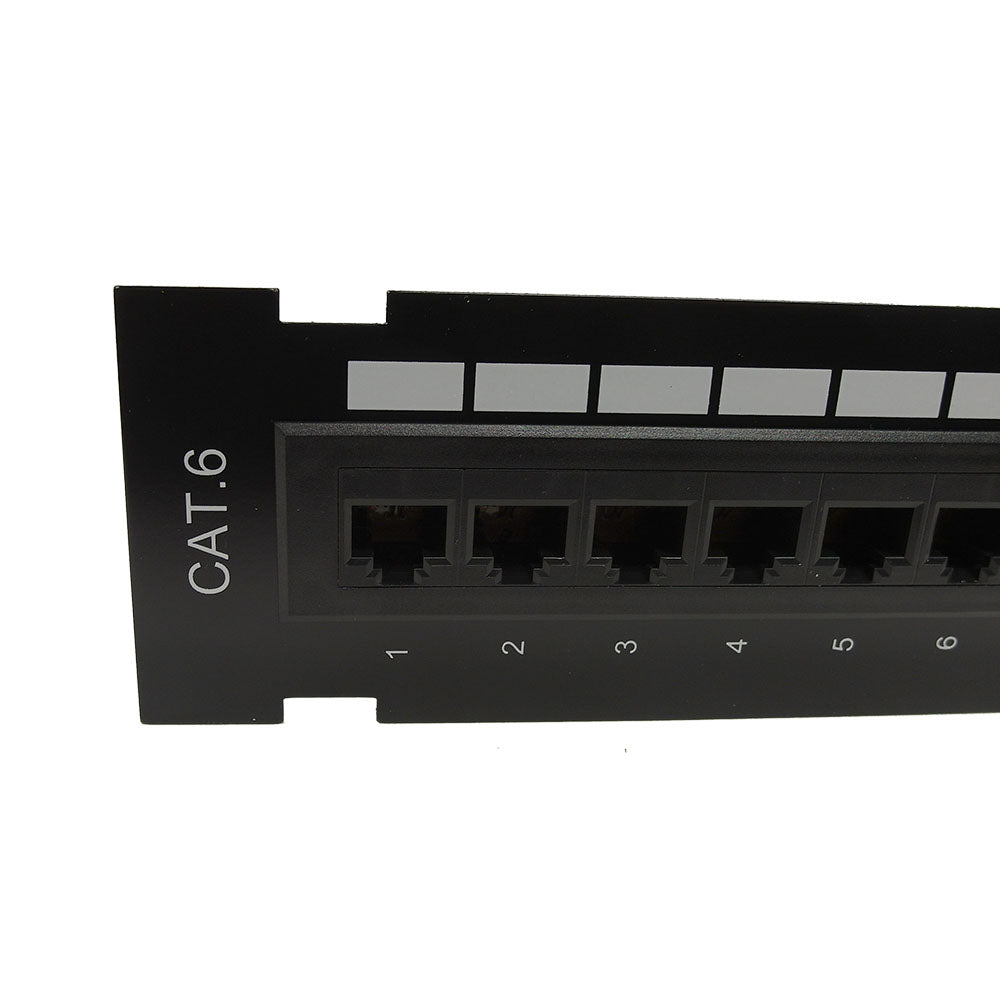

| Front | 12 - RJ45 CAT6 Female |

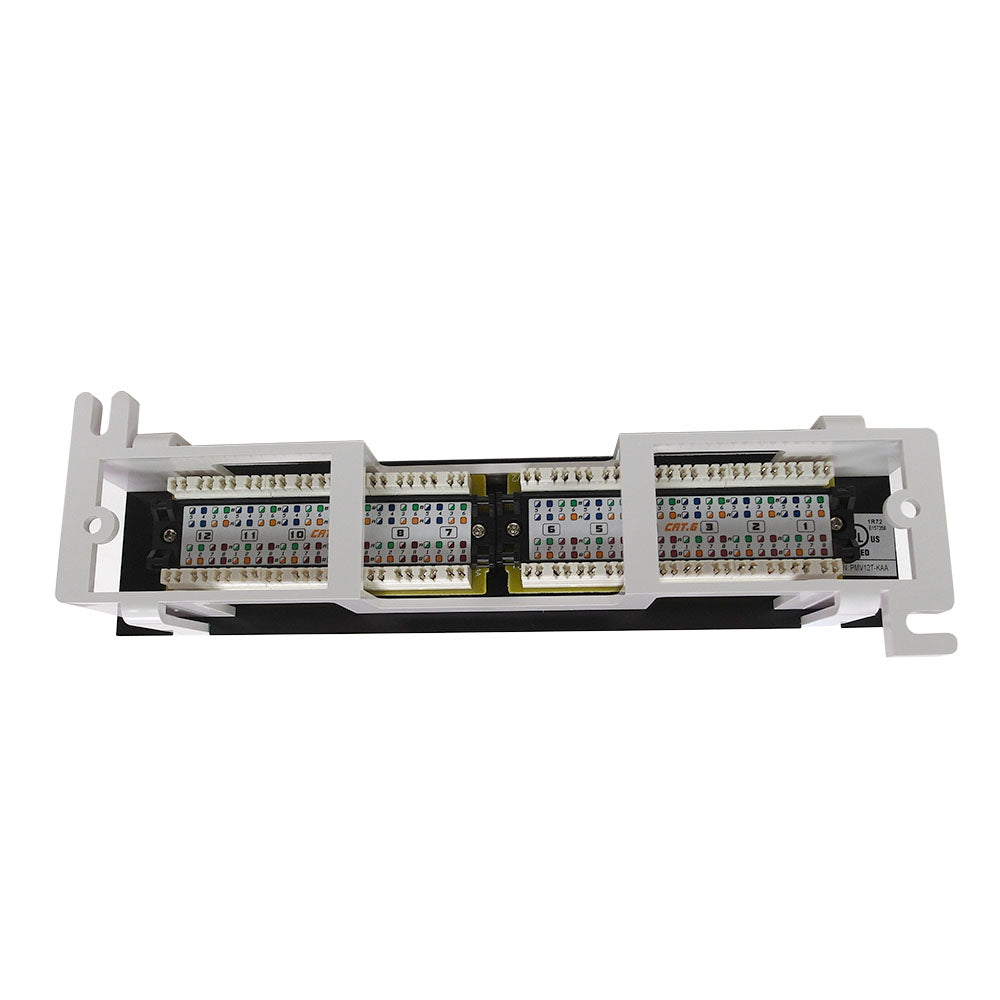

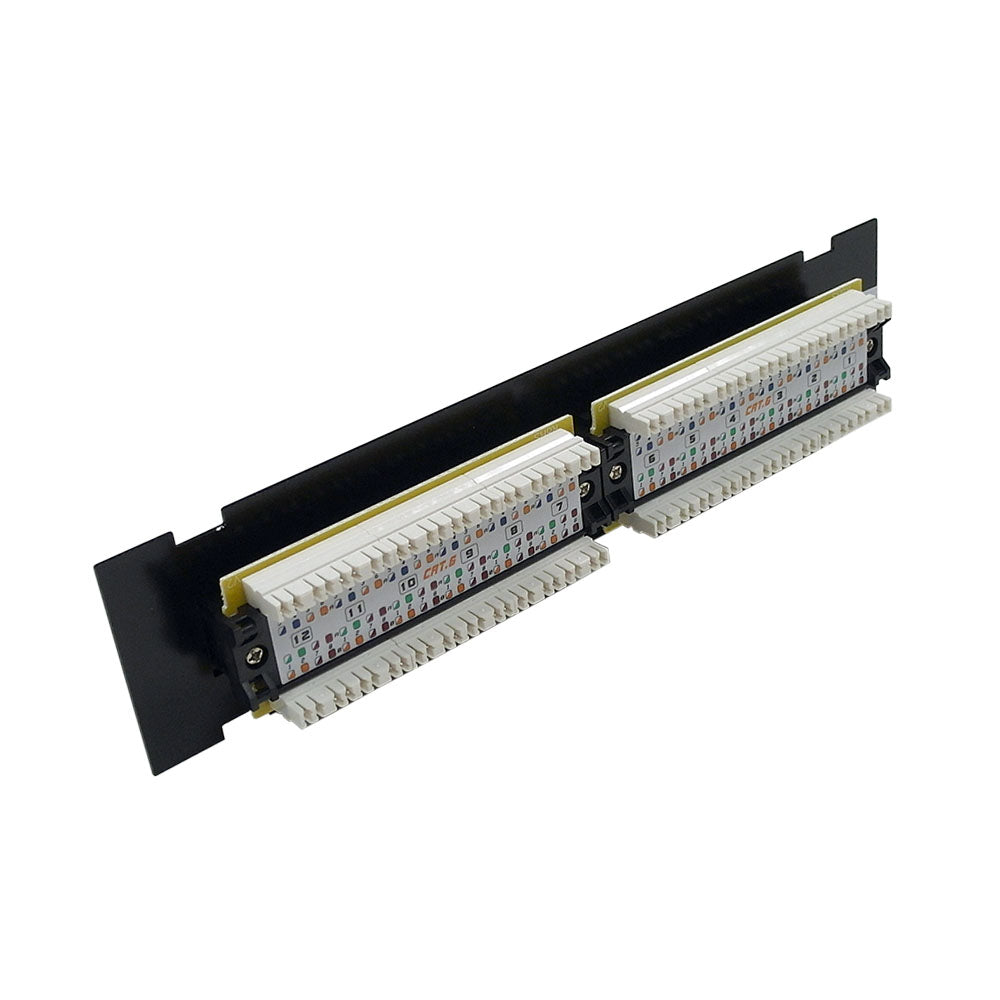

| Rear | 12 x 4 Pair - 110 Style Punch-Down Terminations |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 - Patch Panel 2 - Screws 1 - Wall Mount Clip |
| Product Weight | 0.75 lbs [0.34 kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| PP-12C6-SM | 0.75 lb |
