Description

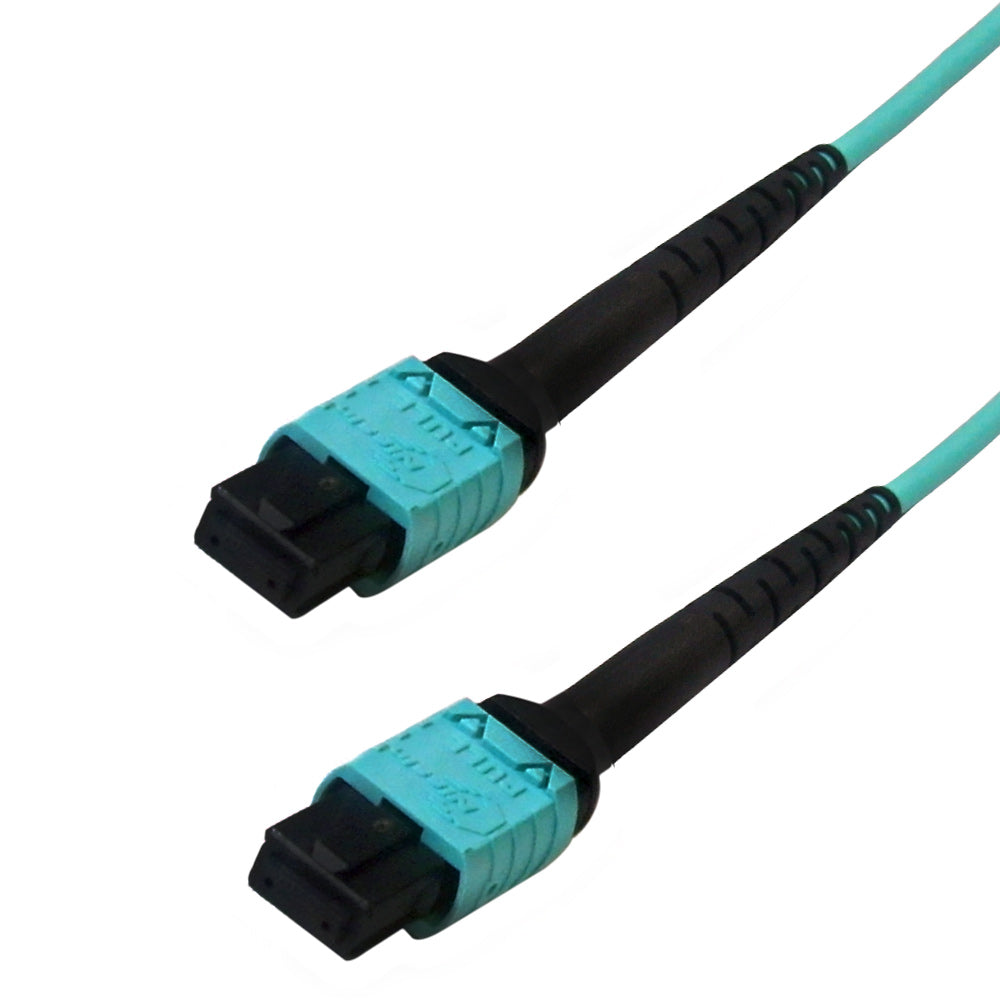

This multimode OM4 fiber optic MPO trunk cable is made with Corning glass fiber and consists of a MPO/MTP female connector on both ends. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.Ā Ā
MPO Polarity, Method A vs. Method B
MPO/MTP cables can be conpd in a number of different polarities, method A, method B or method C.
Method A would be considered straight through, position 1-1, 2-2, 3-3 etc.
Method B is considered cross over, position 1-12, 2-11, 3-10 etc.
Method C would be the least common and is considered a paired cross over, position 1-2, 2-1, 3-4, 4-3 etc.
Infinite Cables stocks method A and method B cables. Method C cables are available by special order. The diagrams below further highlight method A and method B polarities.
Method A
Method B
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Cable Diameter | 3mm |
| Fiber Count | 12 Fibers |
| Fiber Type | Multimode OM4 50/125 Micron |
| Polarity | Method A / Method B |
| Glass Manufacturer | Corning GlassĀ ClearCurve OM4 |
| Jacket Rating | Plenum (OFNP) |
| Temperature Range | 0 ā 60Ā°C |
| Connector(s) | |
| Connector A | 1 - 12-Position MPO Female (no guide pins) Elite Connectors |
| Connector B | 1 - 12-Position MPO/PC Female (no guide pins) Elite Connectors |
| Performance | |
| Insertion Loss | ā¤0.35 dB |
| Return Loss | ā„20db |
| Testing | 100% IL, RL and Interferometer Tested |
| Environmental | |
| RoHS | Yes |
| UL | UL Listed Cable |
| Packaging Information | |
| Warranty | Limited Lifetime |
| 3ft - 1m | 6ft - 2m | 10ft - 3m | 15ft - 5m | 23ft - 7m | 30ft - 10m | 50ft - 15m | 65ft - 20m | 80ft - 25m | 100ft - 30m | 115ft - 35m | 131ft - 40m | 148ft - 45m | 164ft - 50m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.04 lbs | 0.07 lbs | 0.09 lbs | 0.13 lbs | 0.18 lbs | 0.23 lbs | 0.35 lbs | 0.47 lbs | 0.56 lbs | 0.66 lbs | 0.76 lbs | 0.86 lbs | 0.98 lbs | 1.08 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| FO-1410A-03P | 1m / Method A Polarity | 0.07 lb |
| FO-1410B-03P | 1m / Method B Polarity | 0.07 lb |
| FO-1410A-06P | 2m / Method A Polarity | 0.1 lb |
| FO-1410B-06P | 2m / Method B Polarity | 0.1 lb |
| FO-1410A-10P | 3m / Method A Polarity | 0.15 lb |
| FO-1410B-10P | 3m / Method B Polarity | 0.15 lb |
| FO-1410A-15P | 5m / Method A Polarity | 0.2 lb |
| FO-1410B-15P | 5m / Method B Polarity | 0.2 lb |
| FO-1410A-23P | 7m / Method A Polarity | 0.24 lb |
| FO-1410B-23P | 7m / Method B Polarity | 0.24 lb |
| FO-1410A-33P | 10m / Method A Polarity | 0.33 lb |
| FO-1410B-33P | 10m / Method B Polarity | 0.33 lb |
| FO-1410A-50P | 15m / Method A Polarity | 0.5 lb |
| FO-1410B-50P | 15m / Method B Polarity | 0.5 lb |
| FO-1410A-65P | 20m / Method A Polarity | 0.63 lb |
| FO-1410B-65P | 20m / Method B Polarity | 0.63 lb |
| FO-1410A-80P | 25m / Method A Polarity | 0.77 lb |
| FO-1410B-80P | 25m / Method B Polarity | 0.77 lb |
| FO-1410A-100P | 30m / Method A Polarity | 0.95 lb |
| FO-1410B-100P | 30m / Method B Polarity | 0.95 lb |
| FO-1410A-115P | 35m / Method A Polarity | 1.1 lb |
| FO-1410B-115P | 35m / Method B Polarity | 1.1 lb |
| FO-1410A-131P | 40m / Method A Polarity | 1.33 lb |
| FO-1410B-131P | 40m / Method B Polarity | 1.33 lb |
| FO-1410A-148P | 45m / Method A Polarity | 1.4 lb |
| FO-1410B-148P | 45m / Method B Polarity | 1.4 lb |
| FO-1410A-164P | 50m / Method A Polarity | 1.55 lb |
| FO-1410B-164P | 50m / Method B Polarity | 1.55 lb |
