Description

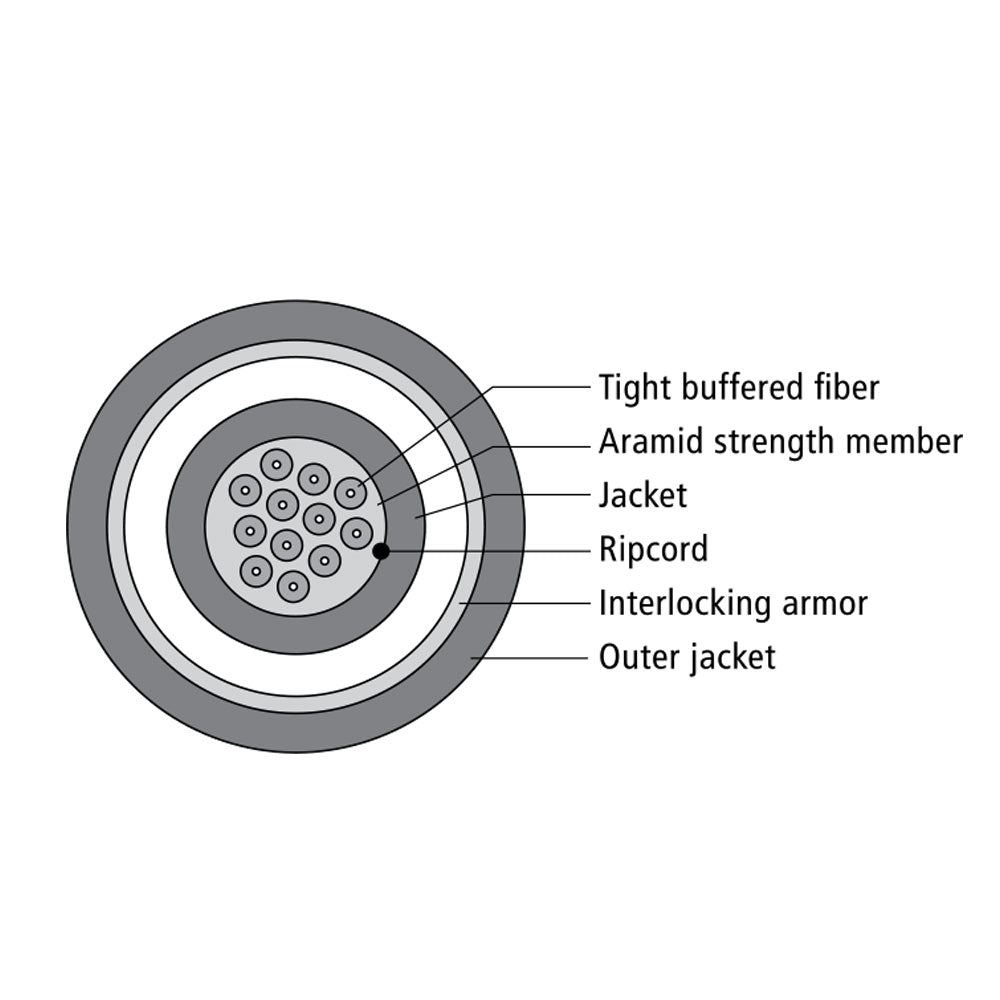

This bulk 12-strand OM1 armored fiber cable is plenum rated and has a tight buffer construction. It is OFCP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.
Features
- Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required.
- Extra protection for fiber optic cables in harsh industrial environments.
- Approved for use in manufacturing plants.
- High-density routings in data center application.
| Physical Characteristics | |
|---|---|
| Color | Orange |
| Fiber Optic Type | OM1 62.5 micron multimode Plenum Armored Tight Buffered Cable |
| Fiber Count | 12-Strand |
| Glass Fiber | Corning InfiniCor |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 14.7mm |
| Bending Radius | 29.4cm |
| Operating Temperature | -0℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Attenuation Range | @850nm 3.5dB/km @1300nm 1.5dB/km |
| Link Length | 300m (1Gb/s@850nm) |
| 10 Gigabit Ethernet Min. Link Distance | 220MHz.km @850nm |
| Fire Rating | OFCP |
| Certification(s) | |
| c(UL)us | Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USA |
| Packaging Information | |
| Product Weight | 0.43 lb/m |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-F12A-OM1-P | 0.43 lb |
