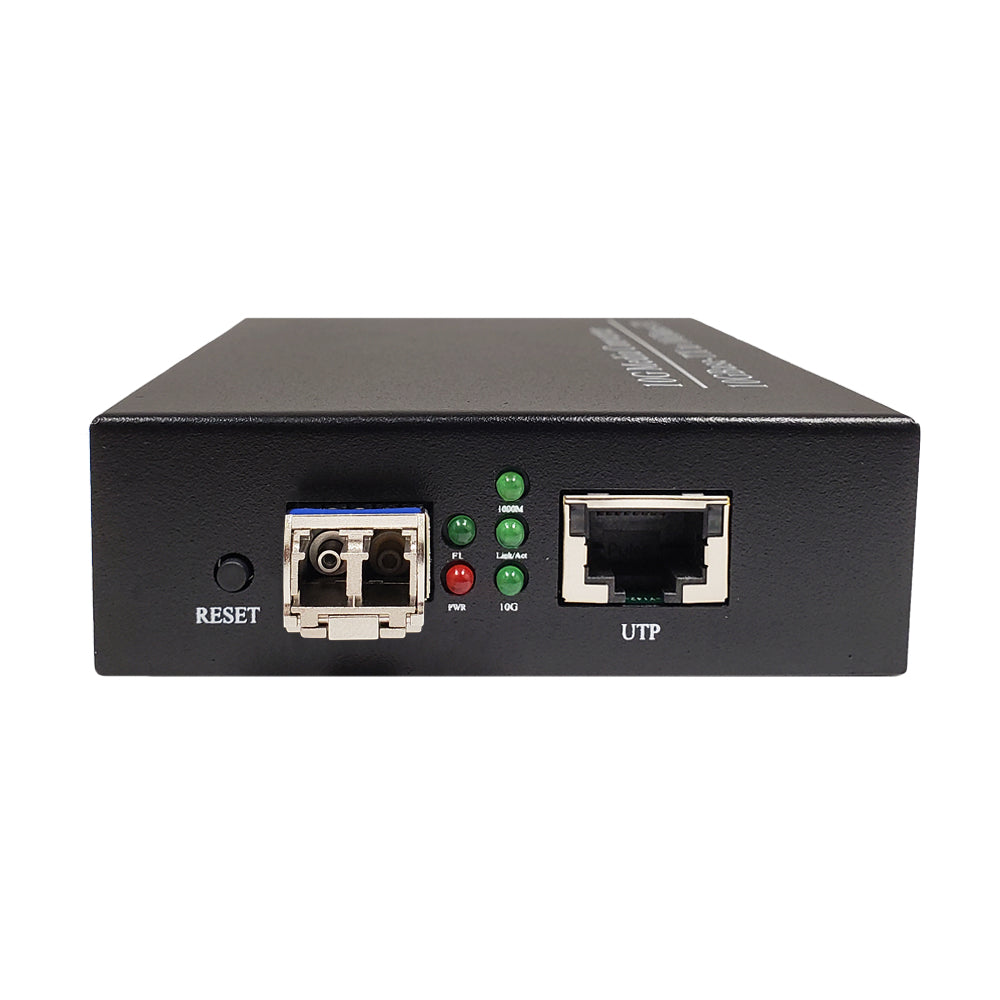

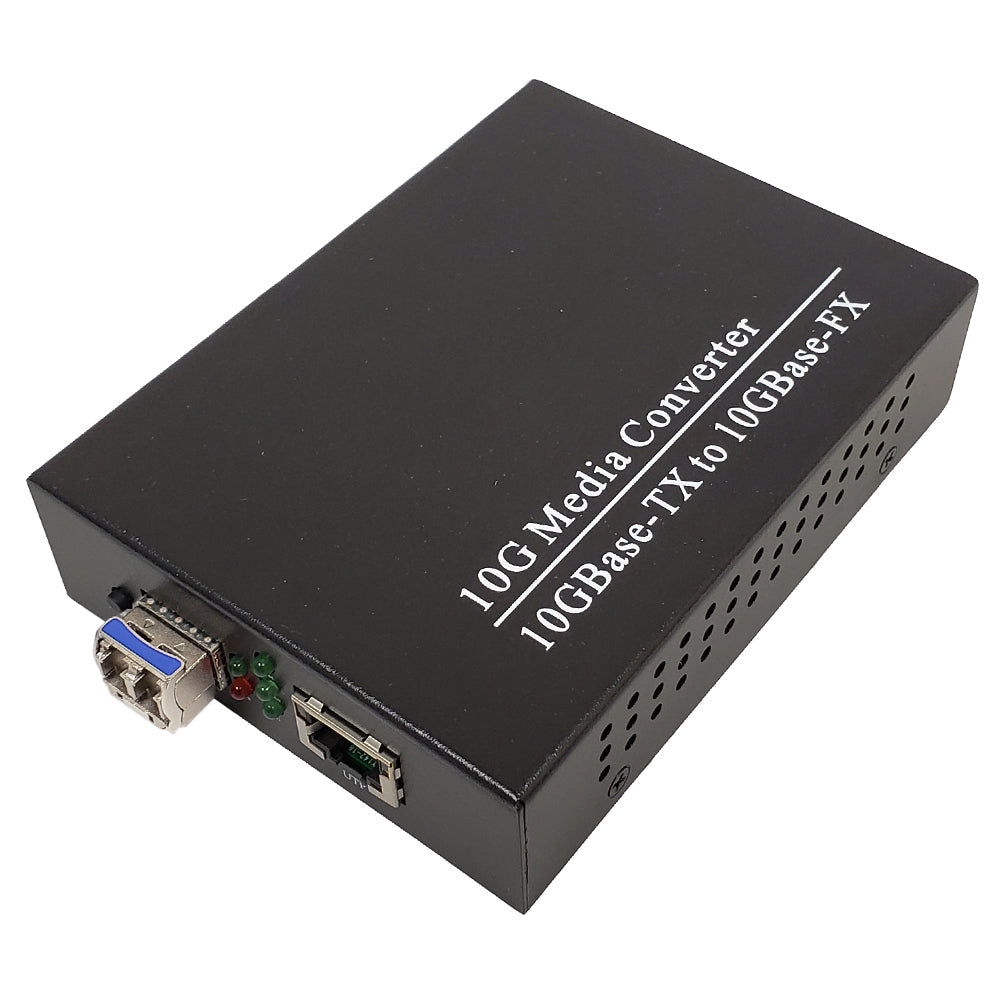

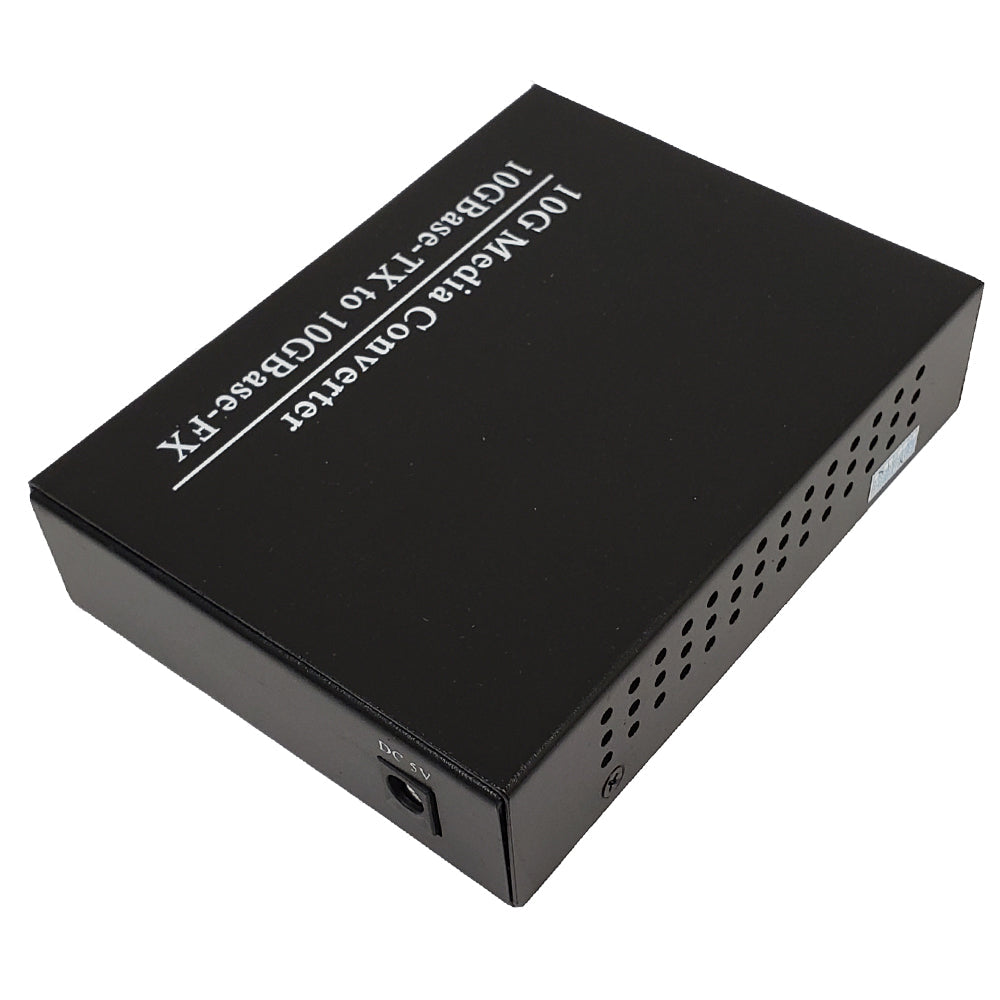

This singlemode fiber optic media converter can extend a 10G Ethernet connection up to 10km over a singlemode LC fiber optic cable. The converter can be used as a standalone unit or in pairs.
Features
-
One10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
- One10GBASE-X SFP+ slot interface
- IEEE802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
- Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- 16K jumbo frame size support
- Automatic address learning and address aging
- External 12VDC, 1A power supply
- Desktop design
- Supports6000 VDC Ethernet ESD protection
- 100 meters over Cat 6A / Cat7 at 10Gbps
- 0 to 50degrees C operating temperature
- Co-works with 19" Media Converter Chassis
- Plug and Play installation
|
Physical Characteristics
|
| Color |
Black |
| Dimensions |
118mm x 86mm x 27mm (L x W x H) |
| Housing |
Metal |
| Operating Temperature |
0Ā°C ~ 50Ā°C |
| Relative Humidity |
5% to 95% (non-condensation) |
| Standards |
IEEE 802.3u100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10Gbps Ethernet
IEEE 802.3x full-duplex flow control
|
|
Power
|
| Power Supply |
12V DC, 1A Power Supply |
| Power Consumption |
3.75 watts / 12.8 BTU per hour max. |
|
Connectors
|
| Fiber Connector |
LC |
| Ethernet Connector |
RJ45 UTP |
|
Performance
|
| Network Cables |
10G/5G/2.5G/1G/100MBASE-T:
-10G--Cat6a/7
-5G--Cat6/6a/7
-1G/2.5G--Cat5e/6/6a/7
-100M--Cat5/5e/6/6a/7
-Cat5/5e/6/6a/7 UTP cable (100 meters, max.)
-EIA/TIA-568 100-ohm STP (100 meters, max.)
10GBASE-LR/SR/BX:
-50/125?m or 62.5/125?m multi-mode fiber optic cable, up to 300m
-9/125?m single-mode fiber optic cable, up to 80km
|
| Referenced Transmission Distance |
Singlemode - 10km
|
| Data Forward Rate |
10G |
| Features |
High Performance 10Gbps Ethernet Capacity
Robust Protection
Low Power Consumption |
| Switch Processing |
Store and Forward |
| ESD Protection |
6KV DC |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| Fabric |
20Gbps |
| Throughput (packet per second) |
2.48Mpps@64bytes |
| Address Table |
9K entries, automatic source address learning and aging |
| Jumbo Frame |
16K |
| Copper Interface |
1 x 10G/5G/2.5G/1G/100BASE-T RJ45
Auto-MDI/MDI-X, auto-negotiation |
| Fiber Optic Interface |
1 x 10GBASE-X R SFP+ interface |
| LED |
POWER
100M
1000M
10G
LINK/ACT
Fiber |
|
Certifications
|
| CE |
Yes |
| FCC Part 15 Class A |
Yes |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
1.7 lbs [0.8kg] |
|
Warranty Information
|
| Warranty |
2 Years |
