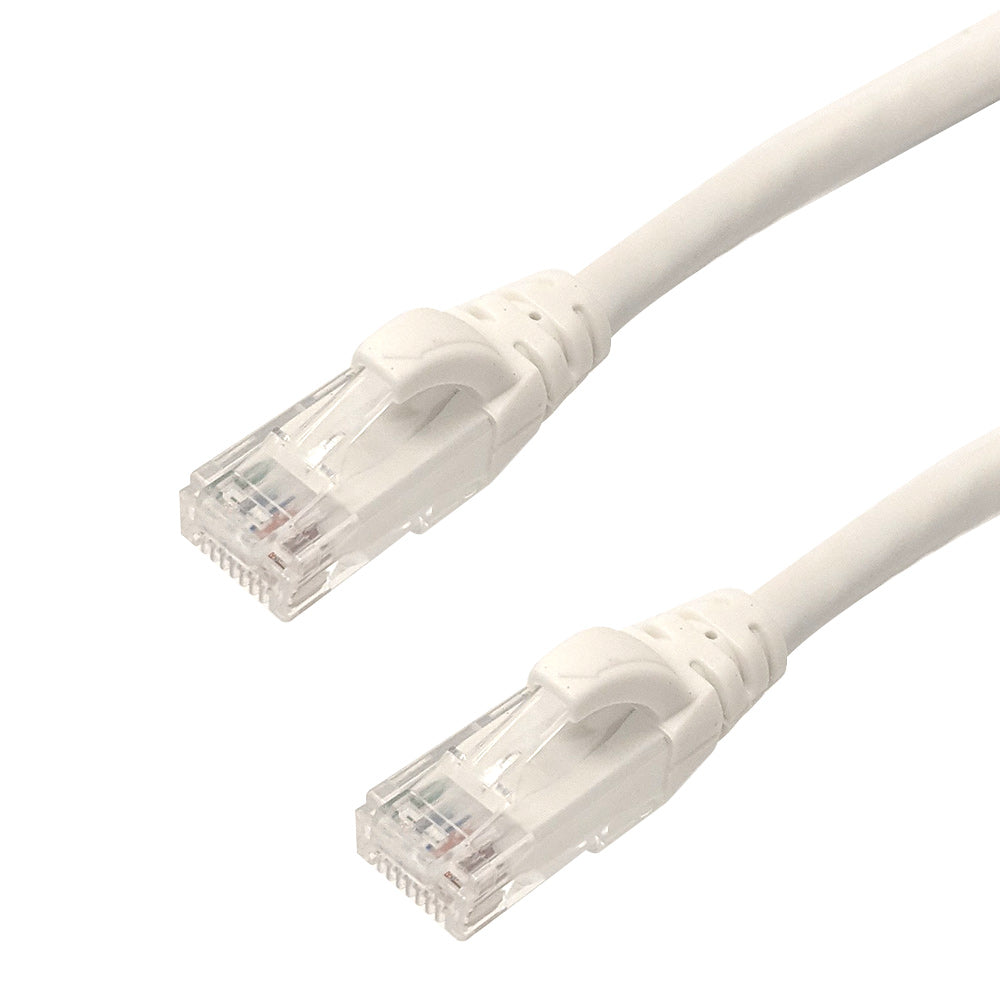

This Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. These cables are FlukeĀ® Cat6 patch cable certified and come with an individual test report. The cable jacket is also CMR (riser) fire rated.
Physical Characteristics | |
---|---|
Color | Blue/Grey/White |
Connector Plating | Gold Plated 50 Micron |
Cable Diameter | 6.2mm |
Wire Gauge | 24AWG Stranded |
Shielding | UTP (Unshielded) |
Pairs | 4 |
Fire Rating | CMR (FT4 Riser Rated) |
Color Code | 568A |
Molding | Molded Tab Style Strain Relief |
Jacket Temperature Rating | -10C to +75C |
Jacket Type | PVC |
Connectors | |
Connector A | RJ45 Long Body Male |
Connector B | RJ45 Long Body Male |
Performance | |
FlukeĀ® CAT6 Patch Cable Test | Yes |
Frequency | 600 MHz |
Approvals | |
c(UL)us |
Yes - Cable |
ETL Verified | Yes |
ANSI/TIA - 568 - C.2 | Yes |
ISO/IEC 11801 | Yes |
EN 50173-1 | Yes |
Environmental | |
RoHS | Yes |
Reach | Yes |
Conflict Materials | Yes |
Package Information | |
Package Quantity | 1 |
Warranty Information | |
Warranty | Limited Lifetime |
