Description

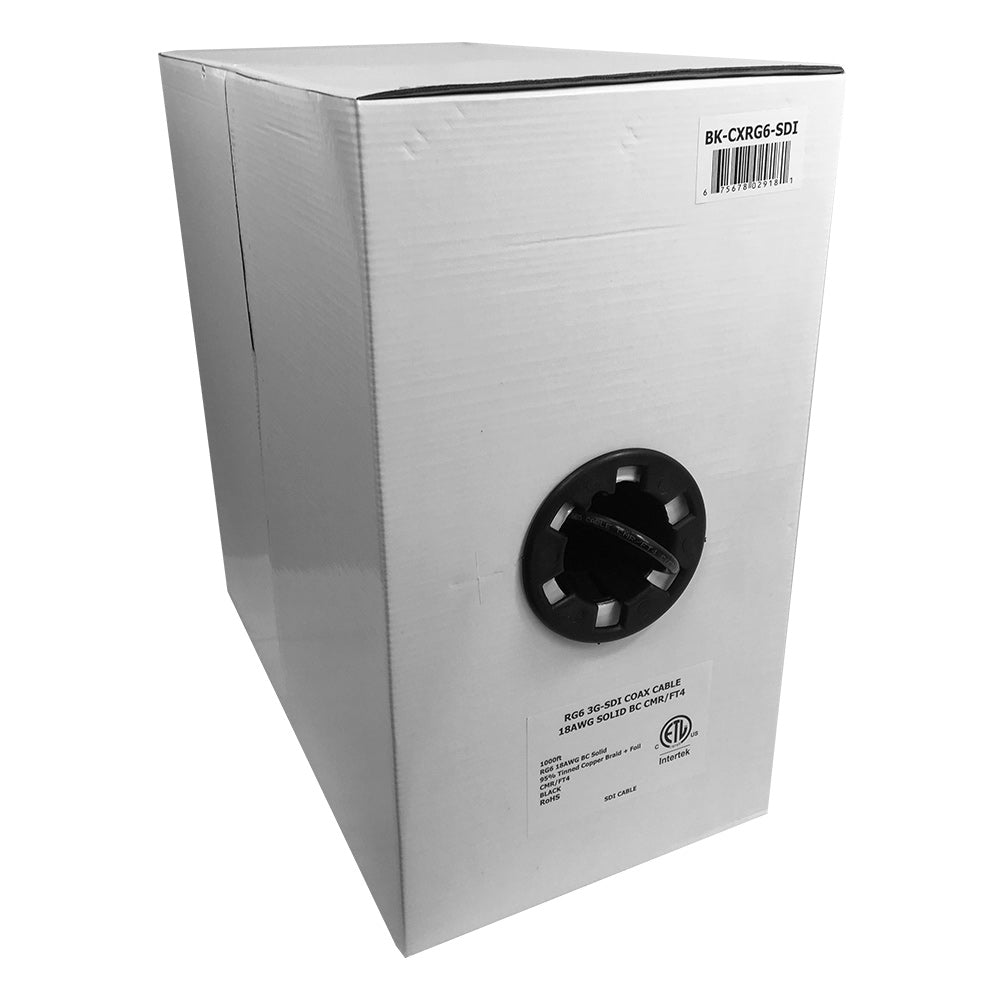

This bulk SDI RG6 cable is 1000 feet in length and consists of a 18AWG solid center conductor. It is ideal for 6 Gbps UHDTV and 3 Gbps HD-SDI 1080p applications.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Cable Diameter | 6.90mm |
| Wire Gauge | 18AWG |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Cable Shielding | Double Side Aluminum Foil (longitudinal) |
| Insulation | 4.57mm Foamed Polyethylene |
| Braided Coverage | 8*16*0.16mm Tinned Copper 95% |
| Operation Temperature | -20ā ~ +75ā |
| Performance | |
| Impedance | 75 Ohm |
| Max. Attenuation | 6GHz |
| Center Conductor DCR | <22.0 Ī©/kmĀ |
| Braid Wire DCR | <10.0 Ā Ī©/kmĀ |
| Approvals | |
| c(ETL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 33 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-CXRG6-SDI | 45.0 lb |
