Description

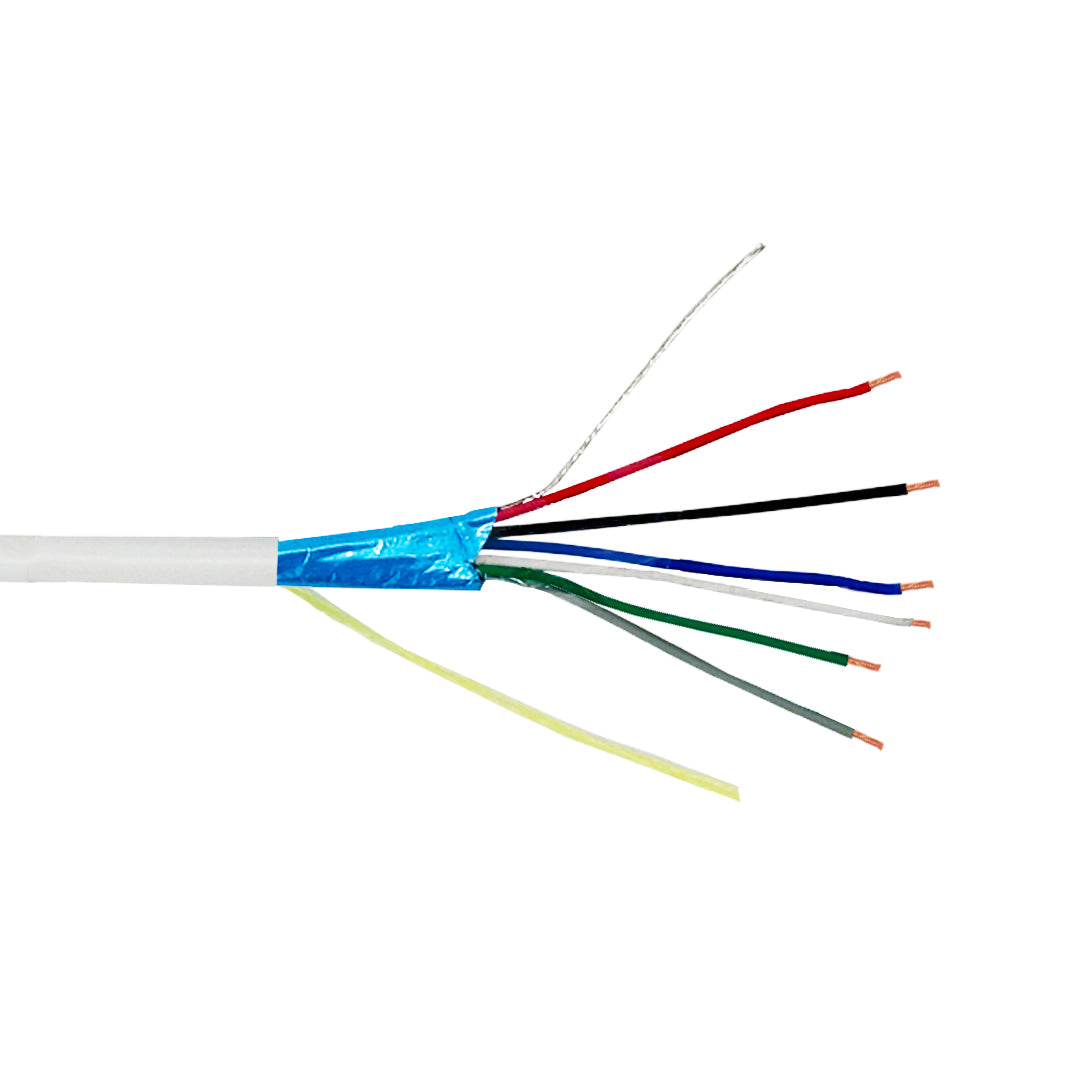

ThisĀ 6 conductor 22AWG stranded shielded control cable is white in color and 1000 feet in length. It is typically used in security control sensors, push buttons and automation control applications.
| Physical Characteristics | |
|---|---|

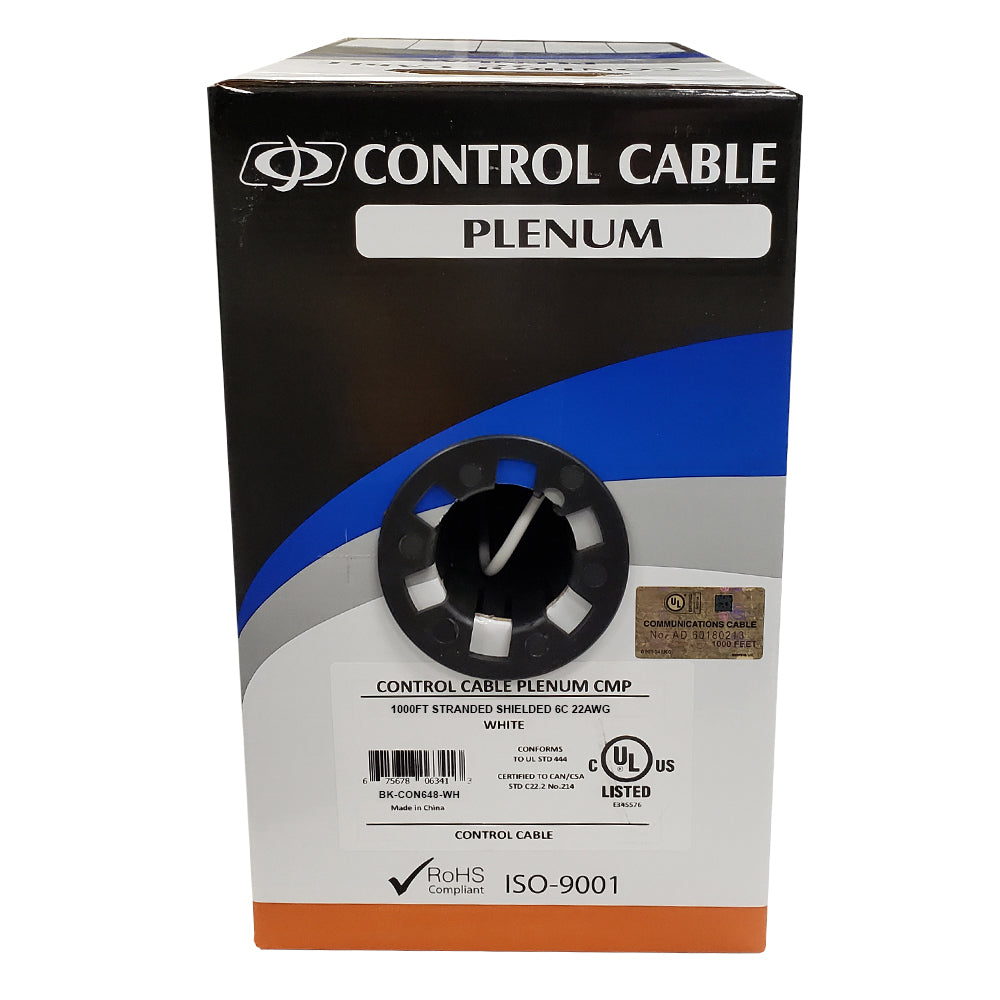

| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | White |
| Number of Conductors | 6Ā Conductors (Red/Black/White/Green/Grey/Blue) |
| Jacket Material | PVC - Polyvinyl Chloride |
| NominalĀ Jacket Thickness | 0.46mm |
| Jacket Outer Diameter | 4.6 +/- 0.15mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Min Average Insulation Thickness | 0.36mm |
| Insulation Outer Diameter | 1.15 +/- 0.10mm |
| Wire Gauge | 22 AWG |
| Material (conductors) | Stranded Bare Copper |
| Ripcord | DuPont KevlarĀ® |
| Shielding | 100% AL-Mylar & PET Coverage with 25% Overlapping |
| Conductor Resistance |
16.89 Ohms/1000 FT. 55.4 Ohms/Km (Nominal) |
| Drain Wire |
24AWG Stranded Tinned Copper |
| Elongation | Unaged: 100% Min Aged: 65% Min |
| Operating TemperatureĀ | -20āĀ ~ +75ā |
| Approvals | |
| c(UL)us | Yes |
|
Environmental |
|
| RoHS |
Yes |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 22.53 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-CON648-WH | 10.0 lb |
