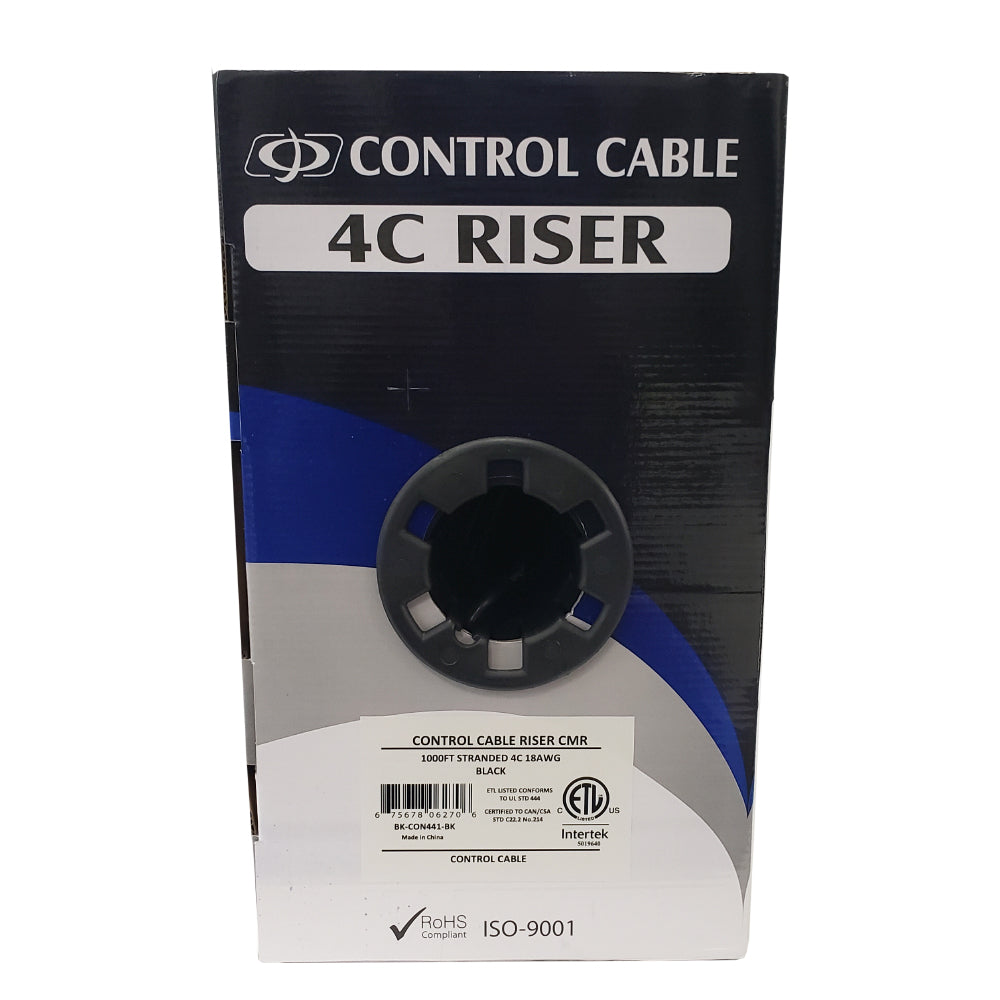

1000ft 4C 18AWG Stranded Control Cable - CMR - Black

Control Bulk CableSKU: BK-CON441-BK

Price:
Sale price$176.44 USD
Stock:
In stock

Description

This 4 conductor 18AWG stranded unshielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.

Physical Characteristics
Lengths Available 1000 foot [305m] Pull Box
Color (Jacket) Black

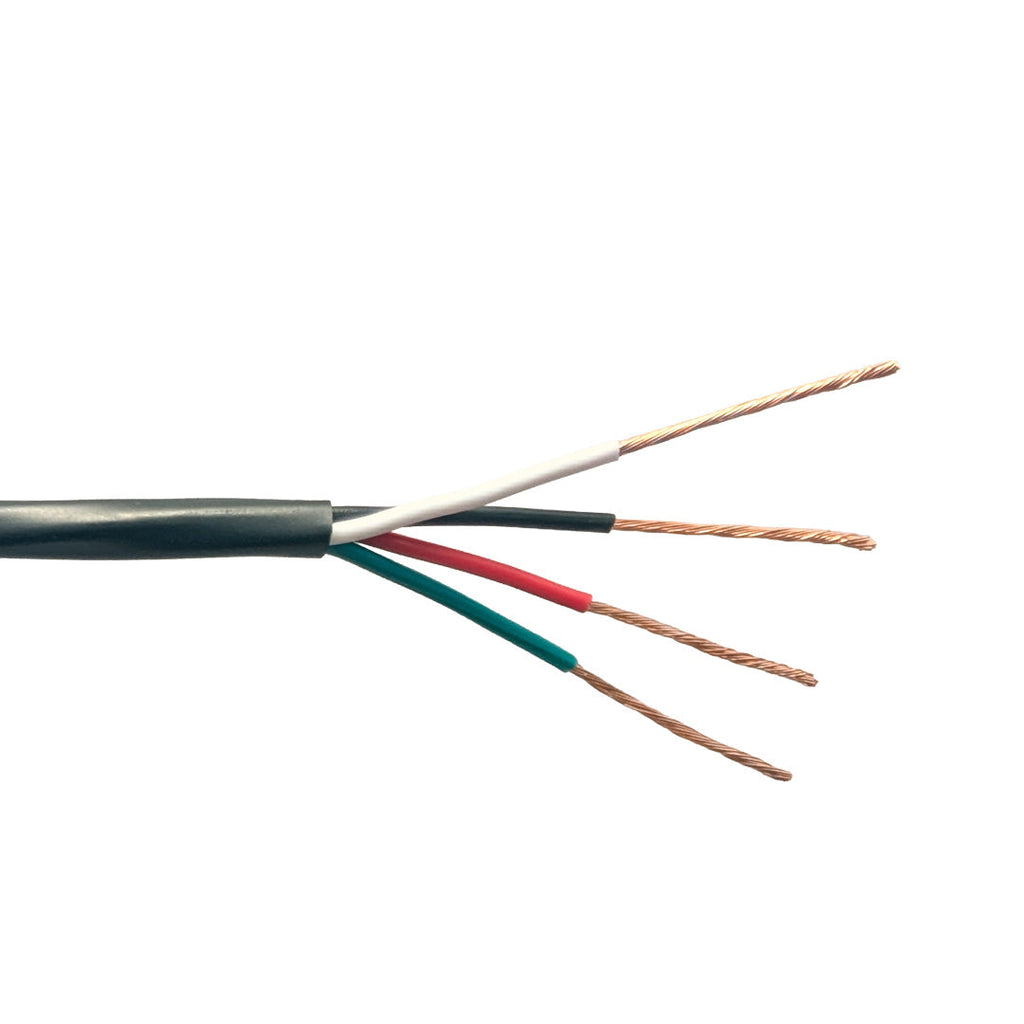

Number of Conductors 4 Conductors (Black/Red/White/Green) Oxygen Free Bare Copper
Insulation Material PVC
Jacket Thickness 0.45mm
Wire Gauge 18 AWG
Stranding 16*0.25mm
Nominal Insulation Thickness 0.38mm
Nominal Insulation Diameter 1.9mm
Ripcord Nylon
Temperature Rating -20℃ ~ 75℃
Operating Voltage 300V
Mechanical Characteristics
Before Tensile Strength (Mpa) >=13.8
Aging Elongation (%) >=100
Aging Condition (℃xhrs) 100x168
After Tensile Strength (Mpa) >=85% of unaged
Aging Elongation (%) >=50% of unaged
Cold Bend (-20±2º Cx4hrs) No Crack
Certifications
RoHS Yes
c(ETL)us Yes
Packaging Information

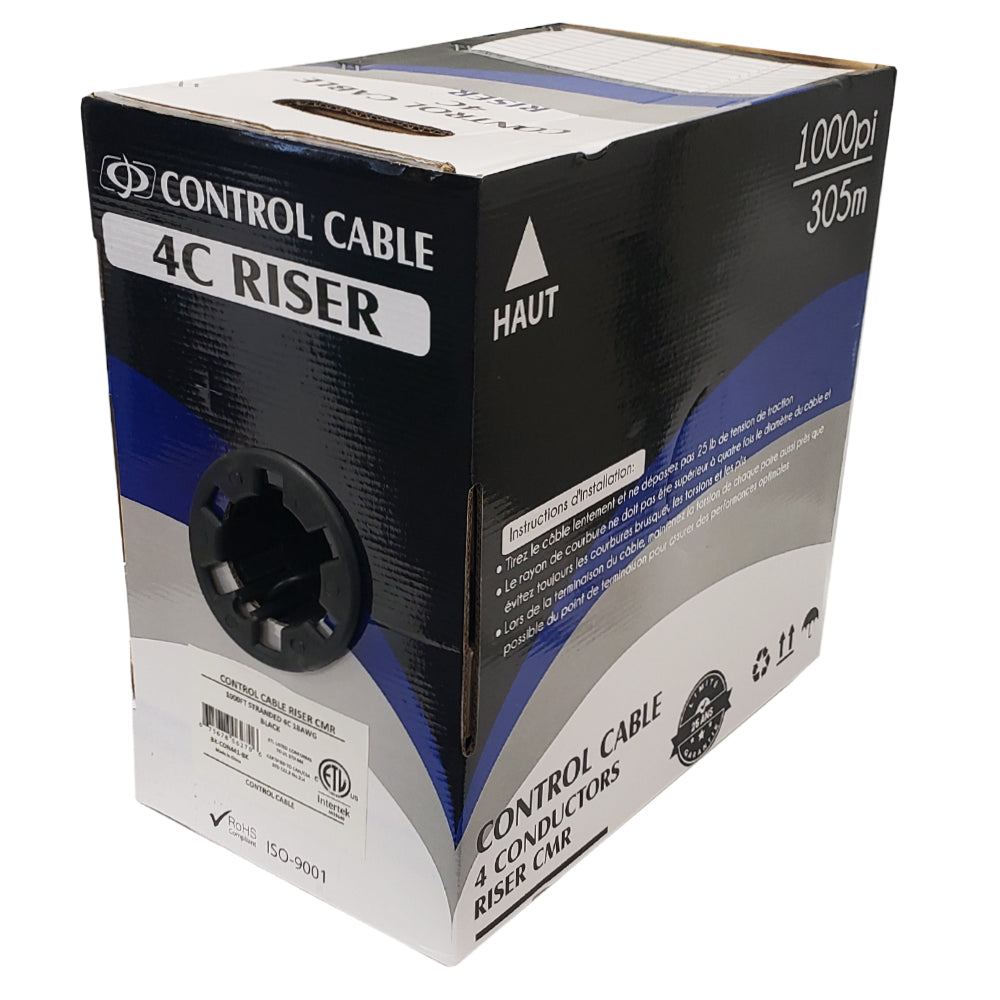

Package Quantity 1 Pull Box
Product Weight 37.94 lbs
SKU Weight
BK-CON441-BK 37.0 lb
