Overview

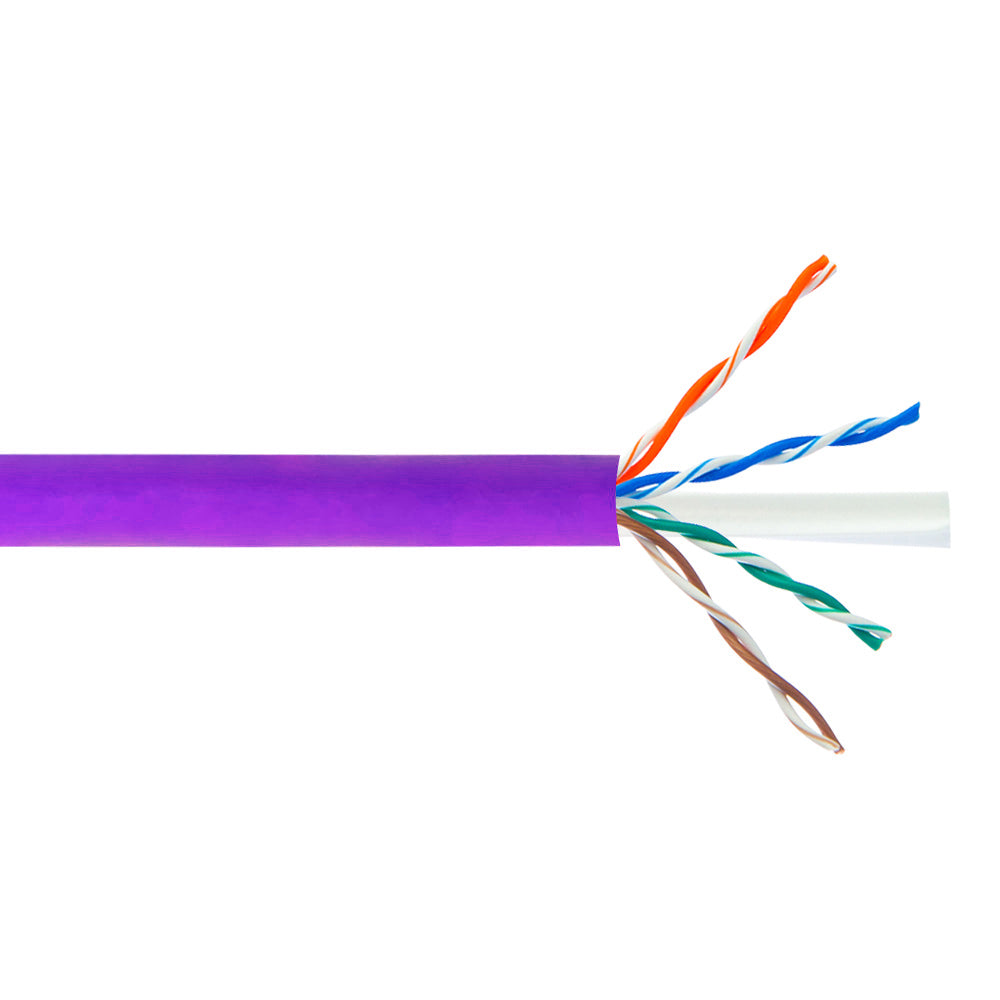

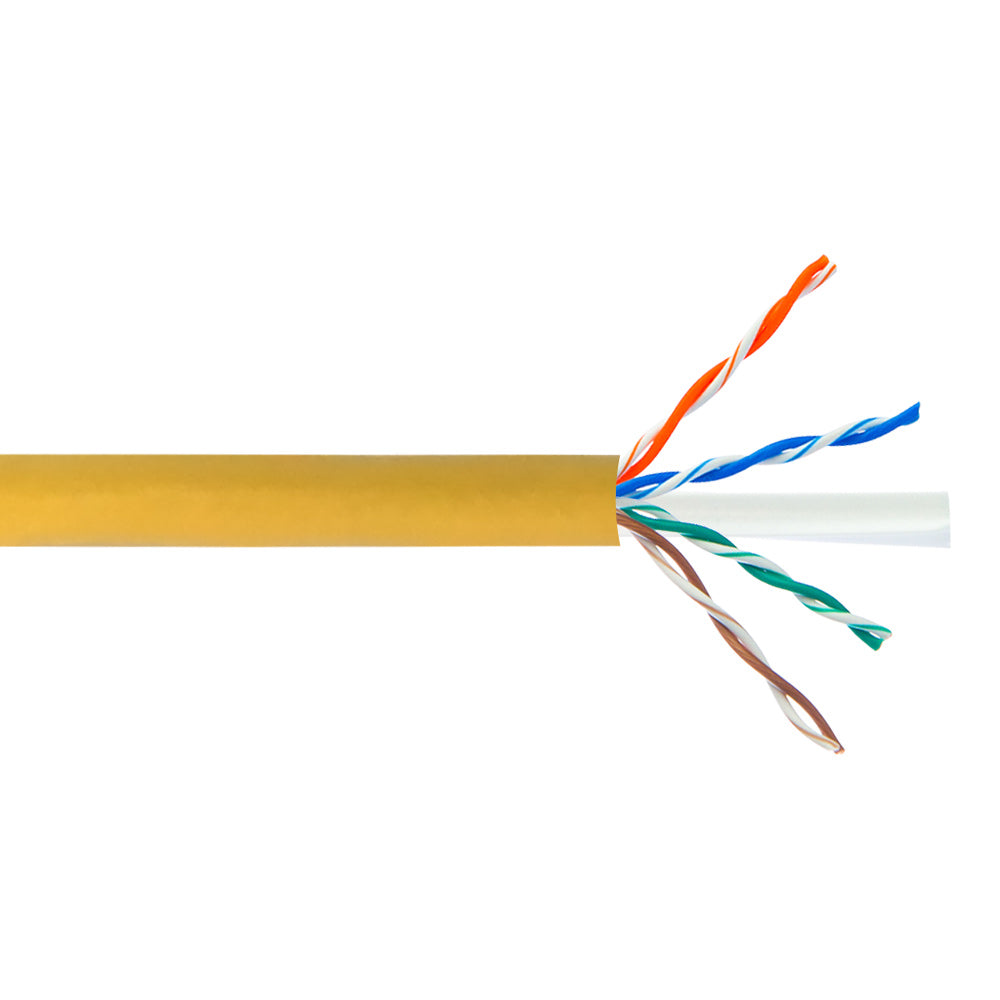

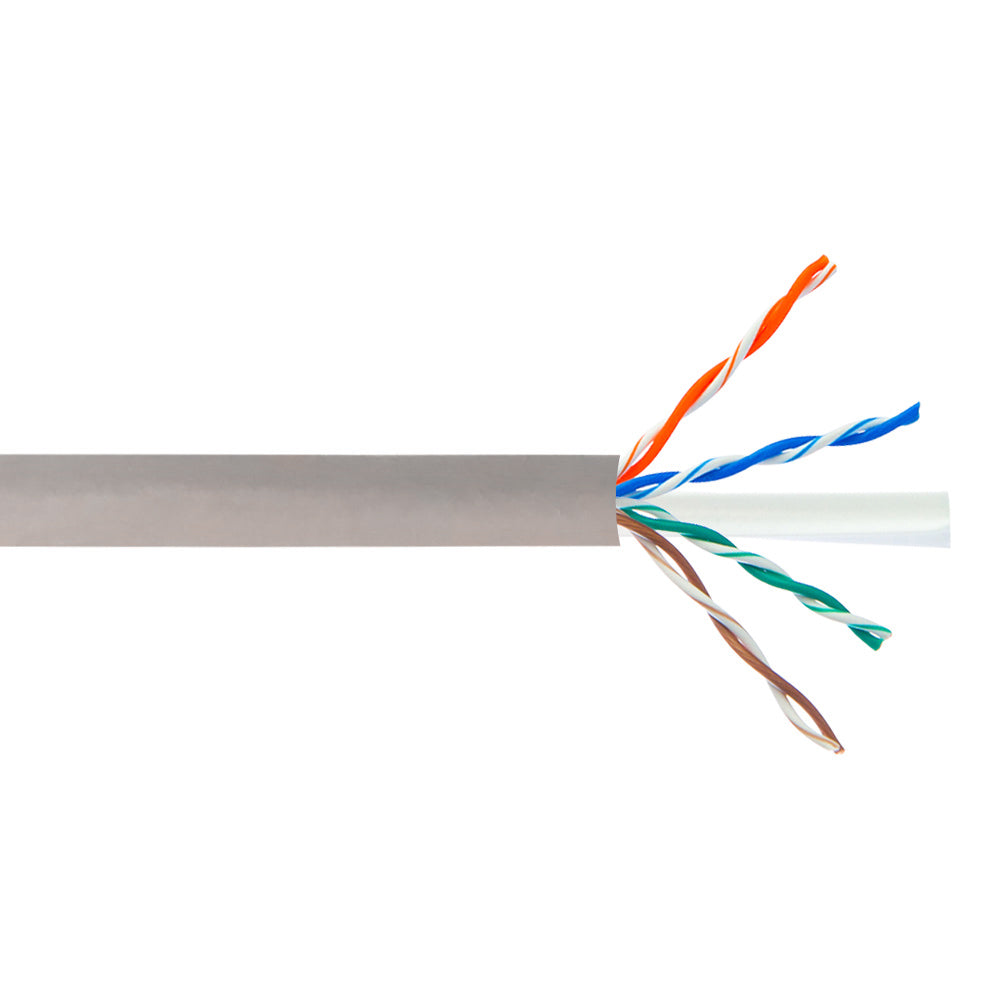

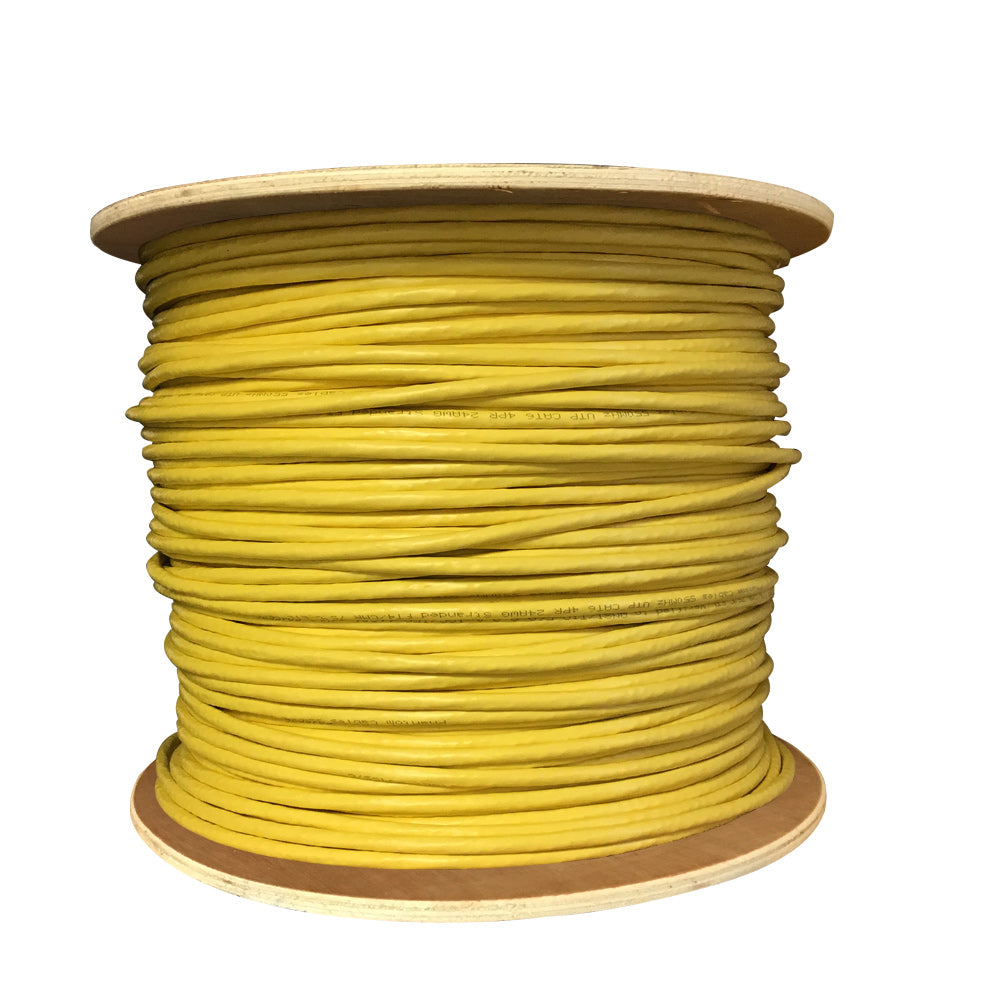

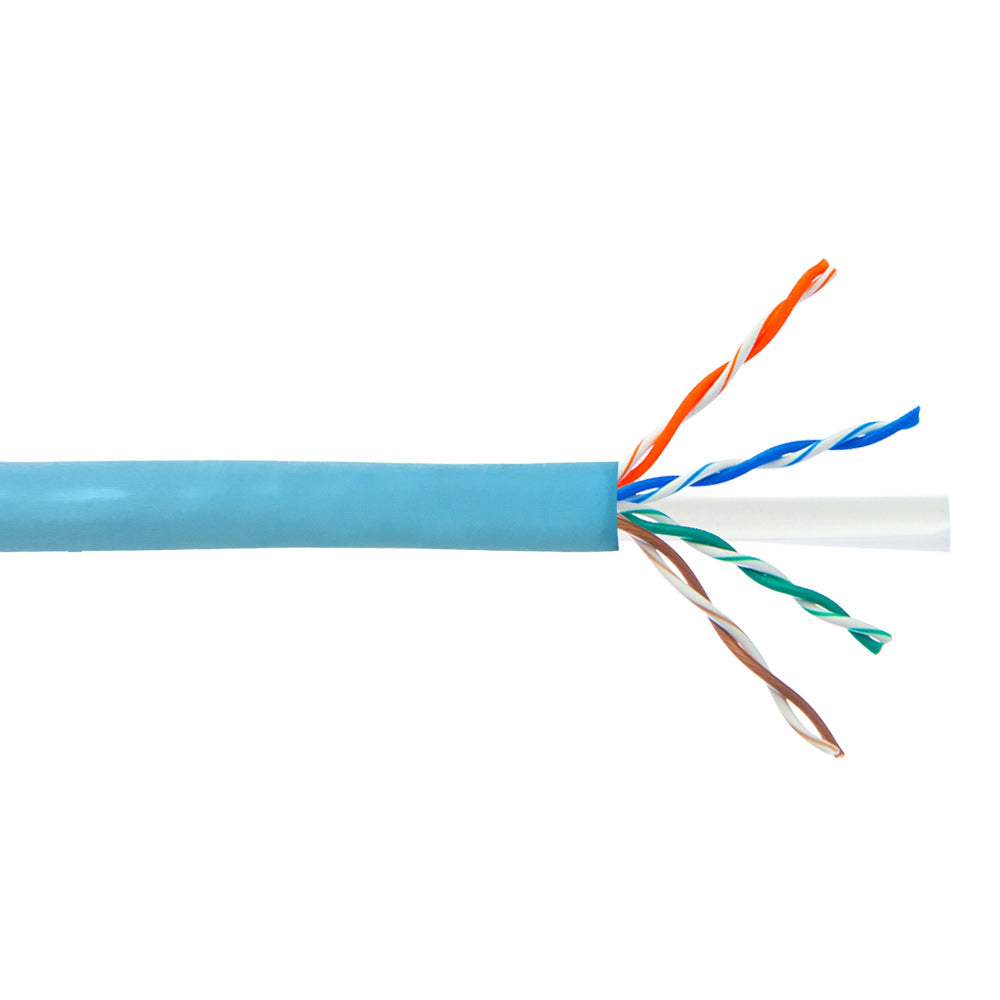

This bulk riser rated Cat6a cable is 1000 feet in length and consists of 4 pairs of 24AWG stranded wires. It is typically used to manufacture Cat6a patch cables and terminated with Cat6a RJ45 plugs.
 |

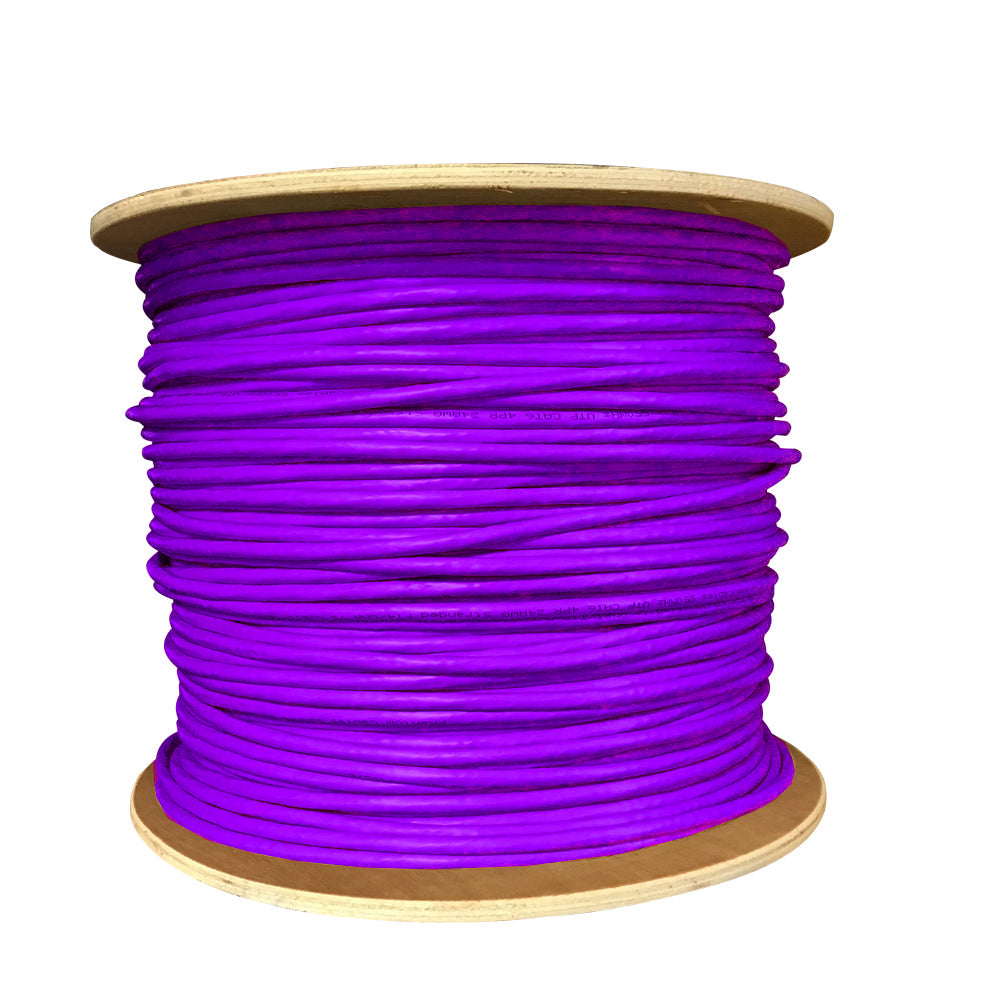

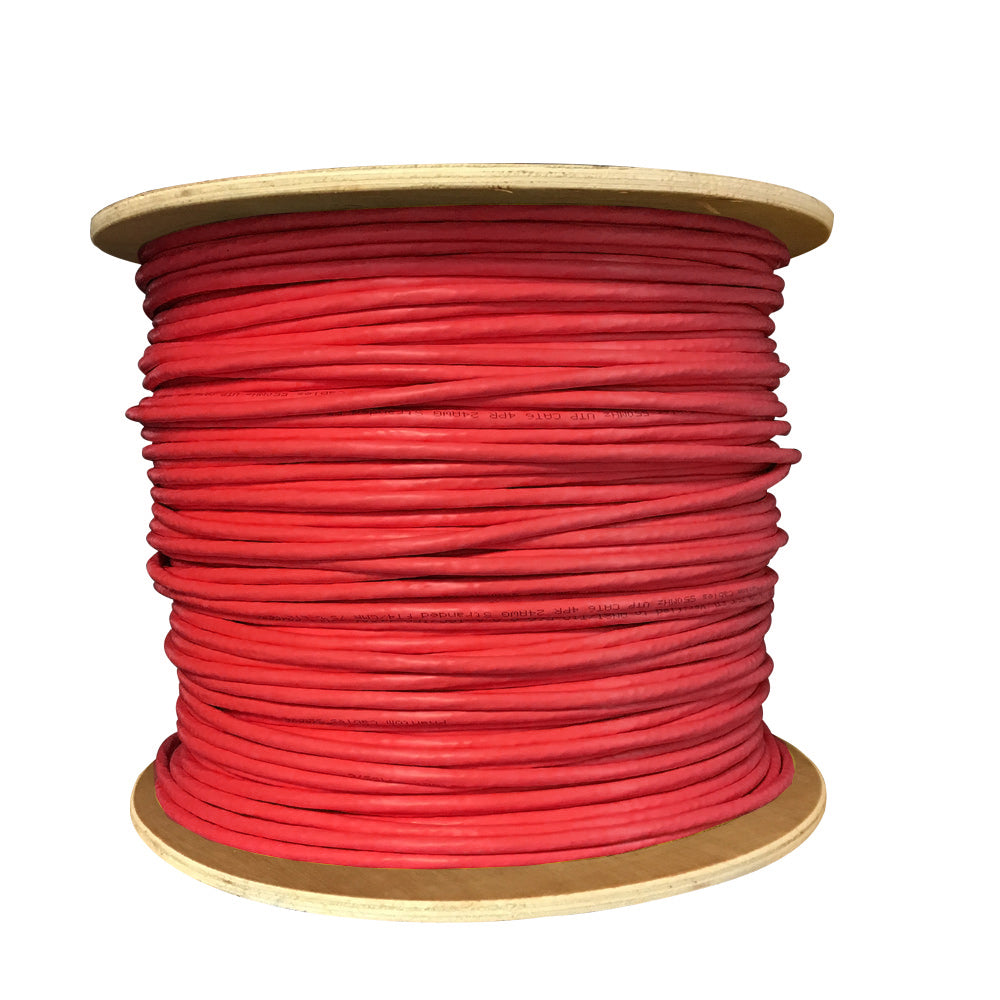

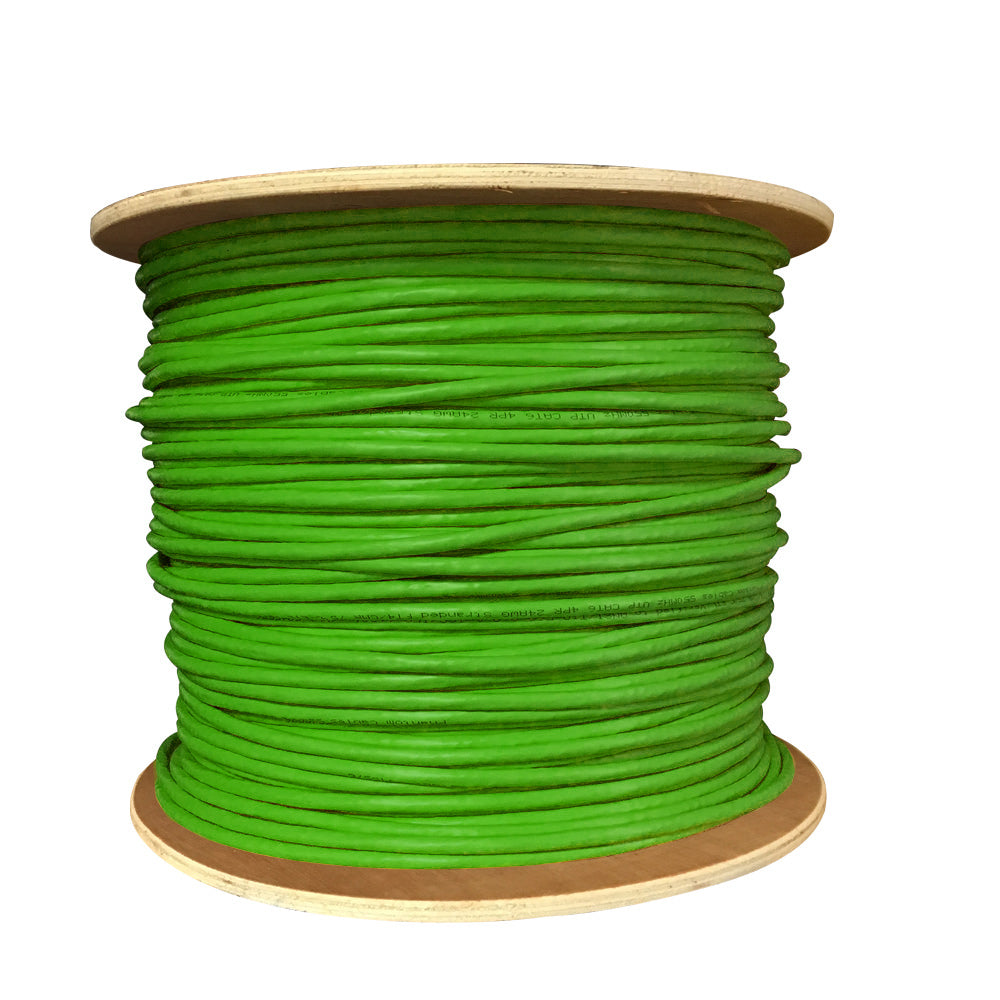

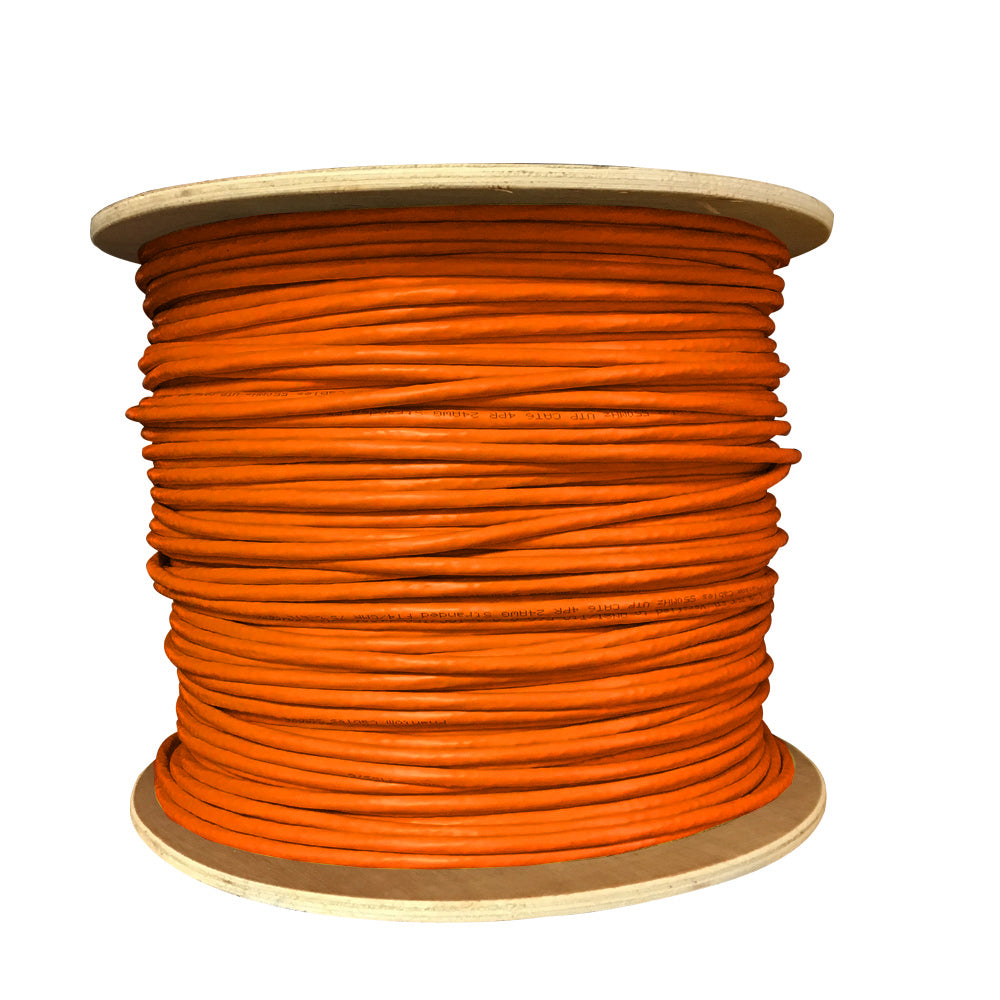

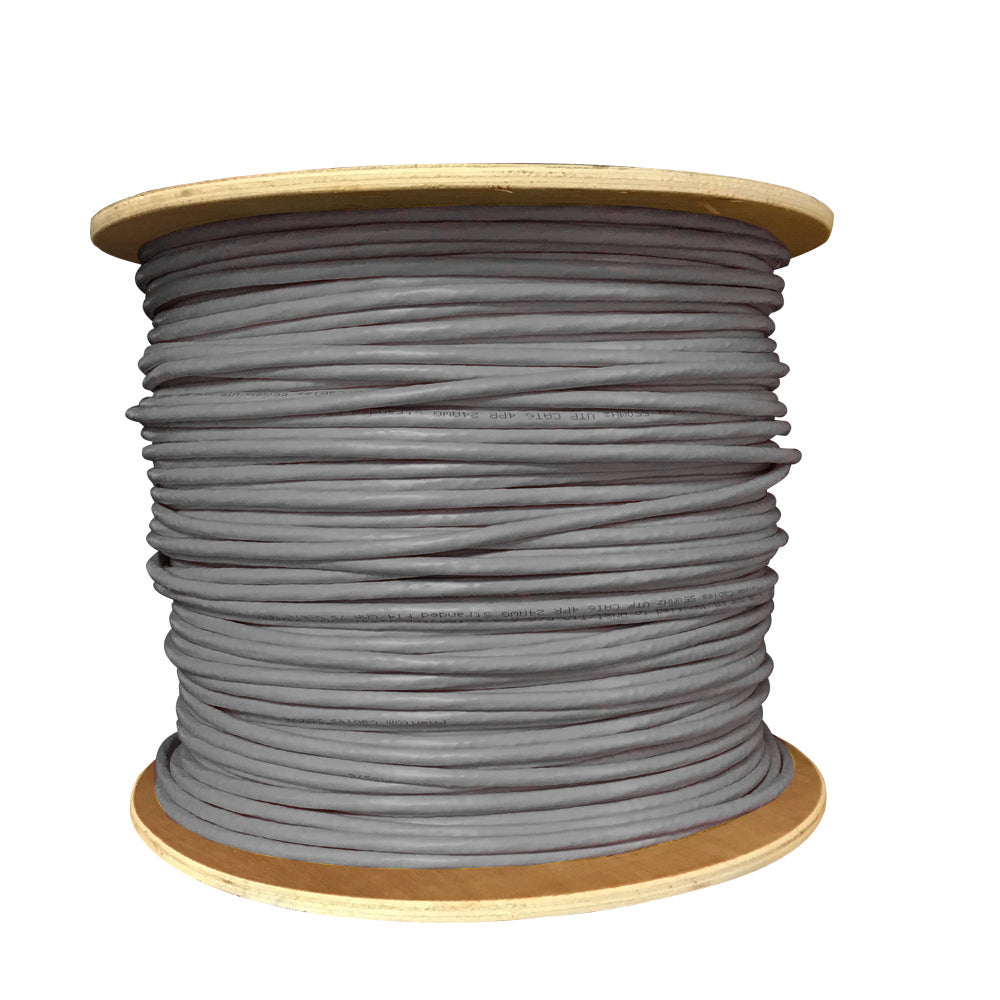

100% Bare Copper Stranded ConductorsThis cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The stranded wires gives the cable more flexibility, makes it easier to handle and makes it perfect for touring and short patch links. Great for High Speed NetworksOur CAT6a bulk cable is the most practical and economical solution for all your networking applications, it provides 550 MHz of bandwidth, and offers high speed, uninterrupted connection. The Quality and Convenience You NeedThis cable comes on a wood reel for easy pulling, it features color striped pairs for easy identification, and a rip cord for easy stripping. also it uses an unshielded twisted pair (UTP) structure to reduce outside interference.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.20 mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 24 AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Stranding Count & Diameter | 70/0.20 BC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Cable Shielding | None |
| Temperature Rating | 75ā |
| Approvals | |
| ETL | Yes |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 28.38 lbs [12.87kg] |
| SKU | Options | Weight |

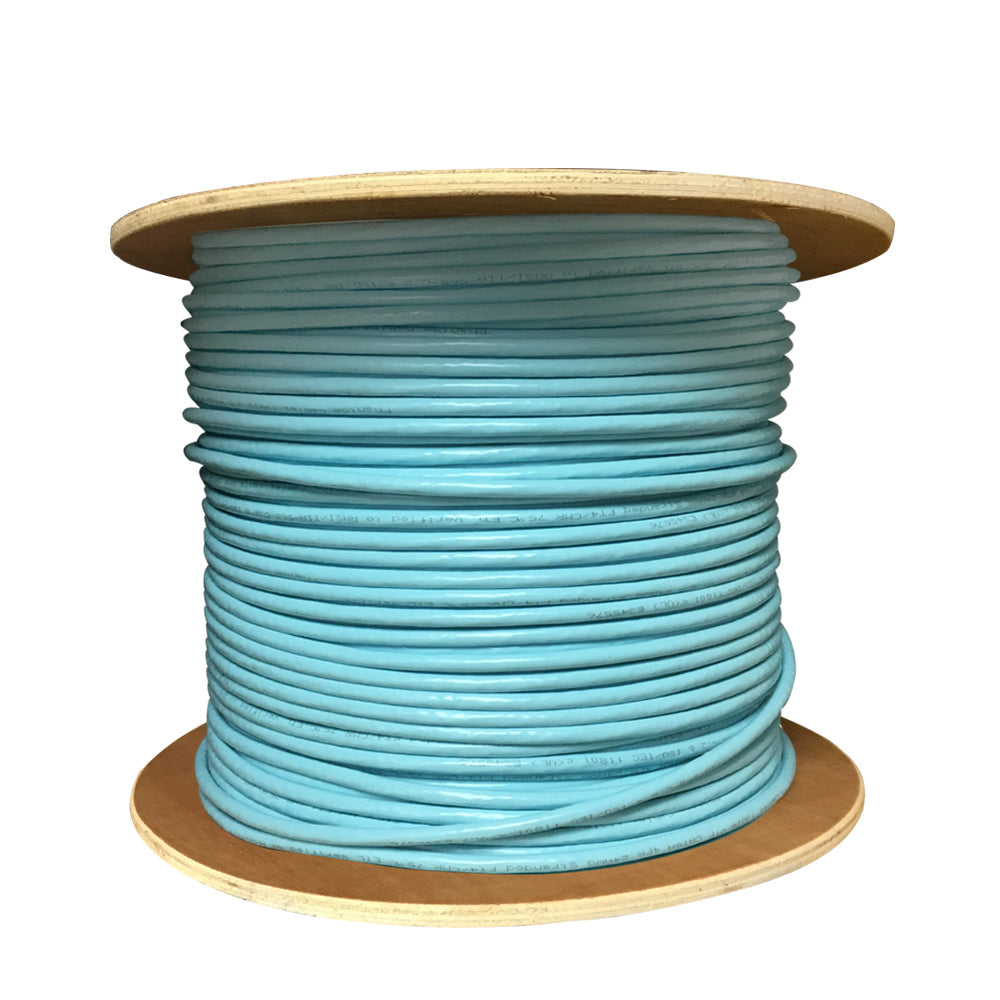

| BK-C6AST-4AQ | Aqua | 28.38 lb |

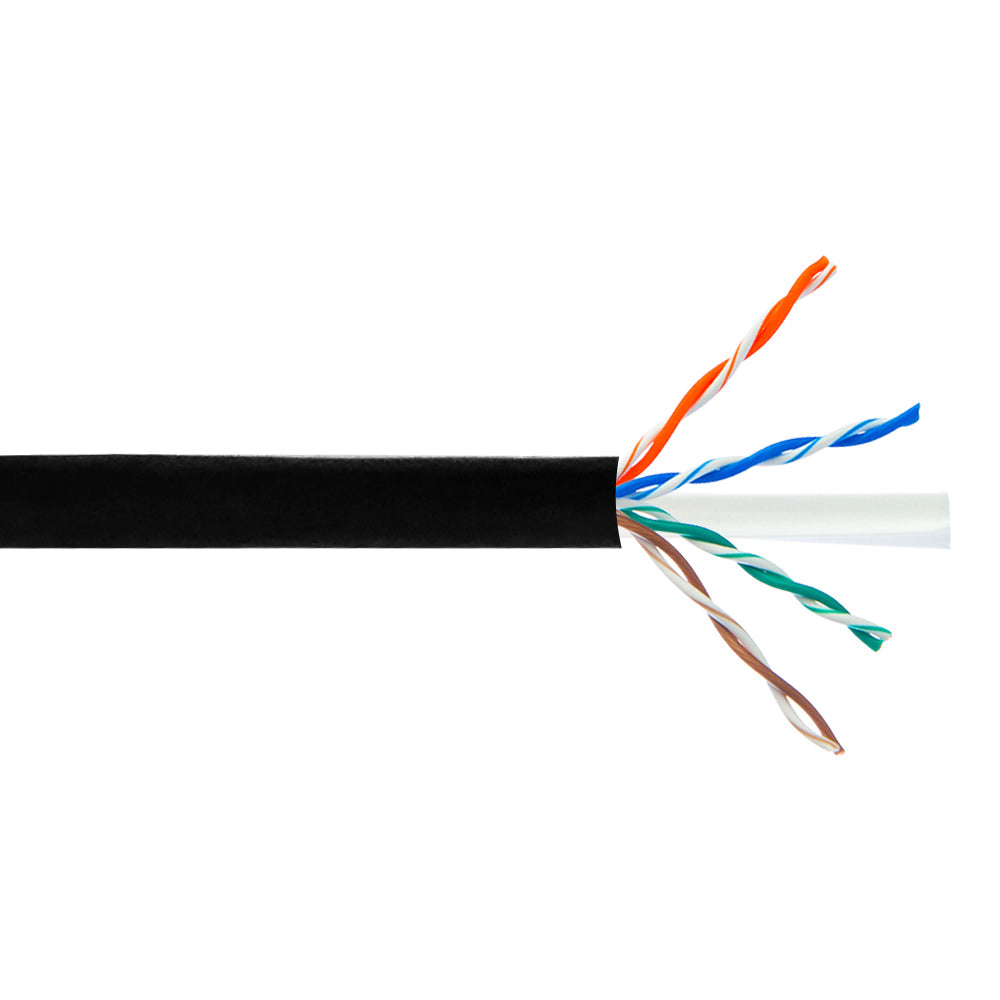

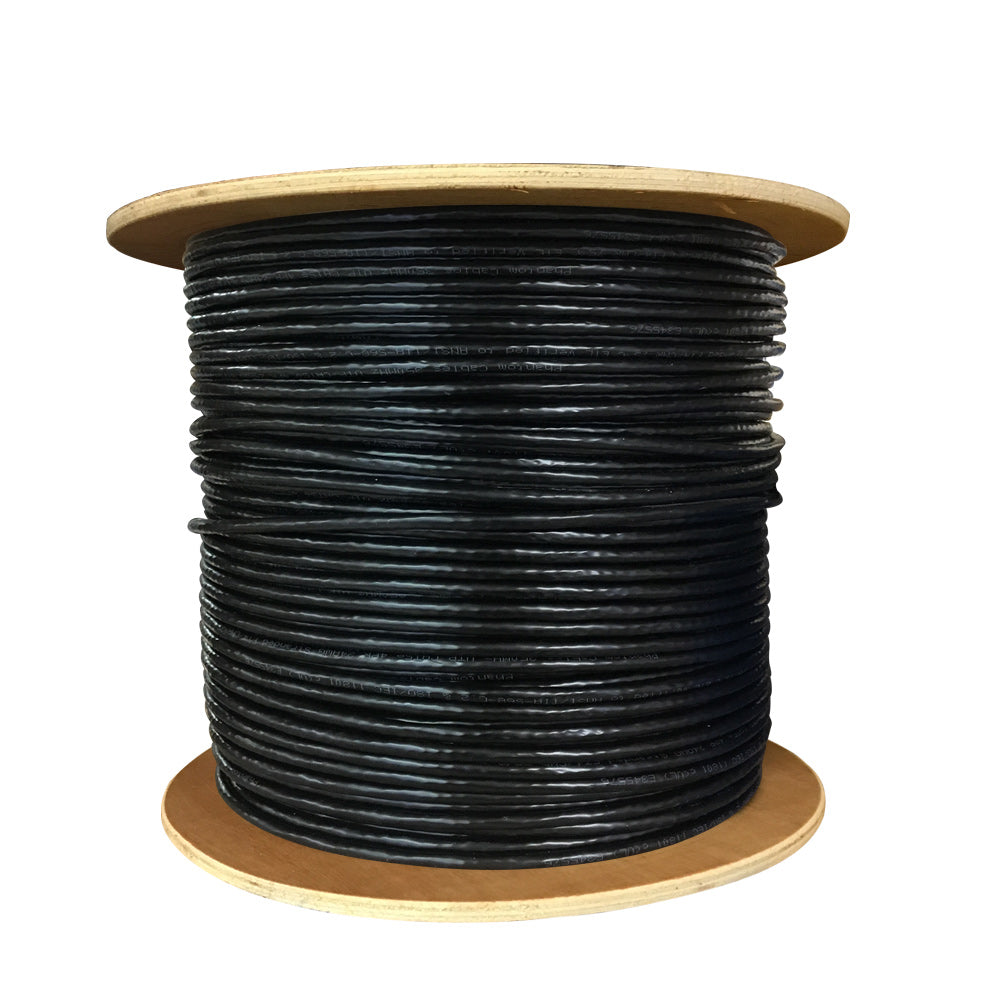

| BK-C6AST-4BK | Black | 30.0 lb |

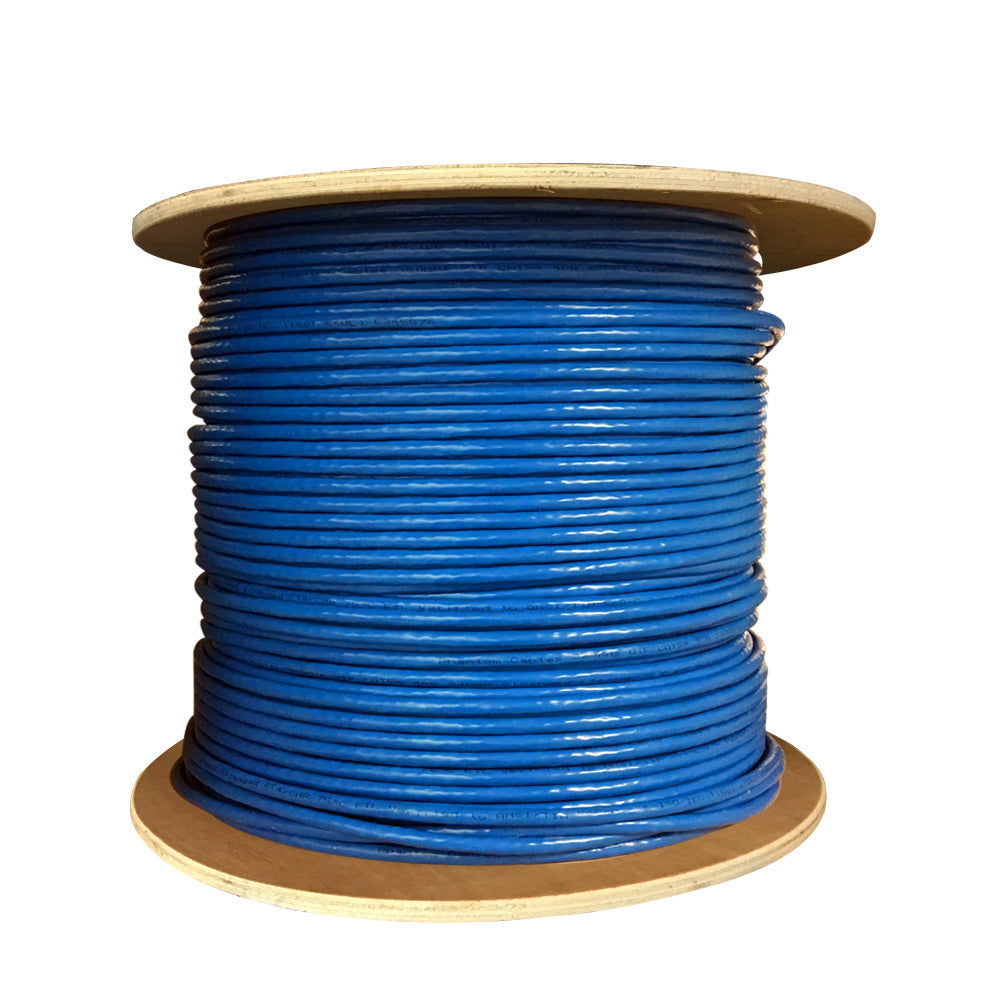

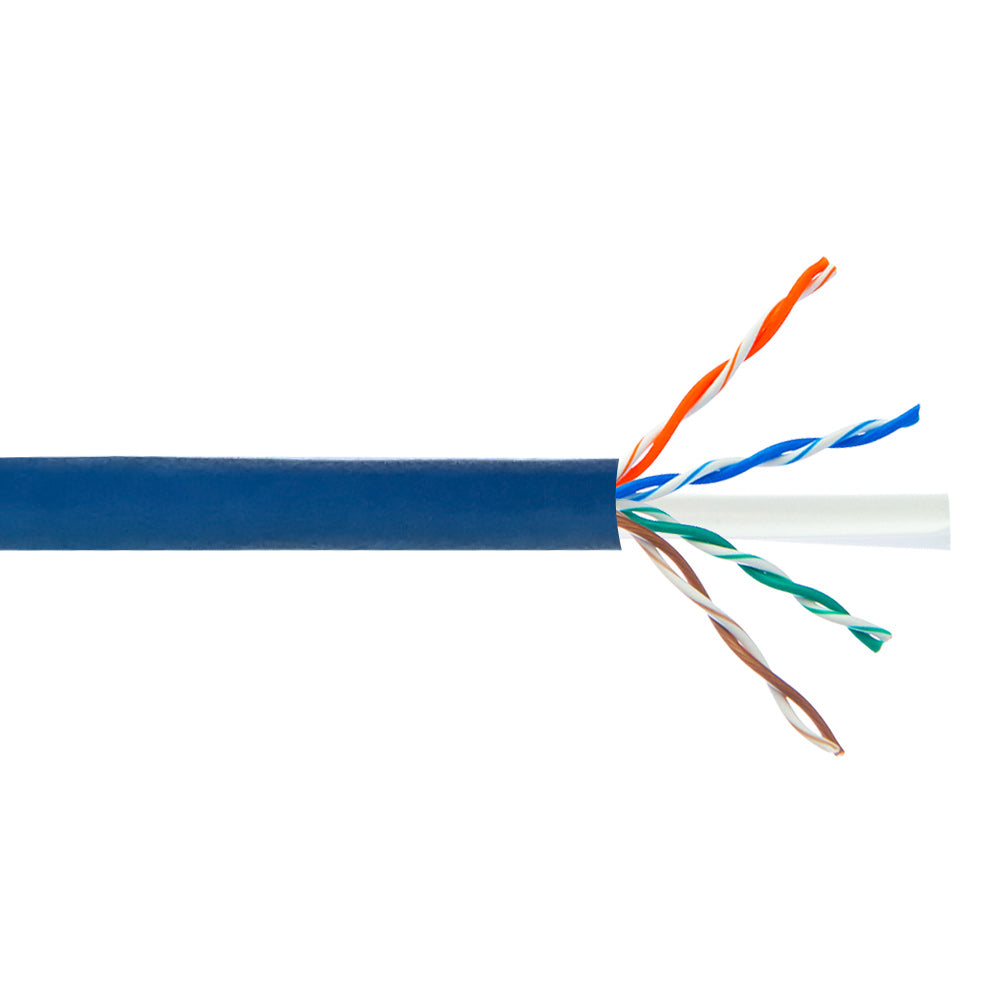

| BK-C6AST-4BL | Blue | 30.0 lb |

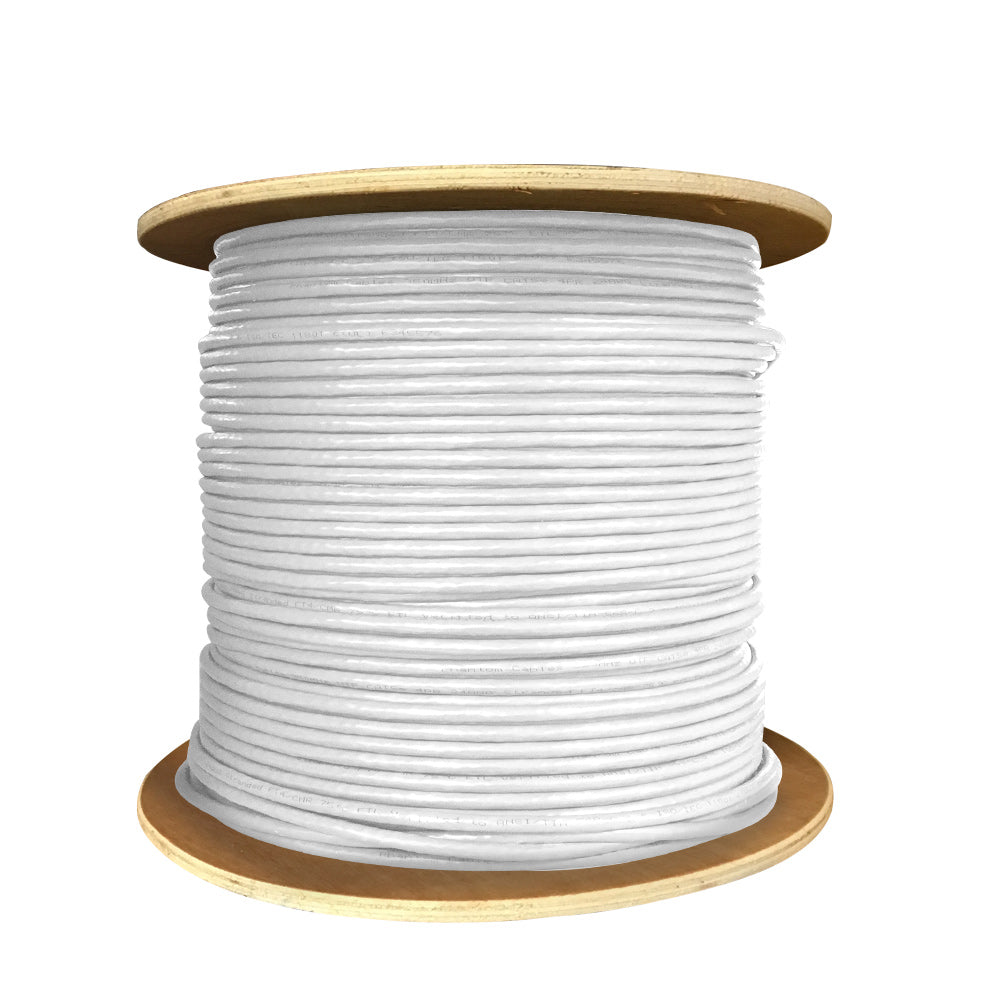

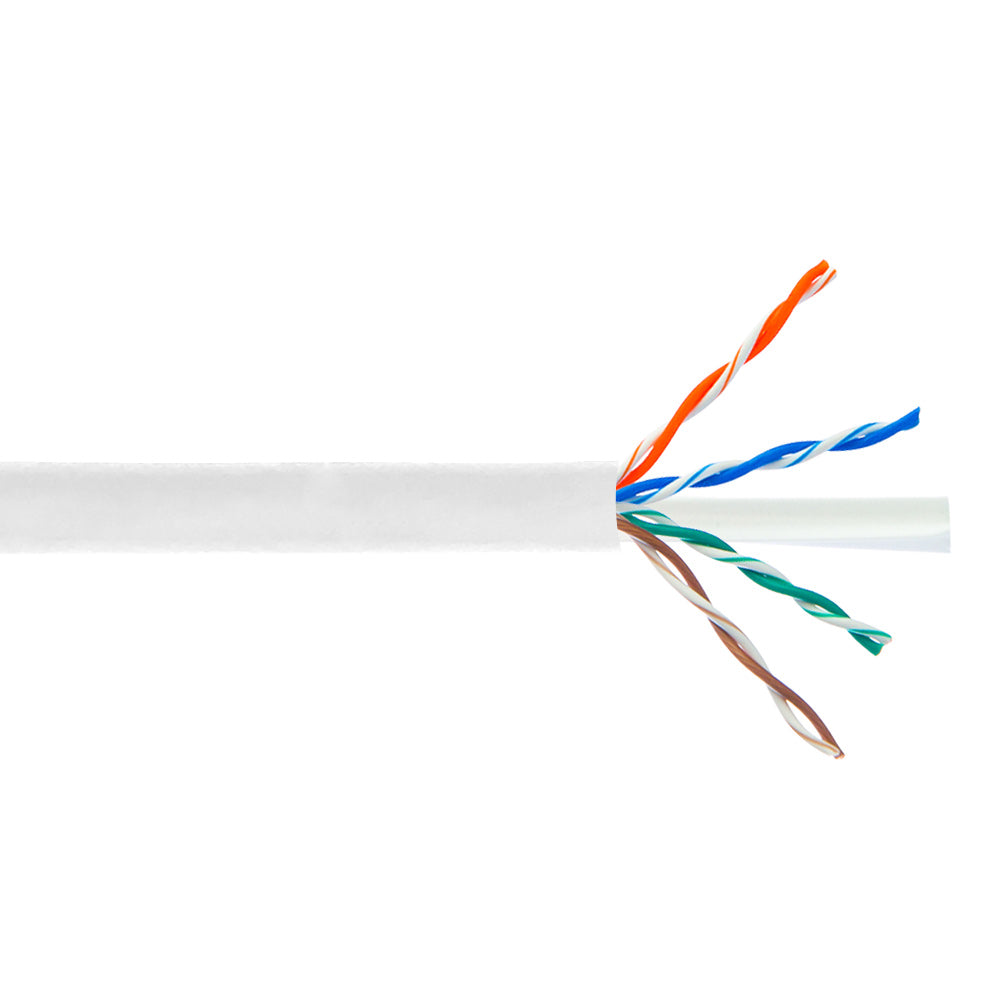

| BK-C6AST-4WH | White | 30.0 lb |
