Description

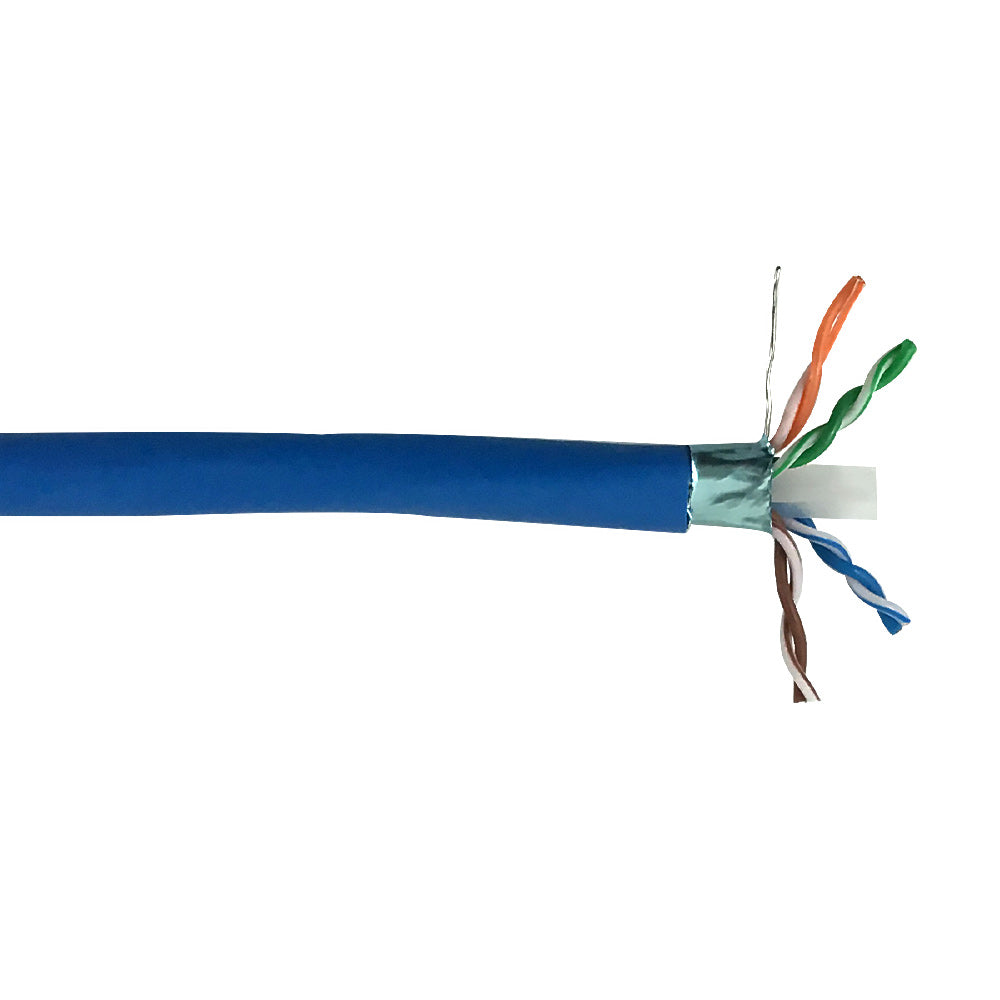

This bulk shielded riser rated Cat6a cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat6a jack.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Blue |
| Overall Diameter | 10.4mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 23 AWG Solid |
| Insulation Material | HDPE |
| Conductor Material | 100% Solid Bare Copper |
| Jacket Material | Flame Retardant PVC - Polyvinyl Chloride |
| Jacket Diameter | 8.00mm |
| Spacer Thickness | 1.00mm |
| Outer Sheath Thickness | 0.45mm |
| Ripcord | Yes |
| Jacket Rating | CMR [Riser Rated] |
| Cable Shielding | 100% AL-Foil Shield |
| Separator | Yes |
| Temperature Rating | Installation : 0°C to +75°C Operating : -20°C to +75°C |
| Mechanical Characteristics | |
| Tensile Strength | Before : >= 13.8 Mpa |
| Elongation | Aging : >= 100% |
| Aging Condition | 100°C x 168 hour After : >= 85% of unaged Aging : >= 50% of unaged |
| Electrical Characteristics | |
| Maximum Conductor DC Resistance @ 20°C | ≤ 9.38 Ω / 100 Meters |
| Maximum DC Resistance Unbalanced @ 20°C | ≤ 5% |
| Capacitance Unbalance @ 20°C | ≤ 330 pF / 100 Meters |
| Nominal of Propagation | 69% |
| Mutual Capacitance @ 20°C | ≤ 5.6 nF / 100 Meters |
| Max. Delay Skew @ 20°C | ≤ 45 nS / 100 Meters |
| PoE Compliance | |
| PoE / IEEE 802.3af Type 1 | 15.4W (37-57V) |
| PoE+ / IEEE 802.3at Type 2 | 30W (42.5-57V) |
| PoE++ / IEEE 802.3bt Type 3 | 60W (42.5-57V) |
| 4PPoE / IEEE 802.3bt Type 4 | 100W (41.1-57V) |
| Approvals | |
| c(ETL)us | Approved |
| Environmental | |
| RoHS | Compliant |

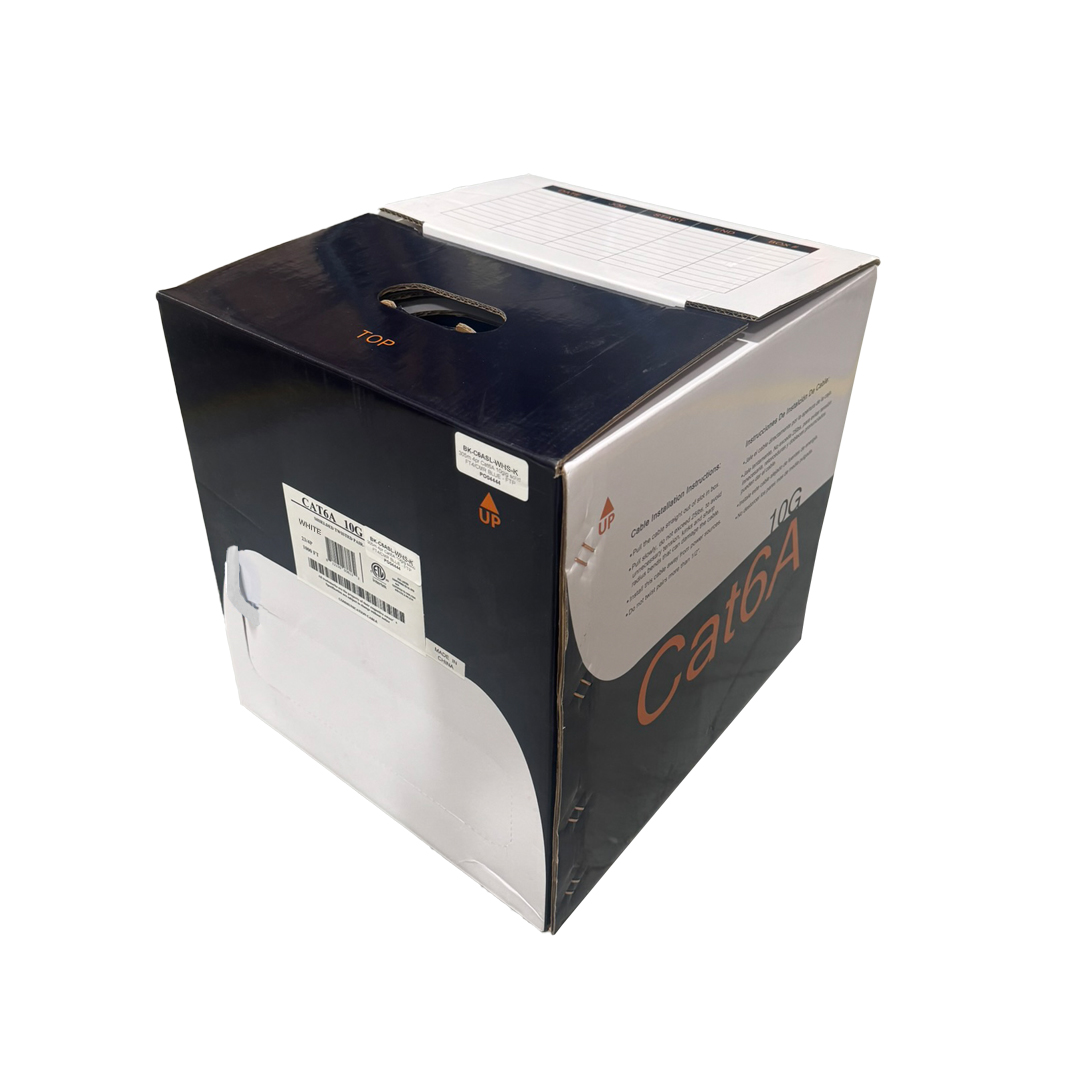

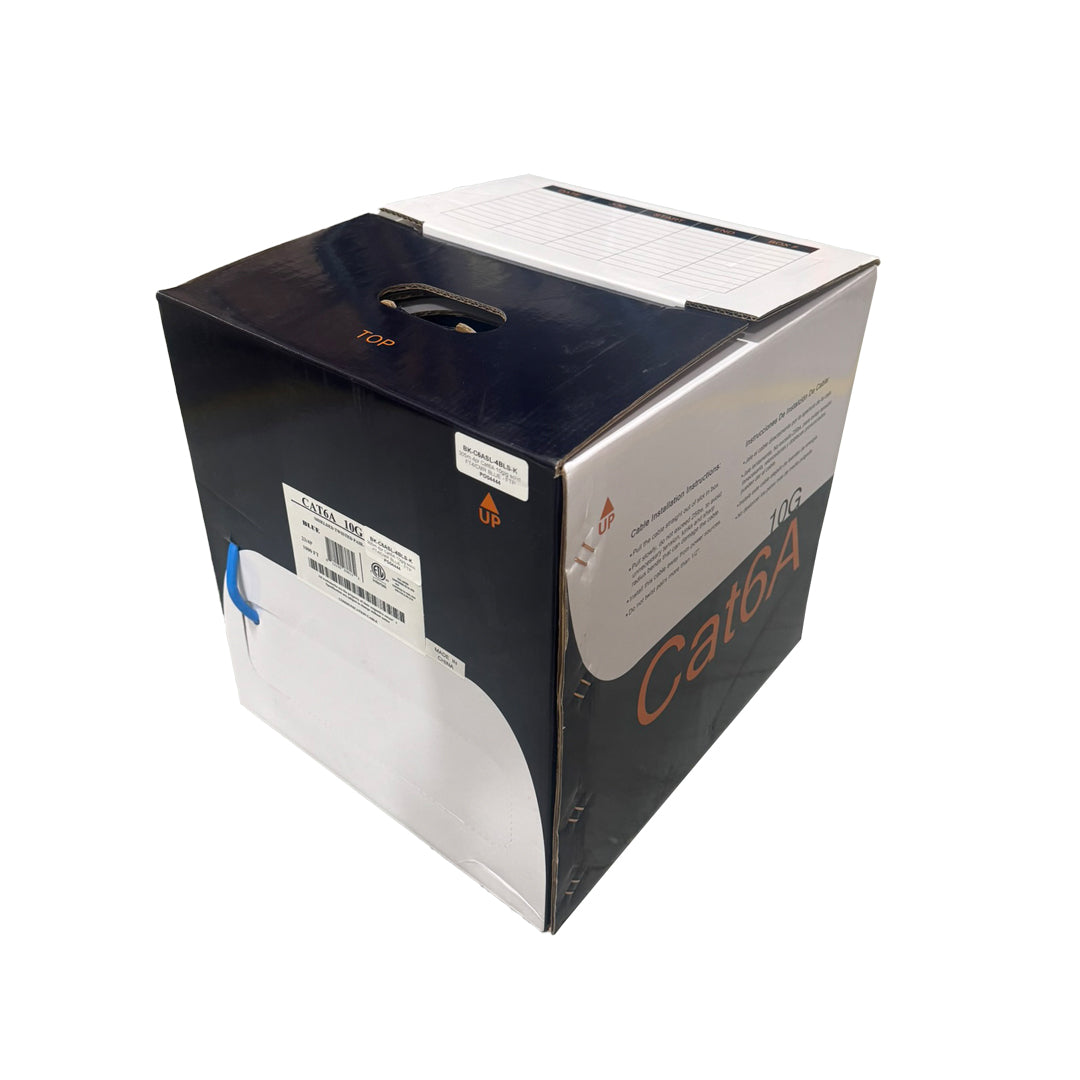

| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 53 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-C6ASL-4BLS-K | 53.0 lb |
