Description

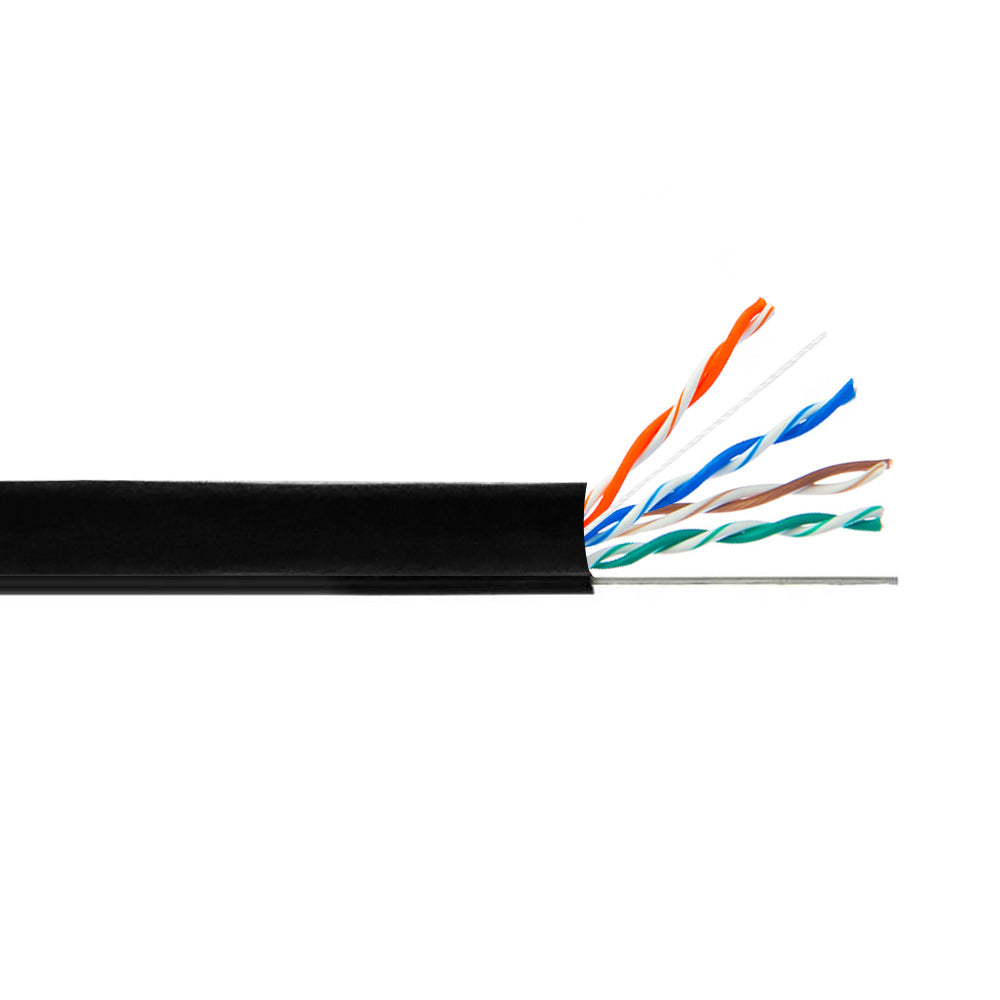

This bulk outdoor rated Cat5e cable with messenger is 1000 feet in length and consists of 4 pairs of 24AWG solid wires. It is typically used outdoors as an aerial cable as premise wiring to connect network devices.
| Physical Characteristics | |||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Color | Black | ||
| Cable Diameter | 5.40 mm | ||
| Number of Pairs | 4 Pairs | ||
| Color of Pairs | White-Brown, White-Orange, White-Green, White-Blue | ||
| Wire Gauge | 24AWG Solid | ||
| Cable Shielding | None | ||
| Temperature Rating | -40ā ~ +75ā | ||
| Conductor Material | 100% Bare Copper | ||
| Conductor Diameter | 0.50Ā±0.005mm | ||
| Jacket Material | LLDPE | ||
| Jacket Rating | Direct Burial / UV | ||
| Jacket Average Thickness | 0.80x0.65mm | ||
| Jacket Minimum Thickness | 0.72x0.60mm | ||
| Insulation | PE | ||
| Insulation Average Thickness | 0.205mm | ||
| Insulation Minimum Thickness | 0.180mm | ||
| Insulation Diameter | 0.91mm | ||
| Assembly Diameter | 3.80Ā±0.10mm |
||
| Twisted Pair Diameter | 1.92mm | ||
| Messenger (Galvanize Steel) Diameter | 1.30mm | ||
| Rip Cord | Yes - Nylon | ||
| Electrical Characteristics | |||
| Before Aging | Tensile Strength (Mpa): >=10.6 Elongation (%): >=300 |
||
| Aging Condition (ā x hrs) | 100x168 | ||
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
||
| Environmental | |||
| RoHS | Yes | ||
| Packaging Information | |||
| Package Quantity | 1 | ||
| Product Weight | 37.15 lbs | ||
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-C5ESL-4DBM | 35.0 lb |
