Overview
This bulk riser rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat5e jack. It is great for all high bandwidth applications such as high speed networks.
 |
100% Bare Copper Solid ConductorsThis cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The solid core is excellent for long distance transmission and suited for installations. Great for High Speed NetworksOur CAT5E bulk cable is the most practical and economical solution for all your networking applications, it provides 350 MHz of bandwidth, and offers high speed, uninterrupted connection. The Quality and Convenience You NeedThis cable comes in a pull box for easy pulling, it features color striped pairs for easy identification, and a rip cord for easy stripping. also it uses a shielded twisted pair (STP) structure to retain a high quality signal when passing near high voltage or power cables.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 1000ft [305m] |
| Cable Diameter | 5.90 mm |
| Number of Pairs | 4 Pairs |
| Twisted Pair Diameter | 3.80 mm (±0.20 mm) |
| Color of Pairs | White-Blue White-Green White-Orange White-Brown |
| Wire Gauge | 24AWG Solid |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Cable Shielding | 100% Aluminum Foil Shield |
| Rip Cord |
Yes - Nylon |
| Temperature Rating | 75ºC |
| Approvals | |
| UL | Yes |
| CSA | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
|
Product Weight |
26.50 lbs [12.02 kg] |
| SKU | Options | Weight |
| BK-C5ESL-4BKS | Black | 25.0 lb |

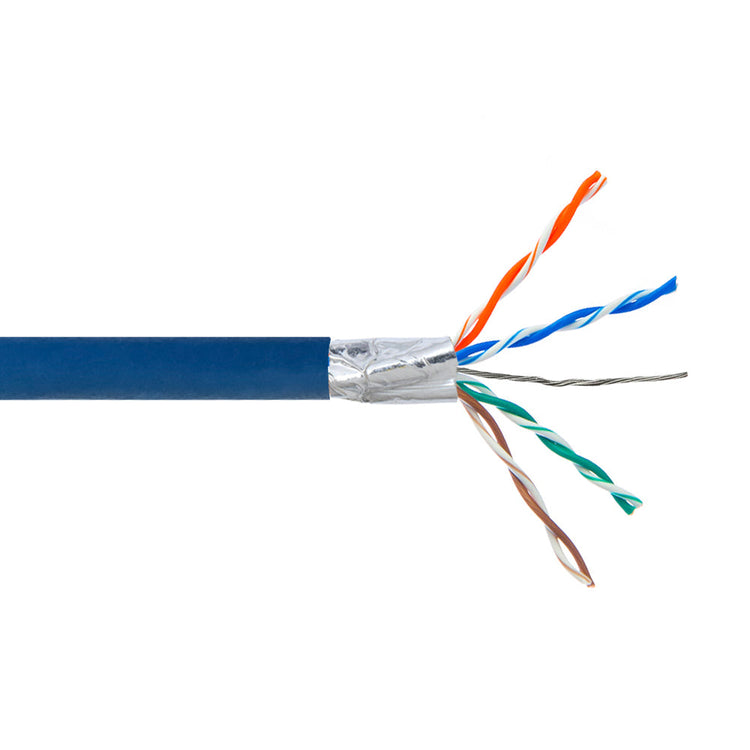

| BK-C5ESL-4BLS | Blue | 25.0 lb |

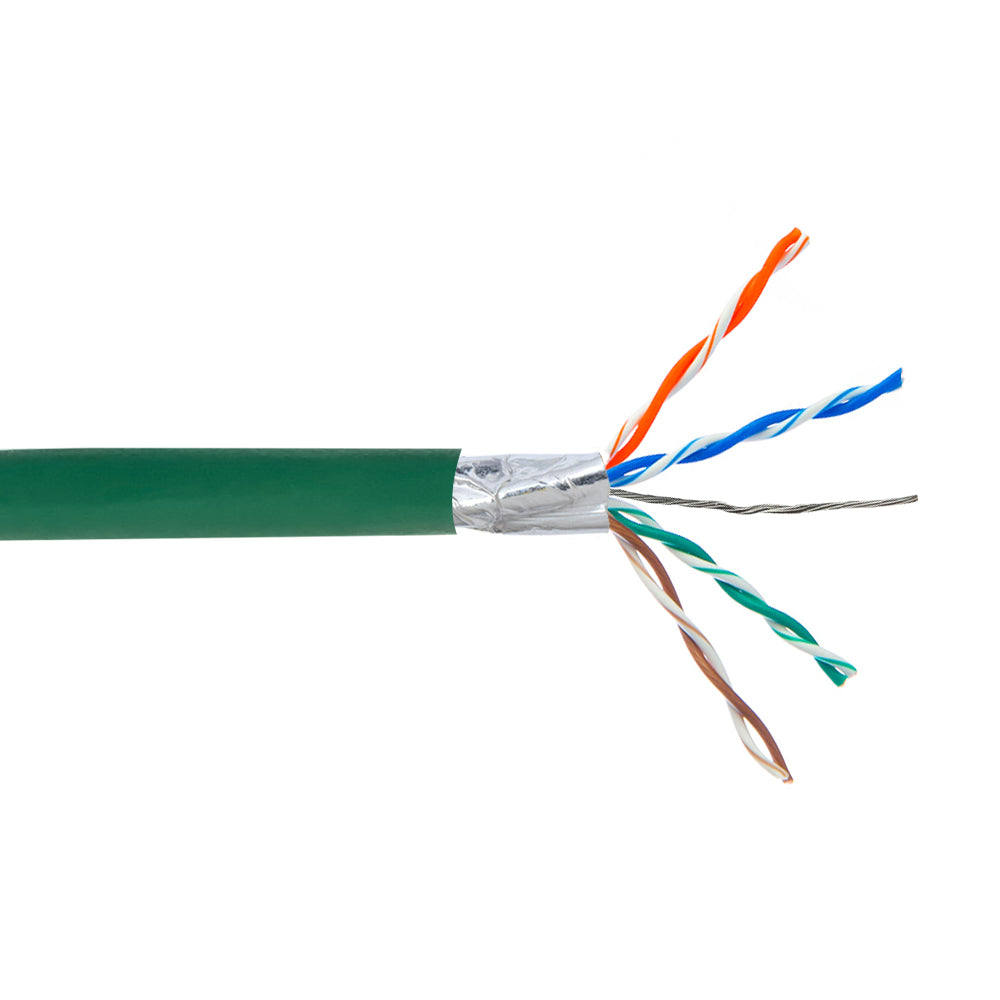

| BK-C5ESL-4GNS | Green | 25.0 lb |

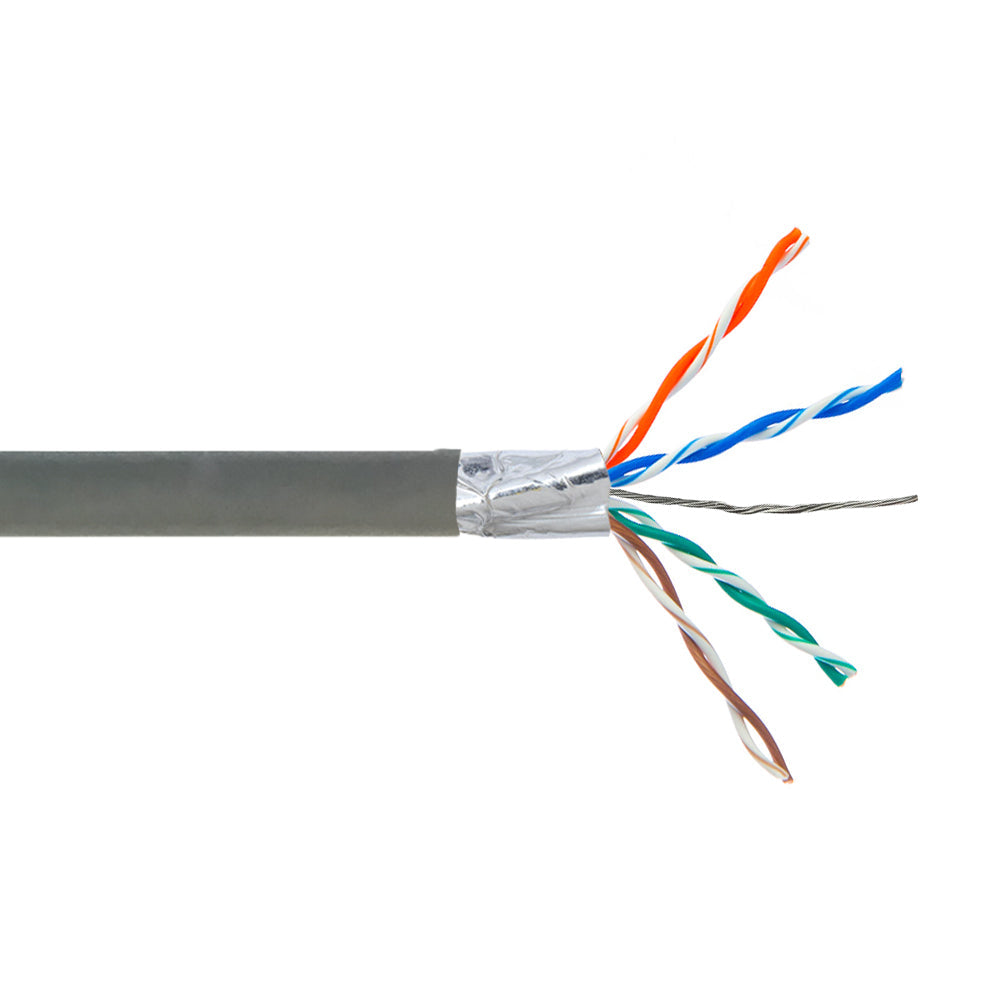

| BK-C5ESL-4GYS | Grey | 25.0 lb |

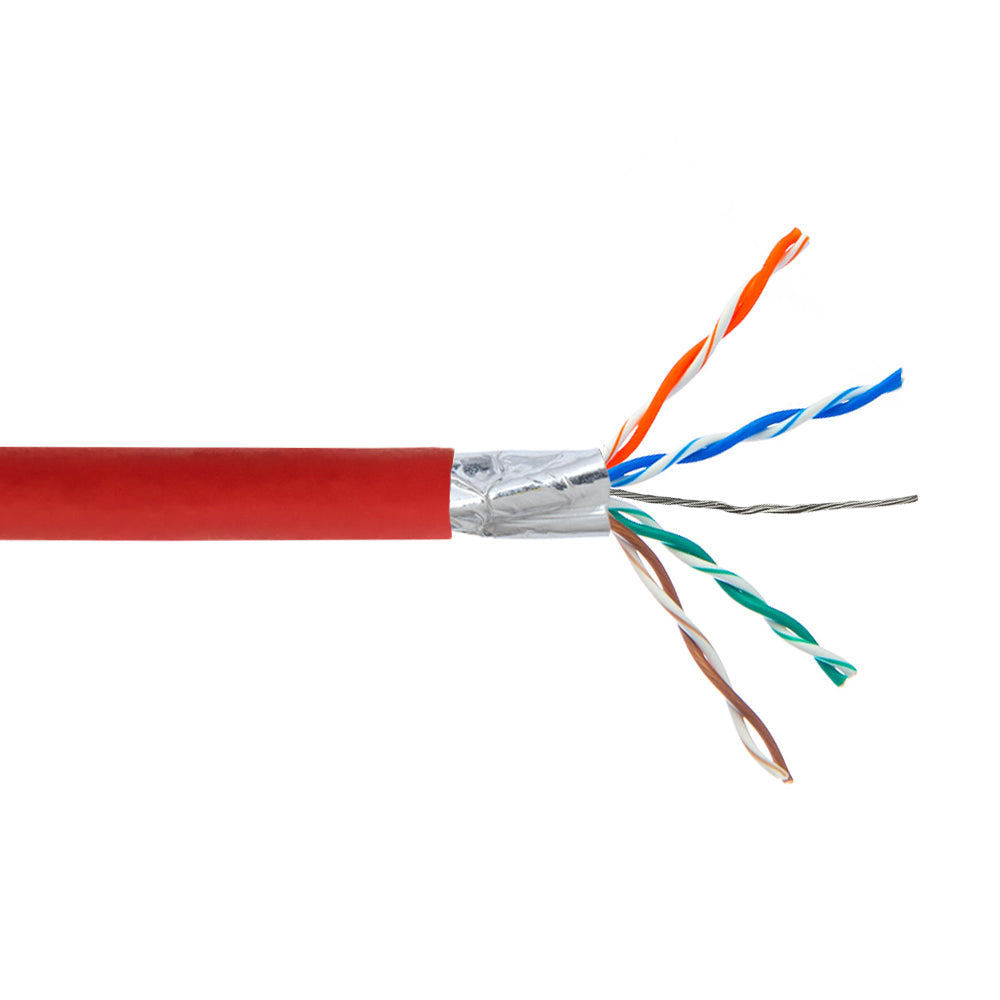

| BK-C5ESL-4RDS | Red | 25.0 lb |
| BK-C5ESL-4WHS | White | 25.0 lb |

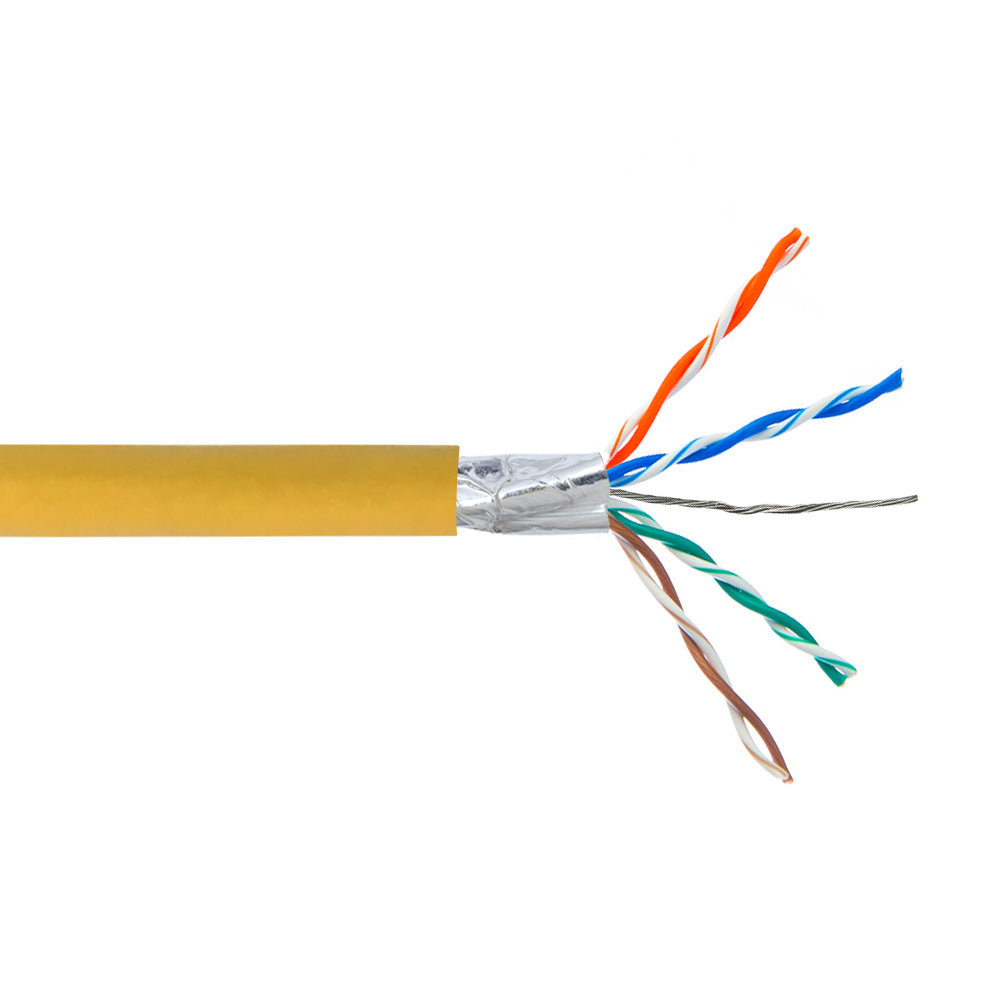

| BK-C5ESL-4YLS | Yellow | 25.0 lb |
