Description

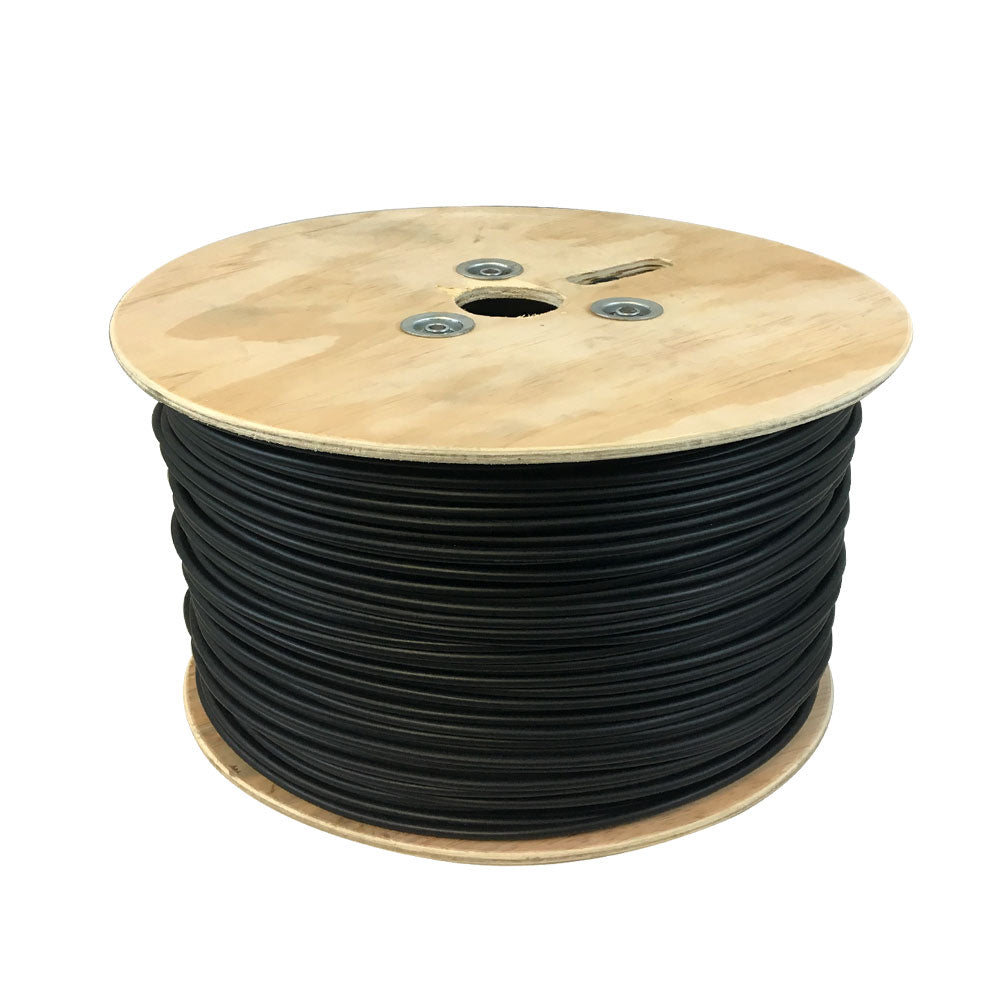

This bulk riser audio cable consists of 2 conductors of 22AWG stranded wire, is black in color and 1000 feet in length. It is typically used to interconnect audio devices in riser environments.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Cable Diameter | 6mm |
| Number of Conductors | 2 Conductors |
| Wire Gauge | 22AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Stranding Count & Diameter | 27/0.12mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR Riser (FT4) |
| Cable Shielding | 90% Copper Braid, 100% Mylar Foil |
| Temperature Rating | -10ā to 60ā |
| Electronic |
|
| AC Voltage withĀ StandingĀ | 2500V/ 1 minute |
| InsulationĀ Resistance@20ā | Above 50 mĪ©/Km & above (20ā) |
| Conductor Resistance@20ā | BelowĀ 64.85 mĪ©/Km &Ā belowĀ (20ā) |
| Approvals | |
| c(UL) | No |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 28.16 lbs |
