Description

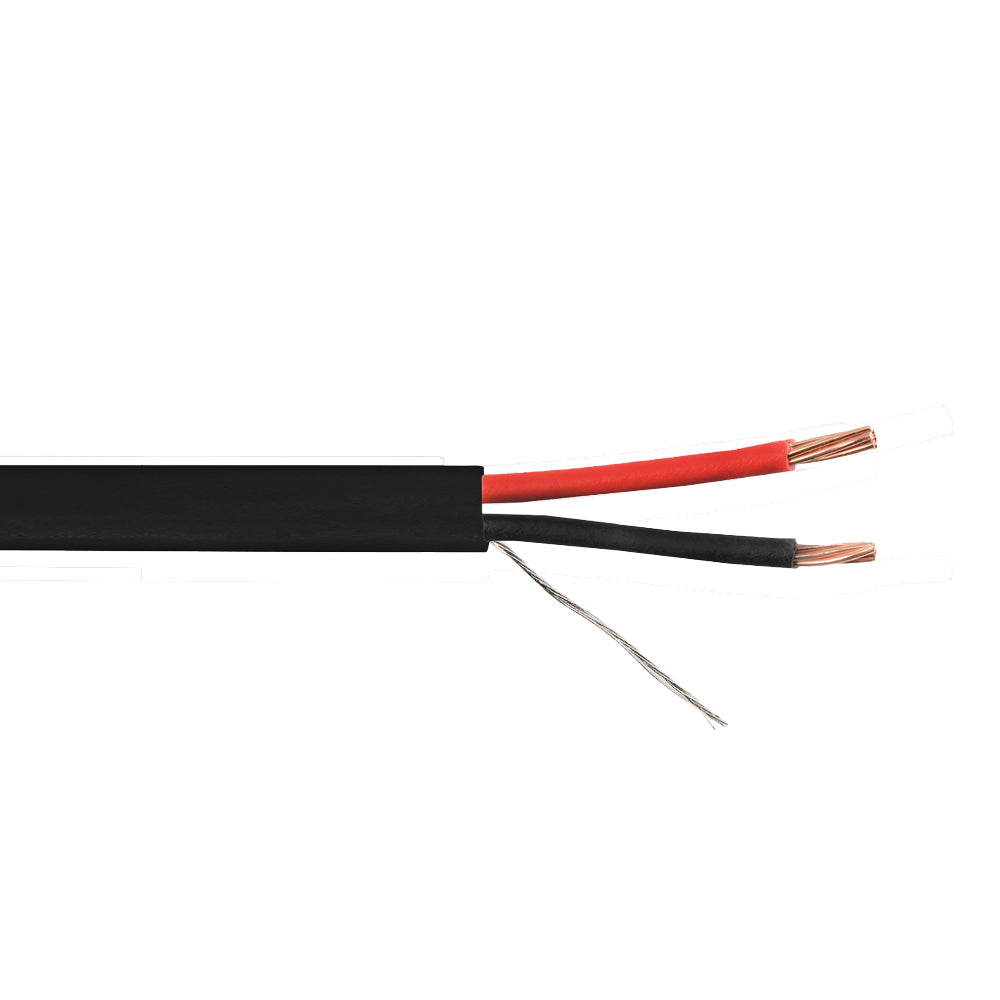

This 2 conductor 18AWG stranded outdoor UV rated control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|

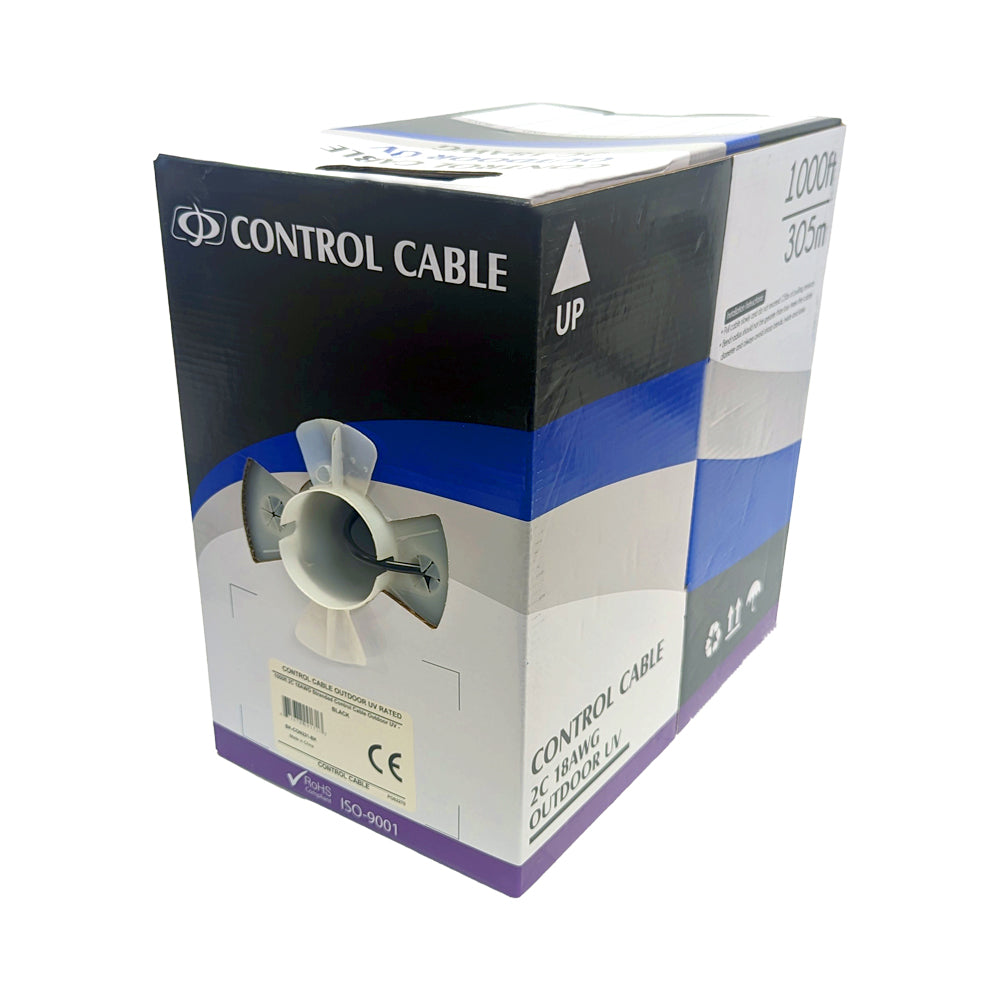

| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | Black |
| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | LLDPE |
| Average Jacket Thickness | 0.50mm |
| Minimum Jacket Thickness | 0.45mm |
| Jacket Outer Diameter | 4.40±0.10mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Average Insulation Thickness | 0.270mm |
| Minimum Insulation Thickness | 0.24mm |
| Insulation Outer Diameter | 16/0.254±0.005mm |
| Wire Gauge | 18 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Bare Copper |
| Ripcord | Nylon |
| Tensile Strength | Unaged: ≥10.6Mpa Aged: ≥ 85% |
| Elongation | Unaged: ≥300% Aged: ≥50% |
| Cold Bend Test (-20±2oCx4hrs) | No Crack |
| Conductor Resistance | Max 22.8ohm/km at 20℃ |
| Insulation Resistance | Min 50MΩ•km at 20℃ |
| Temperature Rating | -40°C to +75°C |
| Approvals | |
| CE | Yes |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 22.53 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-CON221-BK | 21.0 lb |
