Description

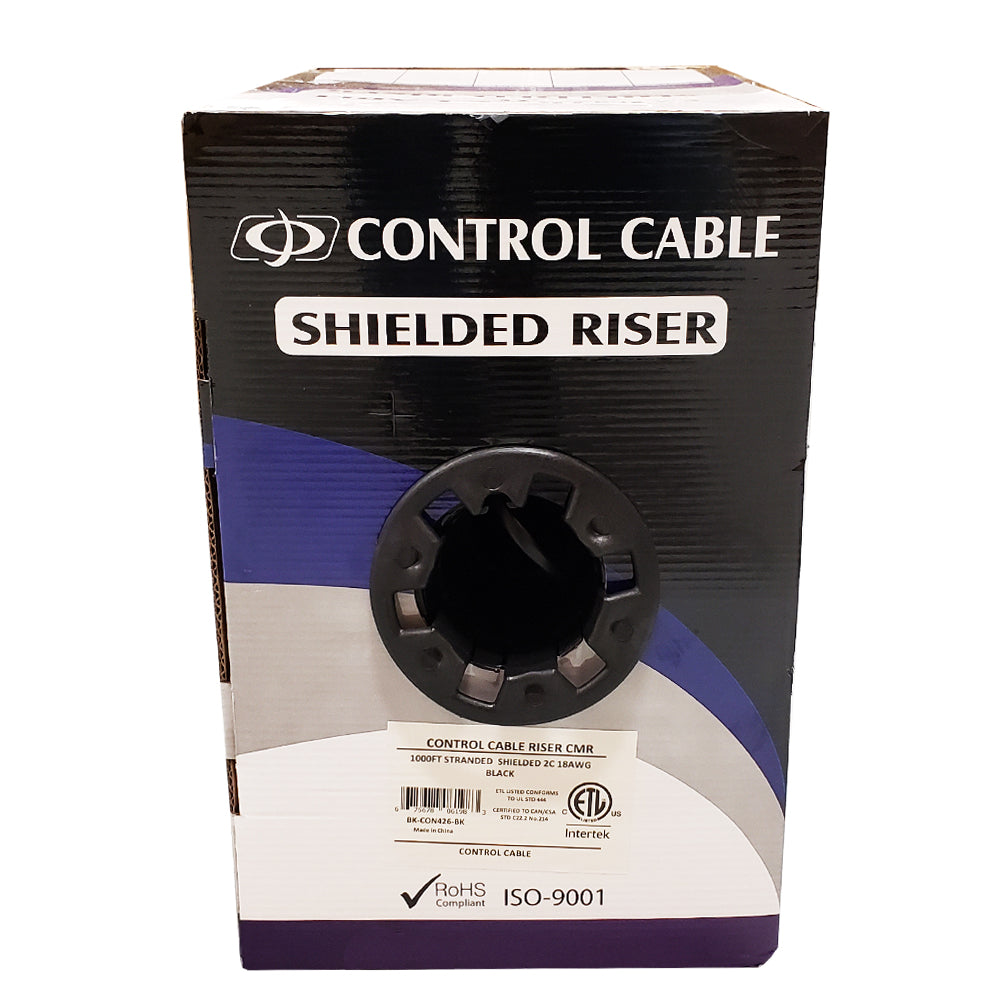

This 2 conductor 18AWG stranded shielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | Black |
| Number of Conductors | 2 Conductors (Red/Black) Oxygen Free Copper (OFC) |
| Jacket Material | PVC |
| Nominal Overall Diameter | 5.2mm |
| Nominal Jacket Thickness | 0.45 mm |
| Insulation Material | PVC |
| Wire Gauge | 18 AWG |
| Material | Bare Copper |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 1.9mm |
| Drain Wire | 7/0.20mm Tinned Copper |
| Shielding | Aluminum Foil |
| Ripcord | Nylon |
| Temperature Rating | -20℃ ~ 75℃ |
| Operating Voltage | 300V |
| Nominal Capacitance Conductor to Conductor | 173.9 pF/m |
| Nominal Capacitance Conductor to Conductor & Shield | 331 pF/m |
| Mechanical Characteristics | |
| Before Tensile Strength (Mpa) | >=13.8 |
| Aging Elongation (%) | >=100 |
| Aging Condition (℃xhrs) | 100x168 |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Aging Elongation (%) | >=50% of unaged |
| Cold Bend (-20±2º Cx4hrs) | No Crack |
| Certifications | |
| c(ETL)us | Yes |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 28.45 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-CON426-BK | 28.45 lb |
