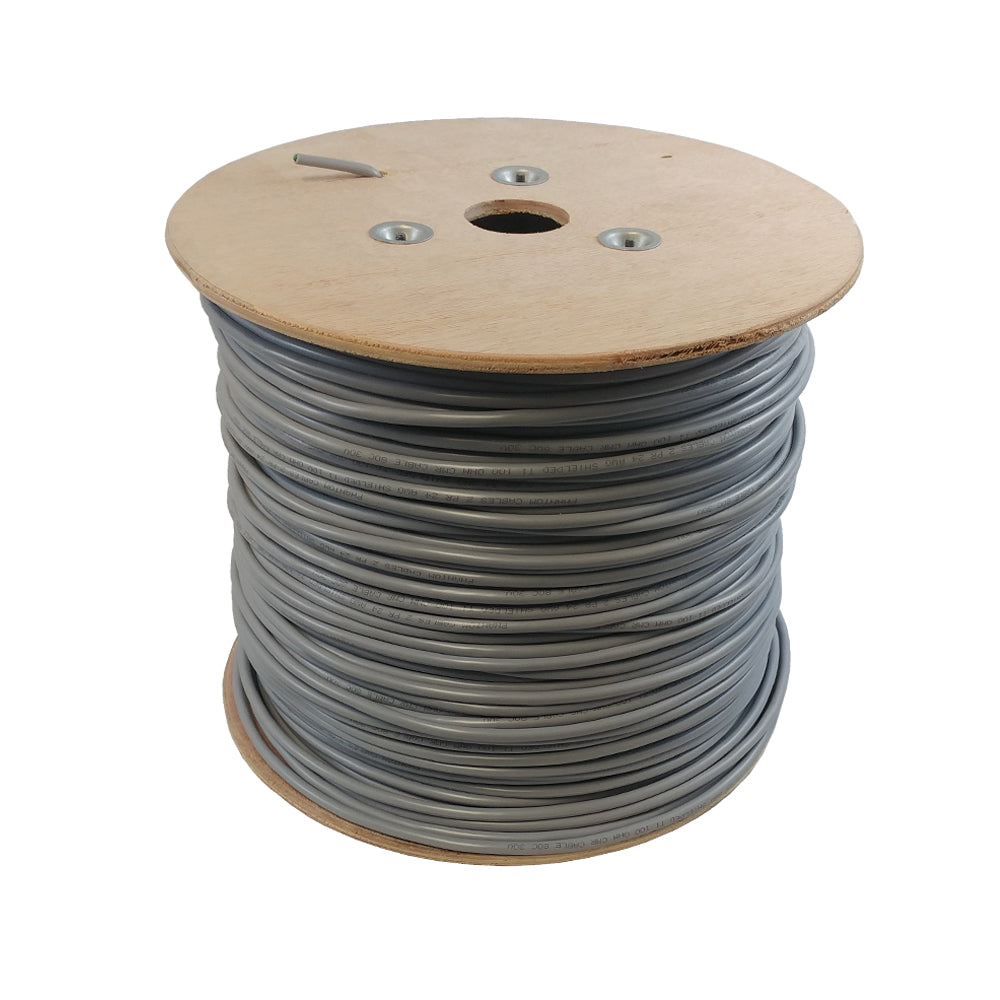

1000ft 2 Pair 24AWG Individually Shielded 100 Ohm T1 Cable - Grey

T1 Bulk CableSKU: BK-T1

Price:
Sale price$200.74 USD
Stock:
In stock

This item does not qualify for free shipping.

Description

This bulk T1 cable is 1000ft in length and consists of 2 pair of 24 gauge shielded wire. It is designed to be used specifically for T1 telecommunication applications.

Physical Characteristics
Cable Length 1000 foot [304m]
Color Grey
Cable Diameter 6.70±0.30 mm
Number of Conductors 2 Pairs
Wire Gauge 24AWG - Solid
Conductor Material 100% Tinned Copper
Conductor Size 1/0.51±0.01mm
Insulation Nominal Thickness Insulation 1: 0.16mm
Insulation 2: 0.31mm
Insulation Material Insulation 1: HD-PE
Insulation 2: FM-PE
Insulation Outer Diameter Insulation 1: 0.83±0.05
Insulation 2: 1.45±0.05
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CMR
Jacket Nominal Thickness 0.70mm
Drain Material Tinned Copper
Drain Size 1/0.51±0.01mm
Impedance 100 Ohm
Temperature Rating 80 deg C
Electrical Characteristics
Voltage 30V
Voltage Withstand AC 500V/1min, NO Breakdown
Insulation Resistance Min. 100M ohms/cable at 20 deg C
Conductor Resistance at 20 deg C
24AWG:Solid<91.16?/KM
Differential Impedance 100±10%ohms (Nominal)
Mechanical Characteristics
Test on Jacket Aged Temperature: 113? Time: 168h
Tensile Strength Unaged>1500PSI
Aged>70% of the result with unaged specimens
Elongation Unaged>100%
Aged>65% of the result with unaged specimens
Flame Test Horizontal Flame - Pass
Spark Test 100% Pass
Approvals
c(UL) No
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 35.2 lbs
SKU Weight
BK-T1 35.2 lb
