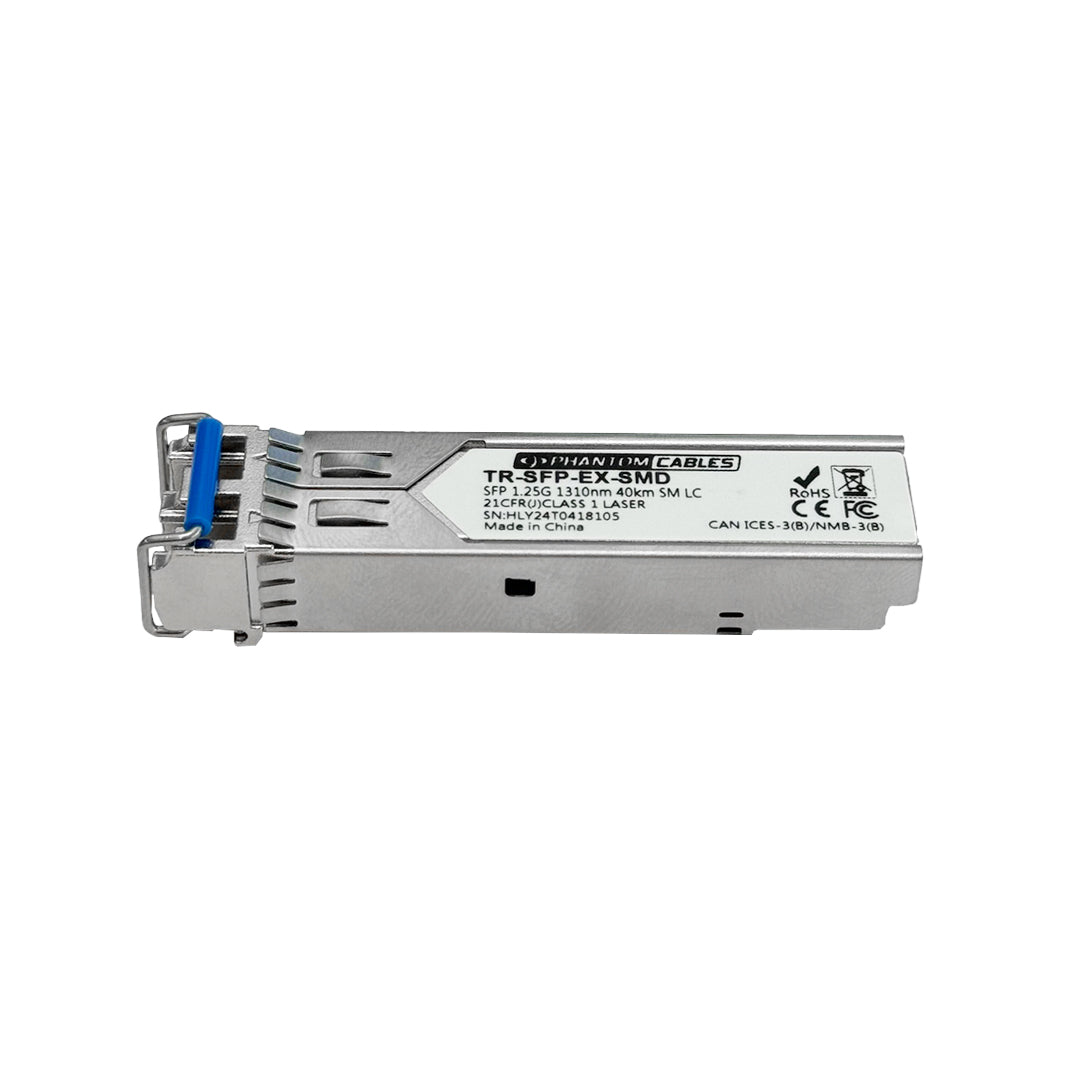

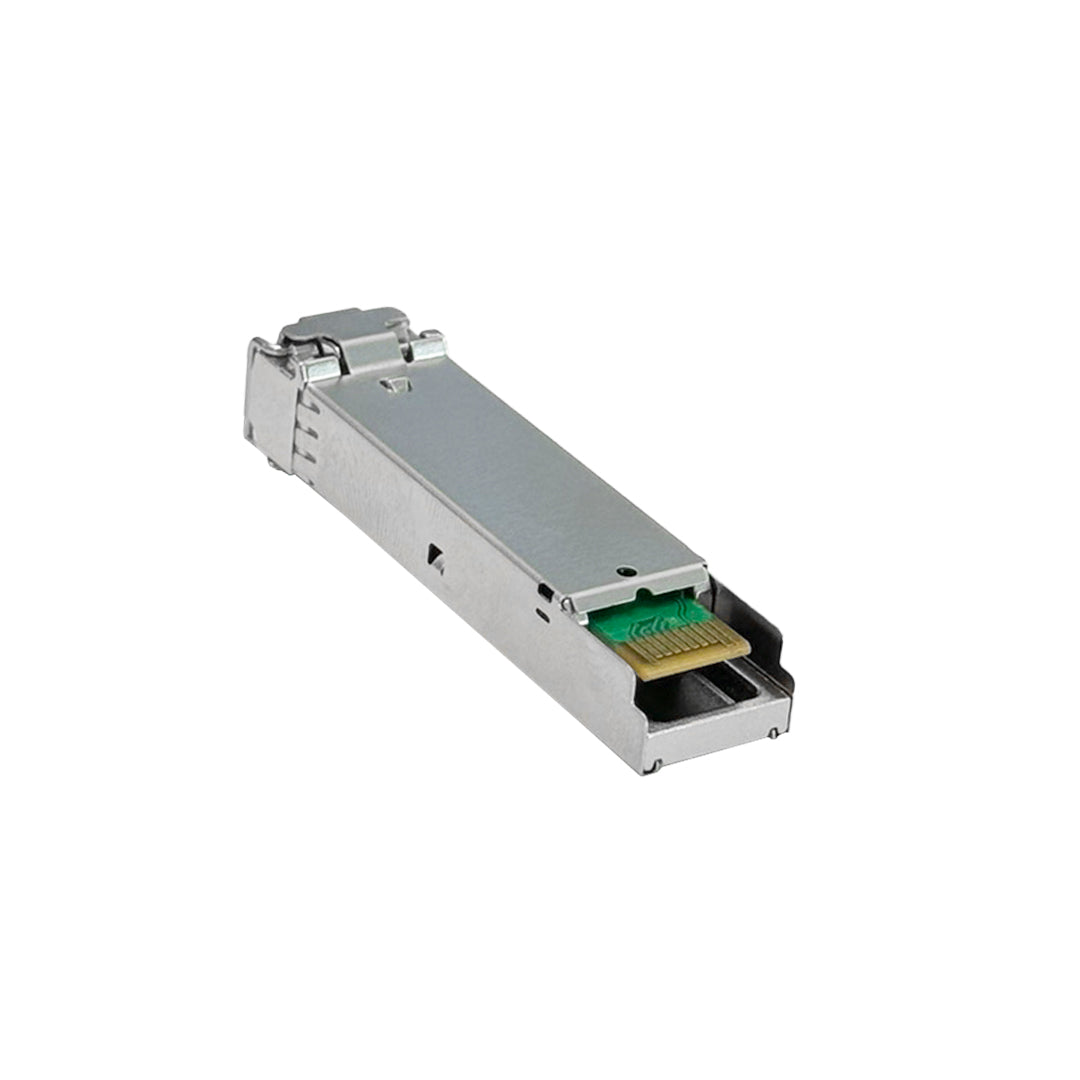

This industrial grade Small Form-factor Pluggable (SFP) transceiver module has a maximum data transfer rate of 1.25 Gbps with extended distance of 40km over singlemode fiber cable and wide temperature range of -40 to 85°C. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Features:
- Data-rate of 1.25Gbps operation
- 1310nm DFB laser and PIN photodetector for 40km transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with RoHS
- Compatible with SONET OC-24-LR-1
- Operating case temperature: -40 to +85°C
- +3.3V single power supply
Applications:
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Specifications
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | -40 to 85°C | |
| Operating Humidity | 5% ~ 85% | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Duplex | |
| Performance | ||
| Media Supported | 1000Base-LX Singlemode Fiber |
|
| Maximum Transmission Distance | 40km |
|
| Wave Length | 1310nm | |
| Data Transfer Rate | 1.25 Gbps | |
| DDM Support | Compliant | |
| Certifications | ||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
- Avaya
- Force10
- D-Link
- EMC2
- F5 Networks
- Hirschmann
- Linksys
- Moxa
- MRV
- Netgear
- Nokia Siemens Networks
- Palo Alto Network
- Qlogic
- RAD
- Ruijie Networks
- Supermicro
- Synology
- Telco Systems
- TP-Link
- Trendnet
- Ubiquit
- WatchGuard
- ZTE
5-YEAR WARRANTY
Infinite Cables Inc. offers a 5-year warranty on this products to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
