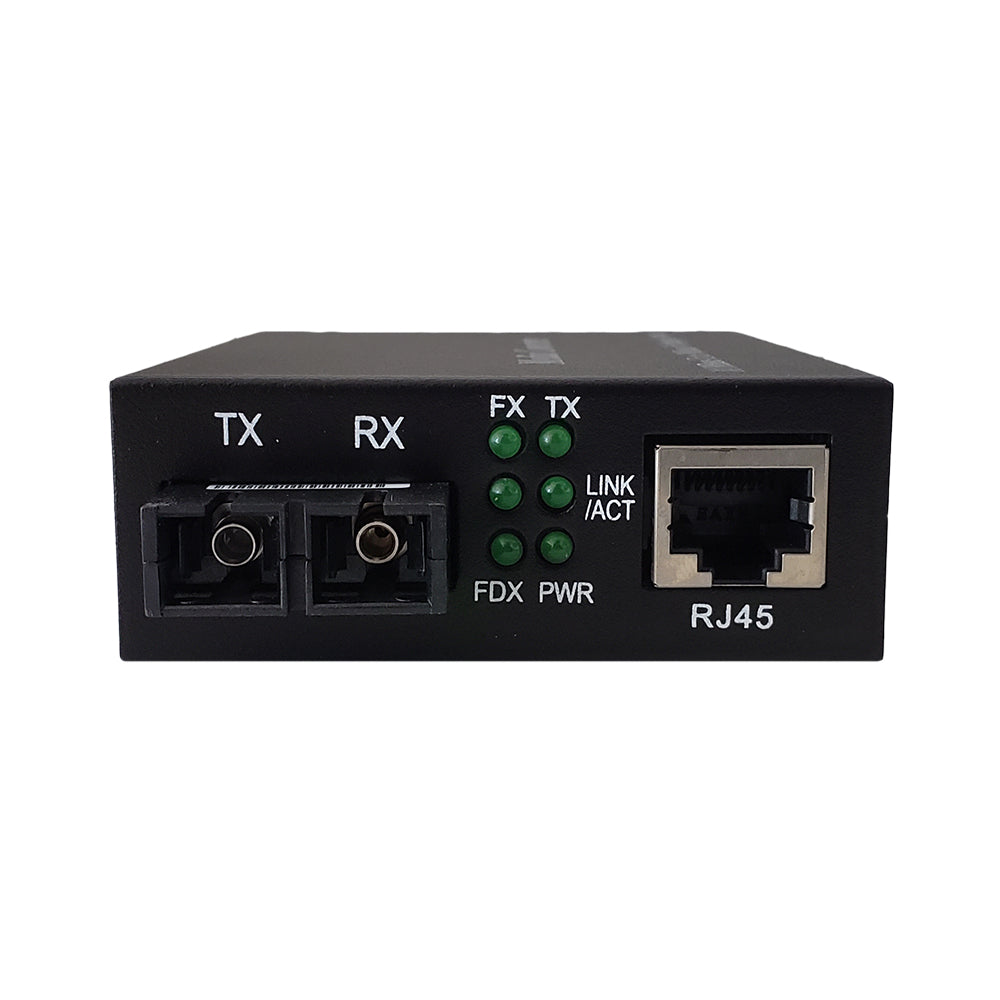

This singlemode fiber optic media converter can extend a 10/100 Mbps Ethernet connection up to 30 km over a singlemode SC fiber optic cable. The converter can be used as a standalone unit or in pairs. It can also be mounted into a 19" media converter chassis.
| Physical Characteristics |
|---|
| Color |
Black |
| Dimensions |
94mm x 72mm x 25mm (L x W x H) |
| Housing |
Metal |
| Operating Temperature |
0ā ~ 50ā |
| Relative Humidity |
5% to 8% (non-condensation) |
| Standards |
IEEE802.3, IEEE802.3U, 10/100Base-TX, 10/100Base-FX |
| Power |
|---|
| Power Supply |
1A@+5VDC or 110-260VAC or 48VDC
|
| Power Consumption |
2.5W |
| Connectors |
|---|
| Fiber Connector |
SC |
| Ethernet Connector |
RJ45 UTP |
| Performance |
|---|
| Media Supported |
Singlemode Fiber (8.3/125um, 9/125um, 10/125um) |
| Referenced Transmission Distance |
Dual-Fiber Singlemode: 30km |
| Data Forward Rate |
10Mbps: 14,880pps
100Mbps: 148,800pps |
| Features |
High-Performance Kernel, Broadcast Storm Control, Flow Control, CRC Error Checking |
| LED |
FX Link/Act (Connection status display for fiber link)
TX Link/Act (Connection status display for electric link)
PWR (power is on)
FDX (transceiver works in full duplex mode)
FX (fiber signal is detected)
TX (transfer rate of UTP interface is 100Mbps
|
| Certifications |
|---|
| CE |
Yes |
| FCC |
Yes |
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.85 lbs [0.03kg] |
| Warranty Information |
|---|
| Warranty |
1 Year |
