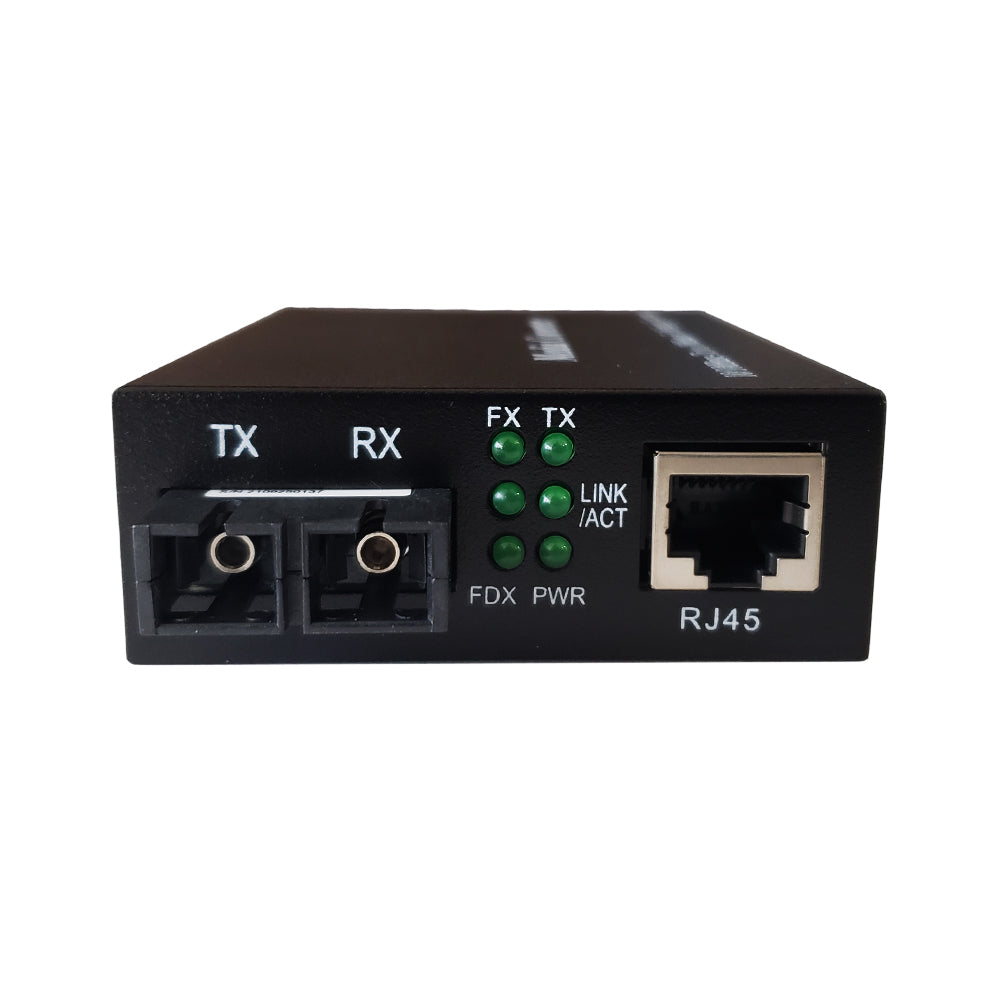

This multimode fiber optic media converter can extend a 10/100 Mbps Ethernet connection up to 2 km over a multimode SC fiber optic cable. The converter can be used as a standalone unit or in pairs. It can also be mounted into a 19" media converter chassis.
Note: Should be used in pairs.
|
Physical Characteristics
|
| Color |
Black |
| Dimensions |
94mm x 72mm x 25mm (L x W x H) |
| Housing |
Metal |
| Operating Temperature |
0°C ~ 50°C |
| Relative Humidity |
5% to 8% (non-condensation) |
| Standards |
IEEE802.3, IEEE802.3U, 10/100Base-TX, 100Base-FX |
|
Power
|
| Power Supply |
1A@+5VDC or AC110V-265VAC or 48VDC |
| Power Consumption |
2.5W |
|
Connectors
|
| Fiber Connector |
SC |
| Ethernet Connector |
RJ45 UTP |
|
Performance
|
| Media Supported |
10Base-T: CAT3, 4, 5, UTP/STP, Max 100m
100-Base-TX: CAT5 UTP/STP, Max 100m
Multi-model fiber (50/125um, 62.5/125um) |
| Referenced Transmission Distance |
Dual-Fiber Multimode - 2km
|
| Optical wavelength |
1310nm |
| Data Forward Rate |
10Mbps (14,880pps)
100Mbps (148,800pps) |
| Features |
Flow Control, |
|
LED Status Description
|
| LED |
Function |
Status |
Description |
| PWR |
Power LED |
ON |
Power is ON |
| OFF |
Power is OFF |
| LINK/ACT FX |
Fiber Port Link/Action Status LED |
ON |
Fiber Port is Linked |
| BLINK |
Fiber Port is Active |
| OFF |
Fiber Port is Not Linked |
| LINK/ACT TX |
UTP Port Link/Action Status LED |
ON |
UTP Port is Linked |
| BLINK |
UTP Port is Active |
| OFF |
UTP Port is Not Linked |
| FDX |
Duplex Mode |
ON |
TX works in full duplex mode |
| OFF |
TX works in half duplex mode |
| FX |
Fiber signal |
ON |
Fiber signal is detected |
| OFF |
Fiber signal is undetected |
| TX |
Transfer rate |
ON |
Transfer rate of UTP interface is 100Mbps |
| OFF |
Transfer rate of UTP interface is 10Mbps |
|
|
Certifications
|
| CE |
Yes |
| FCC |
Yes |
| RoHS |
Yes |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.85 lbs [0.03kg] |
|
Warranty Information
|
| Warranty |
1 Year |
