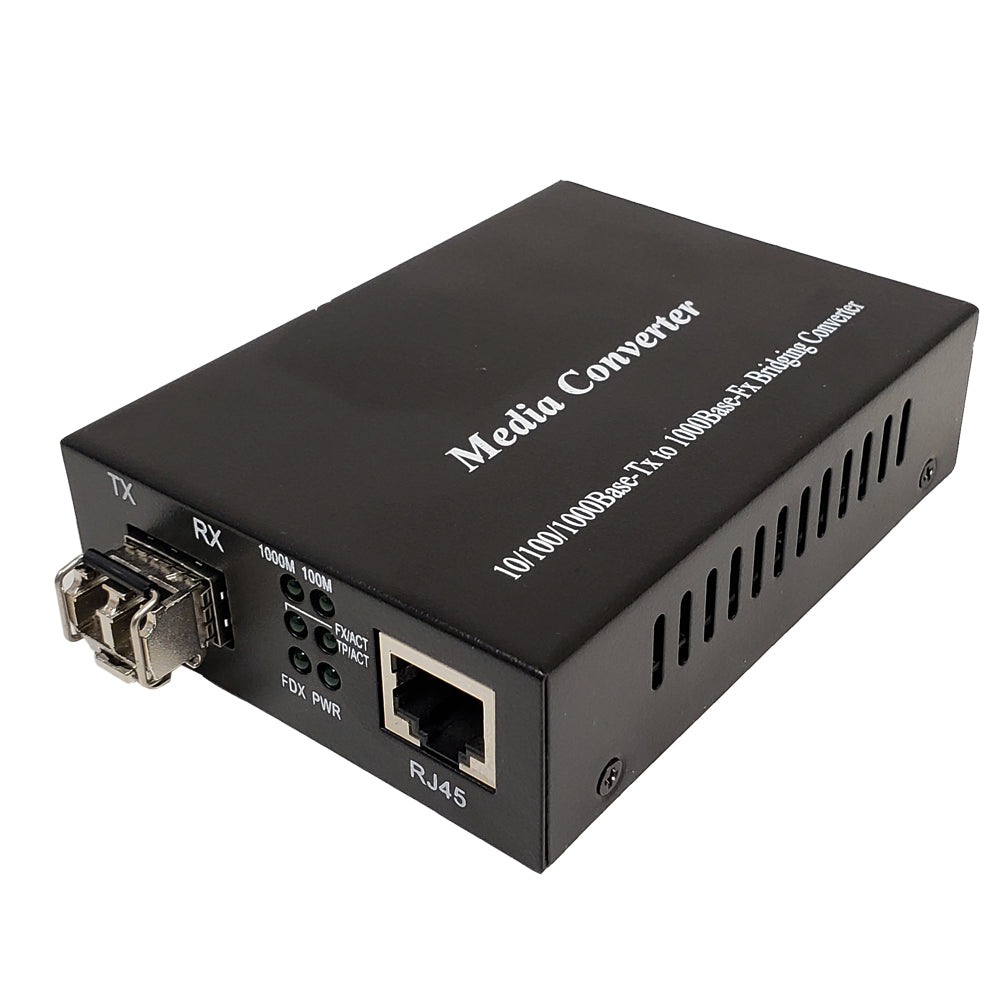

This singlemode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 40km over a singlemode ST fiber optic cable. The converter can be used as a standalone unit or in pairs.
Features
- Supporting IEEE802.3 10 Base-T standard, IEEE802.3u 100Base-TX/FX standard
- Supporting maximum 2M buffer memory built in chip
- Supporting back pressure flow control for full duplex IEEE 802.3X and half duplex
- Supporting automatic identification of MDI/MDI-X cross line
- Supporting high performance 1.4Gbps memory bandwidth
| Physical Characteristics |
|---|
| Color |
Black |
| Dimensions |
98mm x 71mm x 26mm (L x W x H) |
| Housing |
Metal |
| Operating Temperature |
0ā ~ 60ā |
| Relative Humidity |
5% to 90% (non-condensation) |
| Standards |
IEEE802.3 10 Base-T
IEEE802.3u 100Base-TX/FX
|

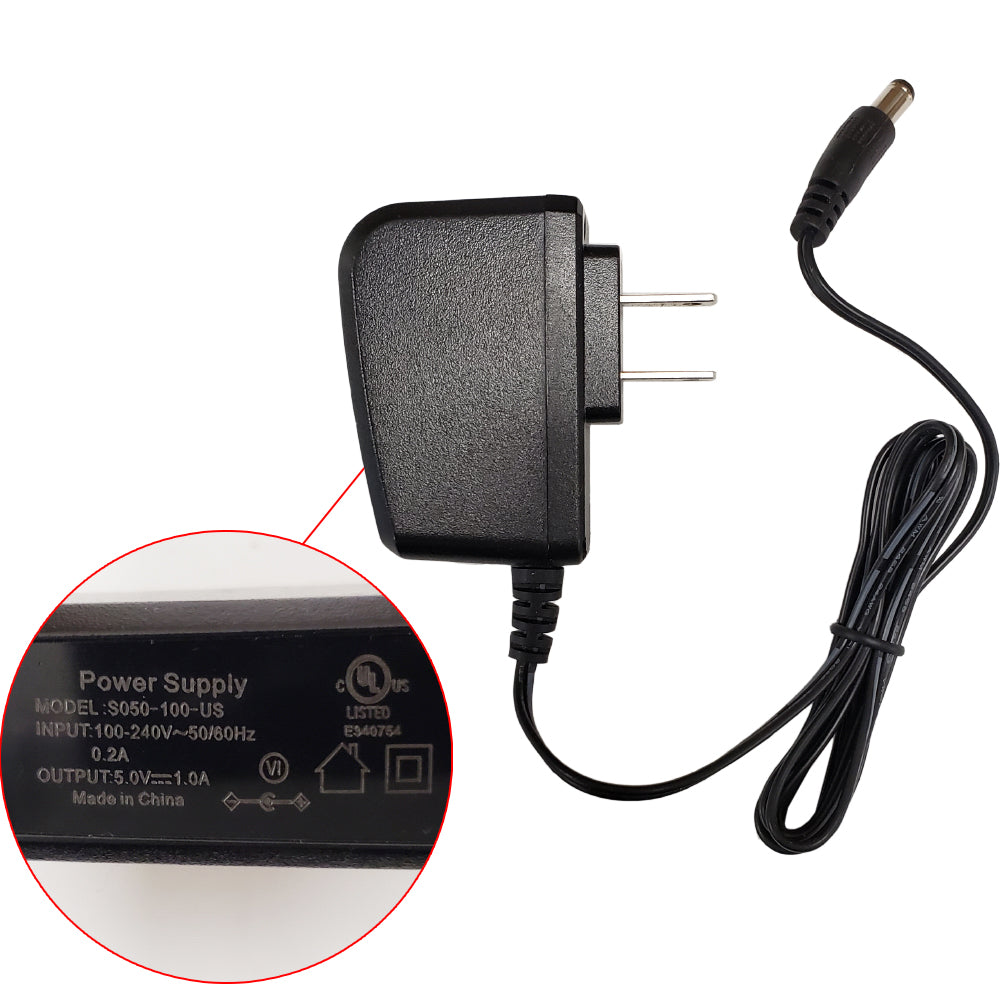

| Power |
|---|
| Power Supply |
Outside: 5V DC 2A
Built-in: 110-265V AC 48VDC |
| Connectors |
|---|
| Fiber Connector |
ST |
| Ethernet Connector |
RJ45 UTP |
| Performance |
|---|
| Transmission Distance |
8.3/125, 8.7/125, 9/125 or 10/125um
40km
|
| Data Forward Rate |
10Mbps, 100Mbps, 1000Mbps |
Wavelength
|
1310nm |

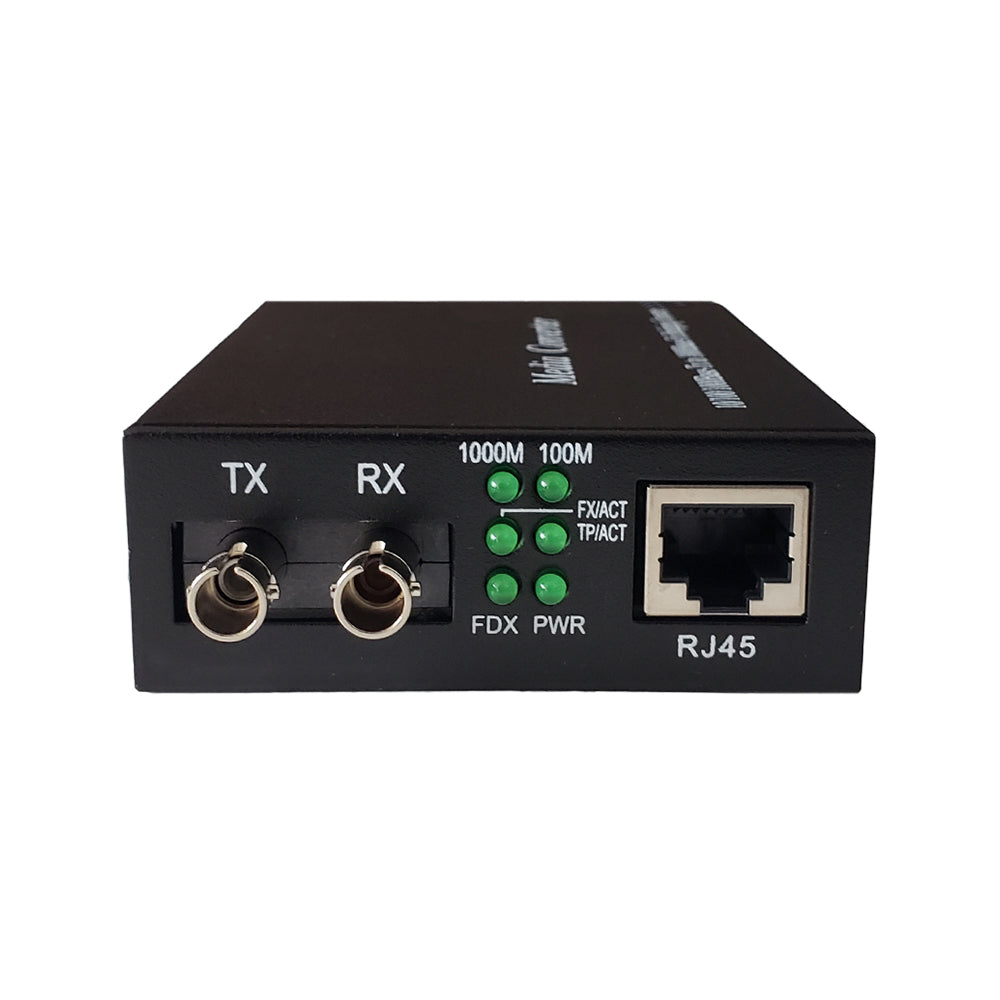

| LED Status Description |
|---|
| LED |
Function |
Status |
Description |
| PWR |
Power LED |
ON |
Power is ON |
| OFF |
Power is OFF |
| 100M |
UTP port |
ON |
Laser is Receiving |
| FX/ACT |
Fiber Port Link/Action Status LED |
ON |
Fiber Port is Linked |
| BLINK |
Fiber Port is Active |
| OFF |
Fiber Port is Not Linked |
| 1000M |
UTP Port Speed LED |
ON |
1000M Speed |
| TP/ACT |
UTP Port Link/Action Status LED |
ON |
UTP Port is Linked |
| BLINK |
UTP Port is Active |
| OFF |
UTP Port is Not Linked |
| FDX |
UTP Port Duplex LED |
ON |
Full Duplex |
| OFF |
Half Duplex |
|
| Certifications |
|---|
| CE |
Yes |
| FCC |
Yes |
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.85 lbs [0.03kg] |
| Warranty Information |
|---|
| Warranty |
1 Year |
