This singlemode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 40km over a singlemode SC fiber optic cable. The converter can be used as a standalone unit or in pairs. It can also be mounted into a 19" media converter chassis.
| Physical Characteristics |
|---|
| Color |
Black |
| Dimensions |
98mm x 70mm x 26mm (L x W x H) |
| Housing |
Metal |
| Operating Temperature |
0ā ~ 60ā |
| Relative Humidity |
5% to 90% (non-condensation) |
| Standards |
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3u 1000Base-TX/FX |
| Power |
|---|
| Power |
Outside: DC 5V 2A
Built-in: 110-265V AC 48VDC |
| Connectors |
|---|
| Fiber Connector |
SC |
| Ethernet Connector |
RJ45 UTP |
| Performance |
|---|
| Media Supported |
Standard Protocol: IEEE802.3 10Base-T Standard
IEEE802.3u 100Base-TX/FX Standard
Singlemode Fiber (8.3/125um, 8.7/125um or 10/125um) |
| Operation Mode |
Full Duplex Mode or Half Duplex Mode |
| Optical Wavelength |
1310nm |
| Optical Power |
0 ~ -5dbm |
| Sensitivity |
<- 24dbm |
| Referenced Transmission Distance |
Dual-Fiber Singlemode - 40km
|
| Data Forward Rate |
10Mbps, 100Mbps, 1000Mbps |
| Features |
In Conformity to IEEE802.3 10 Base-T Standard
In Conformity to IEEE802.3u 100Base-TX/FX Standard
Max 2M Buffer Memory Built in Chip
Back Pressure Flow Control for Full Duplex IEEE802.3 X and Half Duplex
Automatic Identification of MDI/MDI-X Cross Line
High Performance 1.4Gbps Memory Bandwidth
In Conformity to Safety Code of FCC and 15 CLASS A and CE MARK |

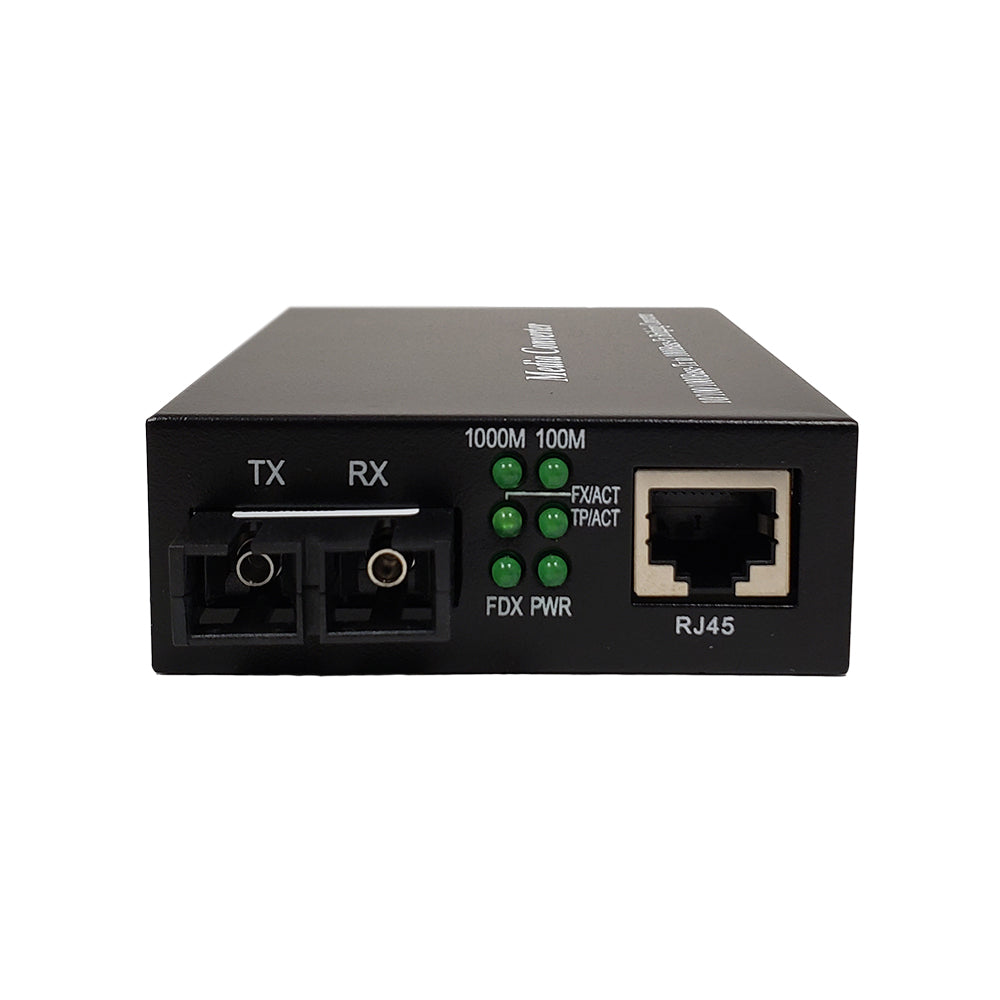

| LED Status Description |
|---|
| LED |
Function |
Status |
Description |
| PWR |
Power LED |
ON |
Power is ON |
| OFF |
Power is OFF |
| FX |
Fiber Single Detect LED |
ON |
Laser is Receiving |
| OFF |
No Laser Input |
| LINK/ACT FX |
Fiber Port Link/Action Status LED |
ON |
Fiber Port is Linked |
| BLINK |
Fiber Port is Active |
| OFF |
Fiber Port is Not Linked |
| 1000M |
UTP Port Speed LED |
ON |
1000M Speed |
| OFF |
100M Speed |
| LINK/ACT TX |
UTP Port Link/Action Status LED |
ON |
UTP Port is Linked |
| BLINK |
UTP Port is Active |
| OFF |
UTP Port is Not Linked |
| FDX/COL |
UTP Port Duplex LED |
ON |
Full Duplex |
| OFF |
Half Duplex |
|
| Certifications |
|---|
| CE |
Yes |
| FCC |
Yes |
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.85 lbs [0.03kg] |
| Warranty Information |
|---|
| Warranty |
1 Year |
