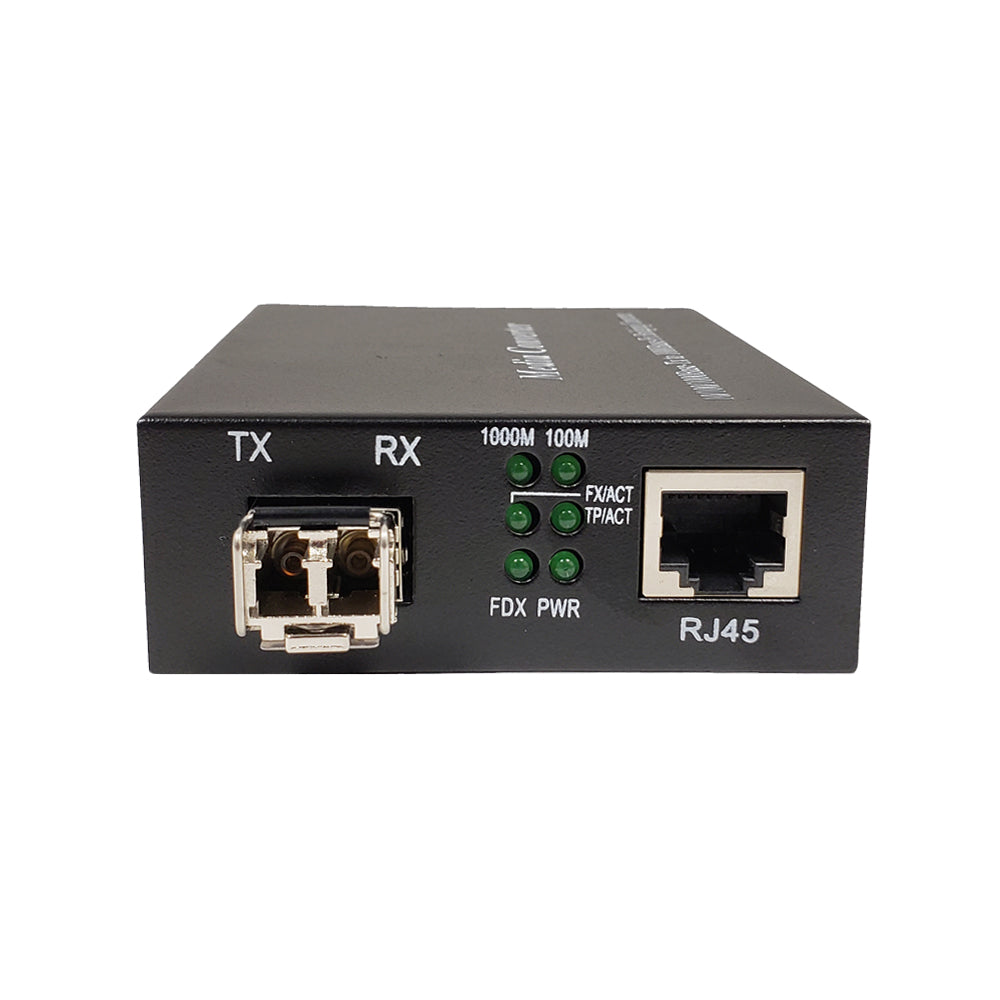

10/100/1000 Multimode Media Converter 550m LC (850nm)


Price:
Sale price$24.00 USD
Stock:
In stock

Description

This multimode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 550m over a multimode LC fiber optic cable. The converter can be used as a standalone unit or in pairs.Ā

Features

  • Supporting inter-conversion between10/100/1000Base-TX and 1000Base-SX
  • Supporting full-duplex and half-duplex and its auto-sensed
  • Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
  • Supporting the transmission of extra-long VLAN packets
  • Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
  • Supporting STP to form a redundant network
Physical Characteristics
Color Black
Dimensions 94mm x 70mm x 26mm (L x W x H)
Housing Metal
Operating Temperature -10ā„ƒ ~ 55ā„ƒ
Relative Humidity 5% to 90% (non-condensation)
Standards

IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX

Power

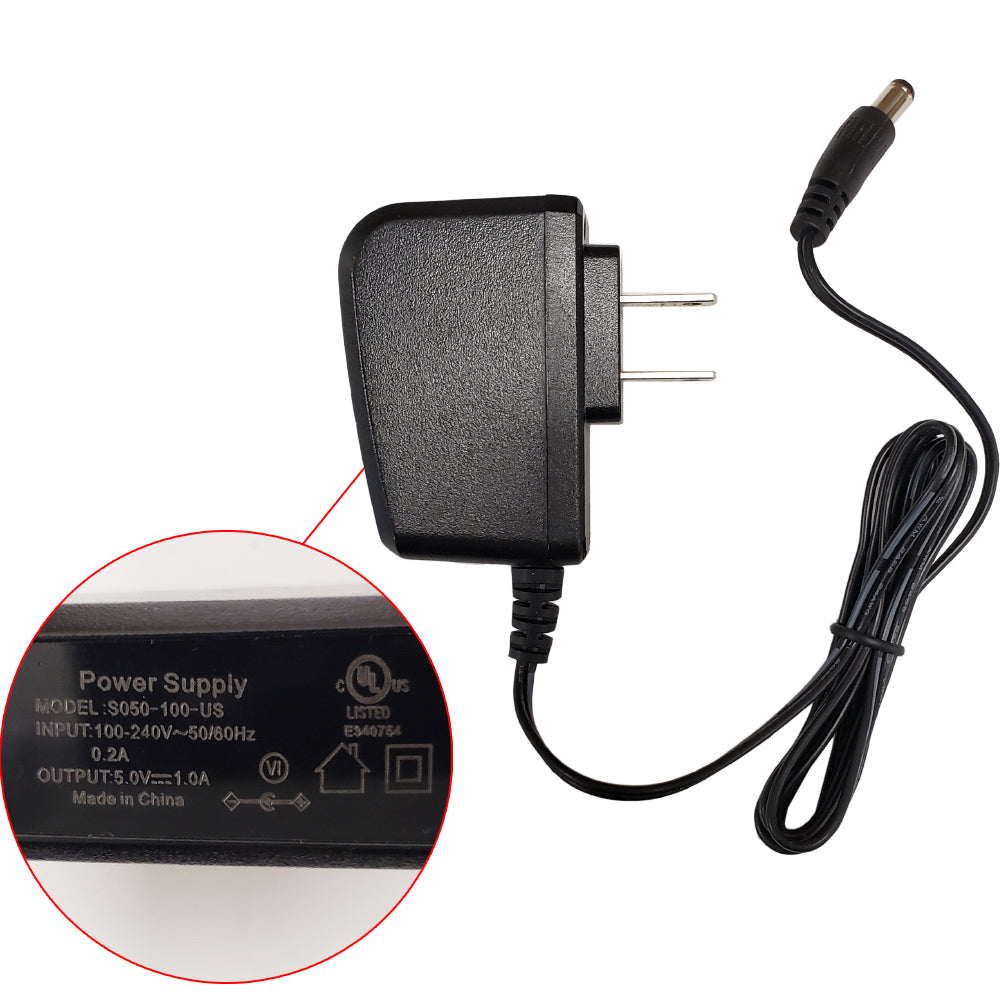

Power Supply

Input: 100-240VAC 50/60Hz
Output: DC 5V 1A

Power Consumption 5W
Connectors
Fiber Connector LC
Ethernet Connector RJ45 STP/UTP
Performance
Media Supported 10/100/1000Base-T and1000Base-SX/LX
Referenced Transmission Distance Duplex-Fiber 62.5/125 Multimode up to 220m
Duplex-Fiber 50/125 Multimode up to 550m

Data Forward Rate 10Mbps, 100Mbps, 1000Mbps
LED

PWR (power supply)

FX LINK (optical link action)

TP LINK1000 (twisted pair link1000M)

TP LINK100 (twisted pair link 100M)

TP ACT (twisted pair packet forwarding)
Certifications
CE Yes
FCC Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.85 lbs [0.03kg]
Warranty Information
Warranty 3 Year
SKU Weight
FO-MC2004 0.85 lb
