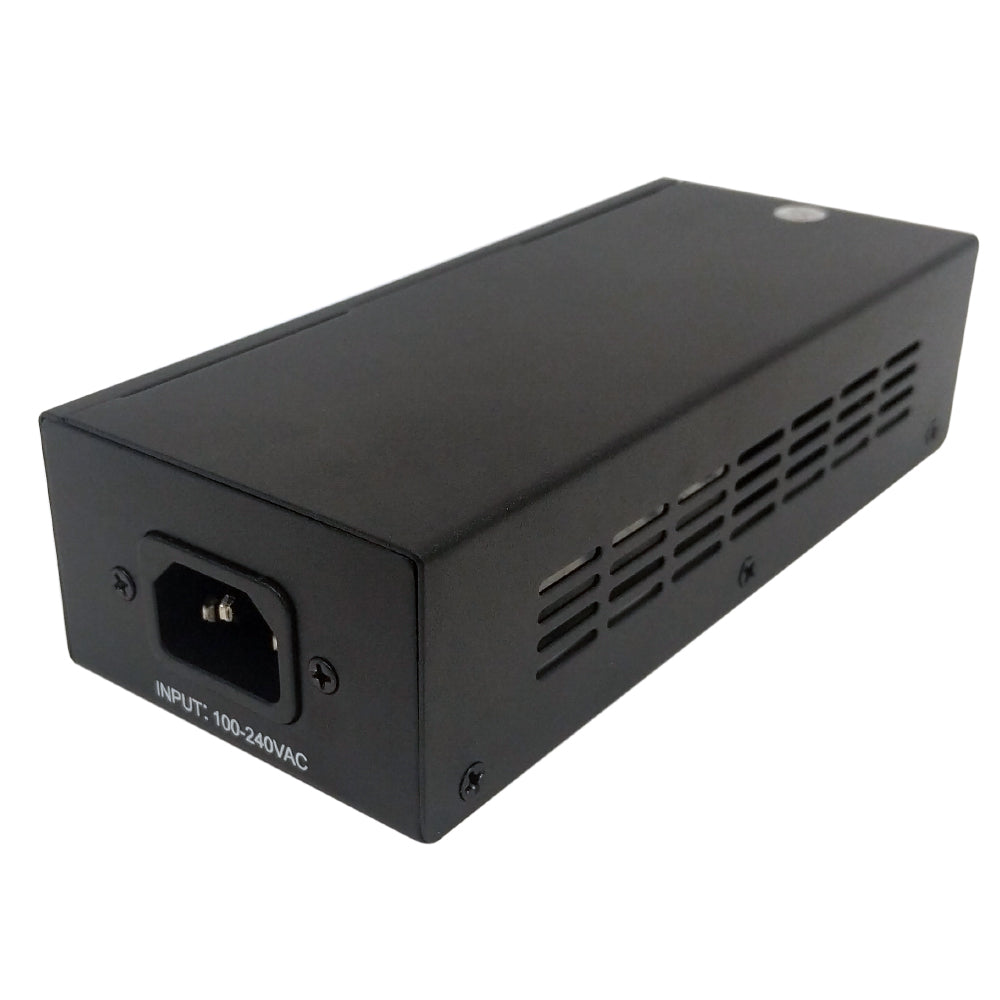

This compact 60 watts PoE injector is a single port passive PoE injector. It can convert standard 100 ~ 240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories and IP security cameras. No external power supply is required providing a compact, cost effective and reliable power solution over existing Ethernet infrastructure.
Features
Physical Characteristics | ||||
---|---|---|---|---|
No. of Channels | 1 | |||
Body Material | Metal Enclosure | |||
Operating Temperature | -0°C to 40°C | |||
Storage Temperature | -10°C to 50°C | |||
Operating Humidity |
Maximum 85% (no condensation) | |||
Storage Humidity | Maximum 90% (no condensation) | |||
Dimensions | 168 x 73.5 x 44mm | |||
Connectors | Shielded RJ45, EIA 568A and 568B | |||
Indicators | PWR Indicator: AC Power PoE Indicator: Channel Power |
|||
Performance | ||||
Pass Through Data Rates | 10/100/1000 Mbps | |||
Max Power | 60 Watts | |||
PoE Pin Assignment & Polarity | 1/2 (-), 3/6(+), 4/5(+), 7/8(-) | |||
PoE Output Voltage | DC 50V, 1.2A | |||
User Port Power | 30W & 60W | |||
AC Input Current/Voltage | 0.5A / 100 to 240 VAC | |||
Power Consumption | 1 Watts | |||
Frequency | 50 to 60 Hz | |||
Over Current Protection | Yes | |||
Over Load Protection | Yes | |||
Over Voltage Protection | Yes | |||
Anti-interference Protection | Yes | |||
Approval | ||||
c(UL)us | Yes | |||
CE, FCC | Yes | |||
Environmental | ||||
RoHS | Yes | |||
Warranty Information | ||||
Warranty | 2 Years | |||
Packaging Information | ||||
Package Quantity | 1 - PoE Injector 1- 3 foot C13 to 5-15P Power Cable |
|||
Product Weight | 1.36 lbs [0.62kg] |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on NVR/DVR's, network switches and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
