Overview

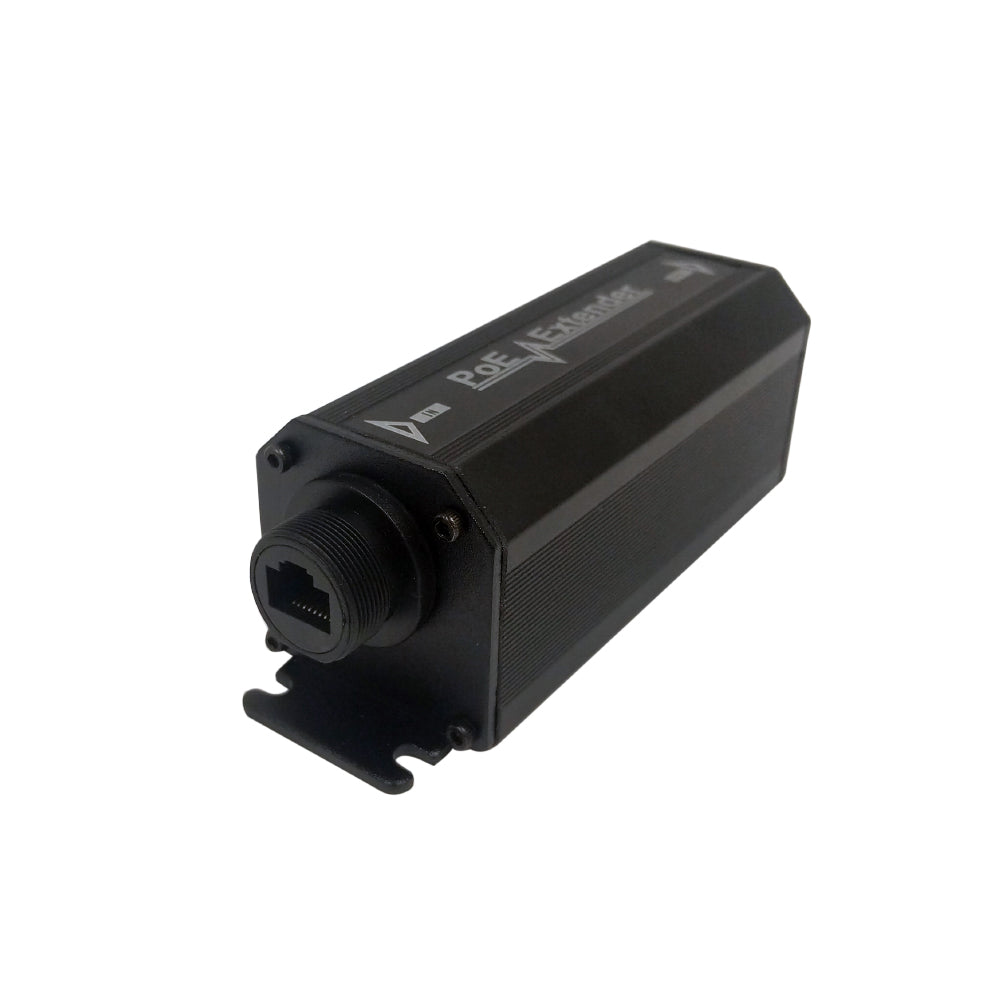

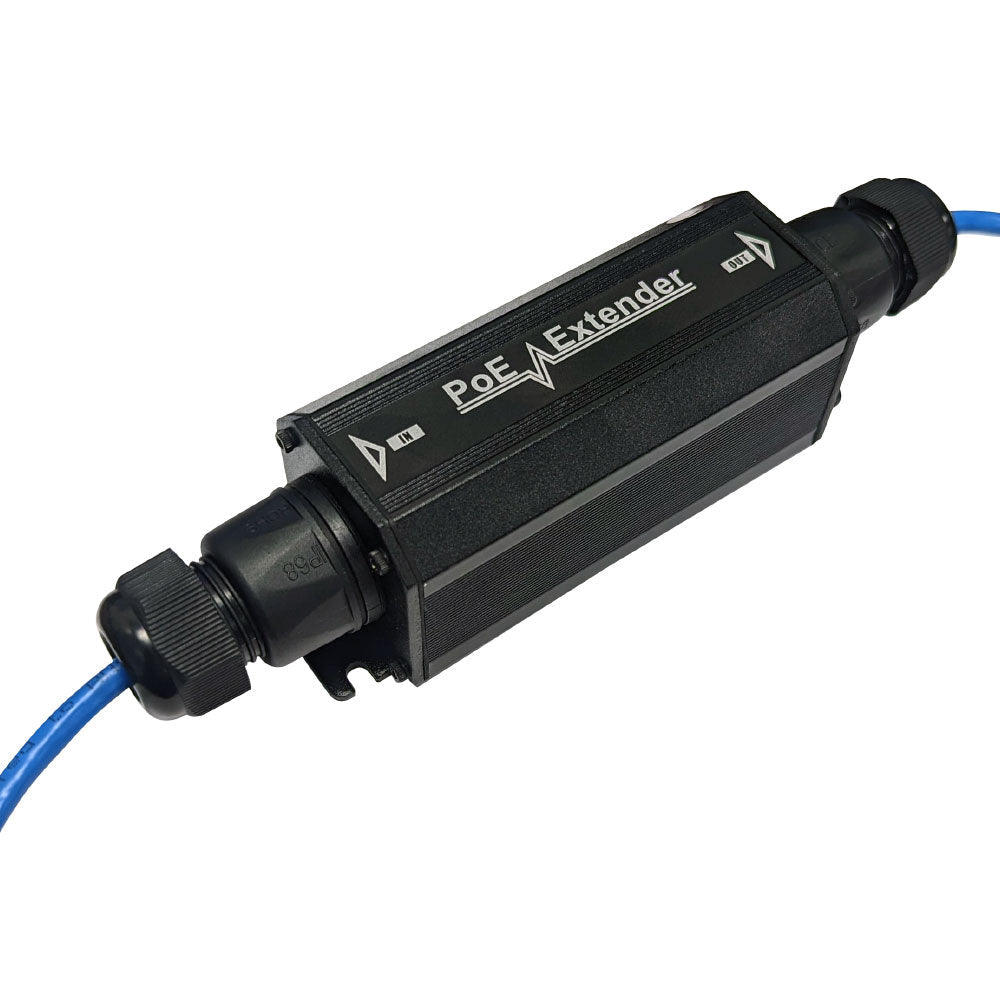

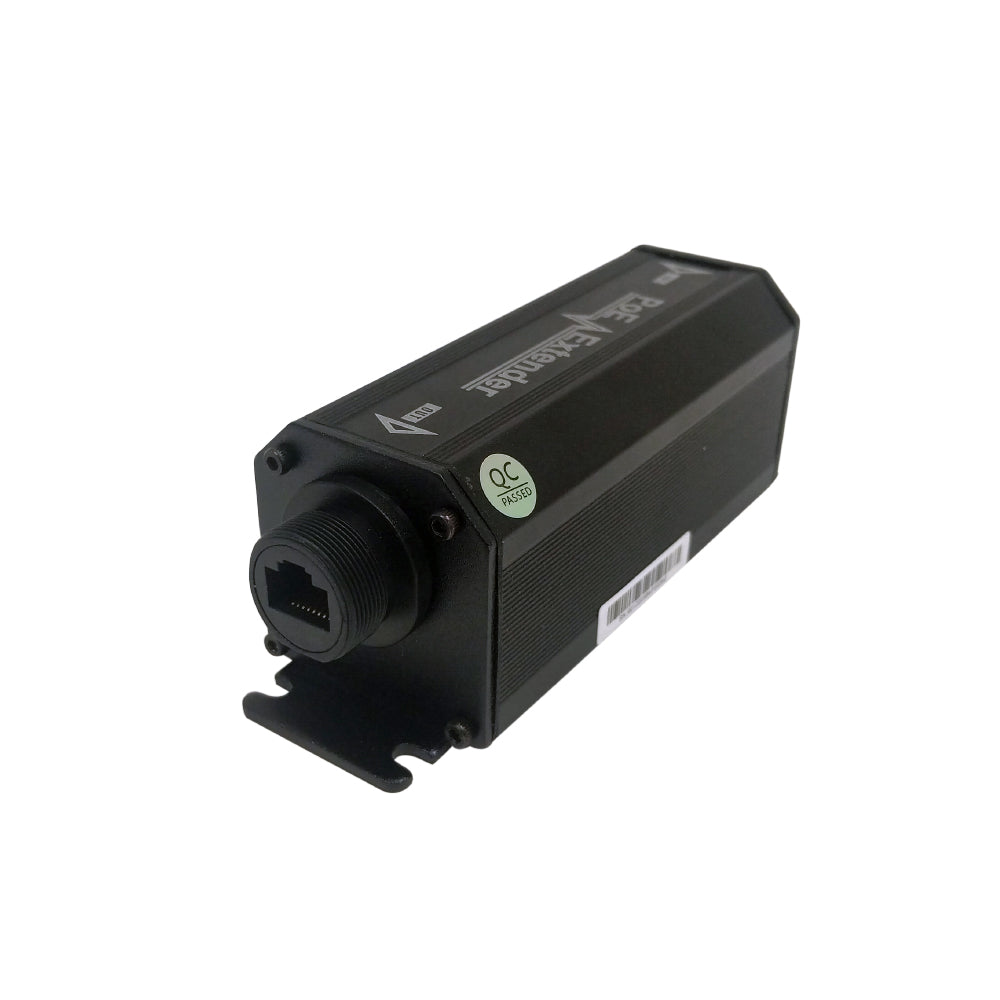

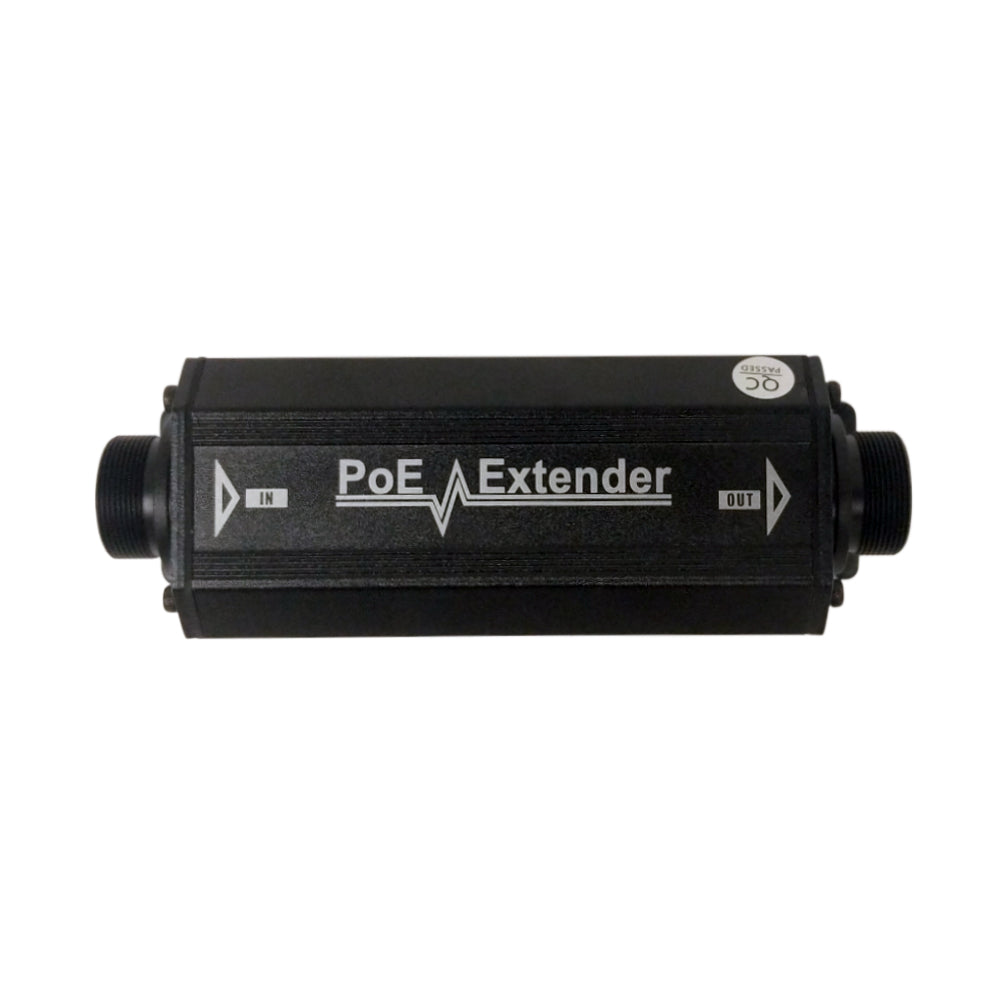

This outdoor waterproof PoE extender is Gigabit PoE extender with one PoE input and one PoE output. it can be used inline with CAT5E and CAT6 cable runs to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN access points and network cameras. It does not require any additional power supply which simplifies installation. the Ethernet ports configured automatically for link speed, duplex and crossover and provides the full rate network throughout the whole extended distance.Ā
Features
- Compatible with 10/100/1000 Mbps Ethernet
- Compatible with IEEE 802.3af and IEEE 802.3at
- Outdoor waterproof IP68 rated
- No additional power supply required
- Automatically detects and protects PoE equipment from being damaged by incorrect installation
- Gigabit full-rate network throughout the whole extended distance
- Compact size, wall mountable design
- Easy plug-and-play installation
Application
Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|
| No. of Channels | 1 (PoE IN) - 1 (PoE OUT) | |||
| Body Material | Plastic Enclosure | |||
| Mounting | Wall/Shelf | |||
| Environment | Indoor/Outdoor | |||
| Operating Temperature | -25Ā°C to 55Ā°C | |||
| Storage Temperature | -40Ā°C to 70Ā°C | |||
| Dimensions | 185 x 45 x 45mm | |||
| Connectors | Waterproof RJ45, EIA 568A and 568B | |||
| Indicators | Power Indicator: PoE Enabled Network Indicator: Link/Act |
|||
| Performance | ||||
| Pass Through Data Rates | 10/100/1000 Mbps Half/Full Duplex | |||
| Output Power | Up to 25 Watts | |||
| Power Consumption | 2.5 Watts | |||
| PoE Input Pin Assignment & Polarity | 1/2 (-), 3/6(+) and 4/5(+), 7/8(-) | |||
| PoE Output Pin Assignment & Polarity | 1/2 (-), 3/6(+) | |||
| Regulatory Compliance | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) | |||
| Protection Level | IP68 Rated, Waterproof | |||
| Approval | ||||
| c(UL)us | Yes | |||
| CE, FCC | Yes | |||
| Environmental | ||||
| RoHS | Yes | |||
| Warranty Information | ||||
| Warranty | 2 Years | |||
| Packaging Information | ||||
| Package Quantity | 1 - PoE Extender 2 - Cable Glands |
|||
| Product Weight | 0.60 lbs [0.27kg] | |||
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| POE-EX150-30W | 0.6 lb |
