Description
This PLC splitter is used to divide a light beam into multiple light beams for distribution to multiple terminals.
Features:
- Low insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide operating wavelength from 1260nm to 1650nm
- High reliability and stability
| Physical Characteristics | |
|---|---|
| Length | 1.5m |
| Operating Temperature | -20℃ ~ +80℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Operating Wavelength | 1260 ~ 1650nm |
| Fiber Types | Singlemode G.657A2 LGX Cassette |
| Insertion Loss (P/S Grade) | 7.2/7.4dB (1x4) 10.3/10.7dB (1x8) |
| Return Loss | ≥50dB |
| Directivity | ≥55dB |
| Wavelength Dependent Loss | ≥0.5dB |
| Maximum Power Handling (mW) | 500 |
| Connectors | |
| Connector A | SC-APC Male |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weights | FO-PLCL-1X4-SCA2 - 0.68lbs FO-PLCL-1X8-SCA2 - 0.74lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |

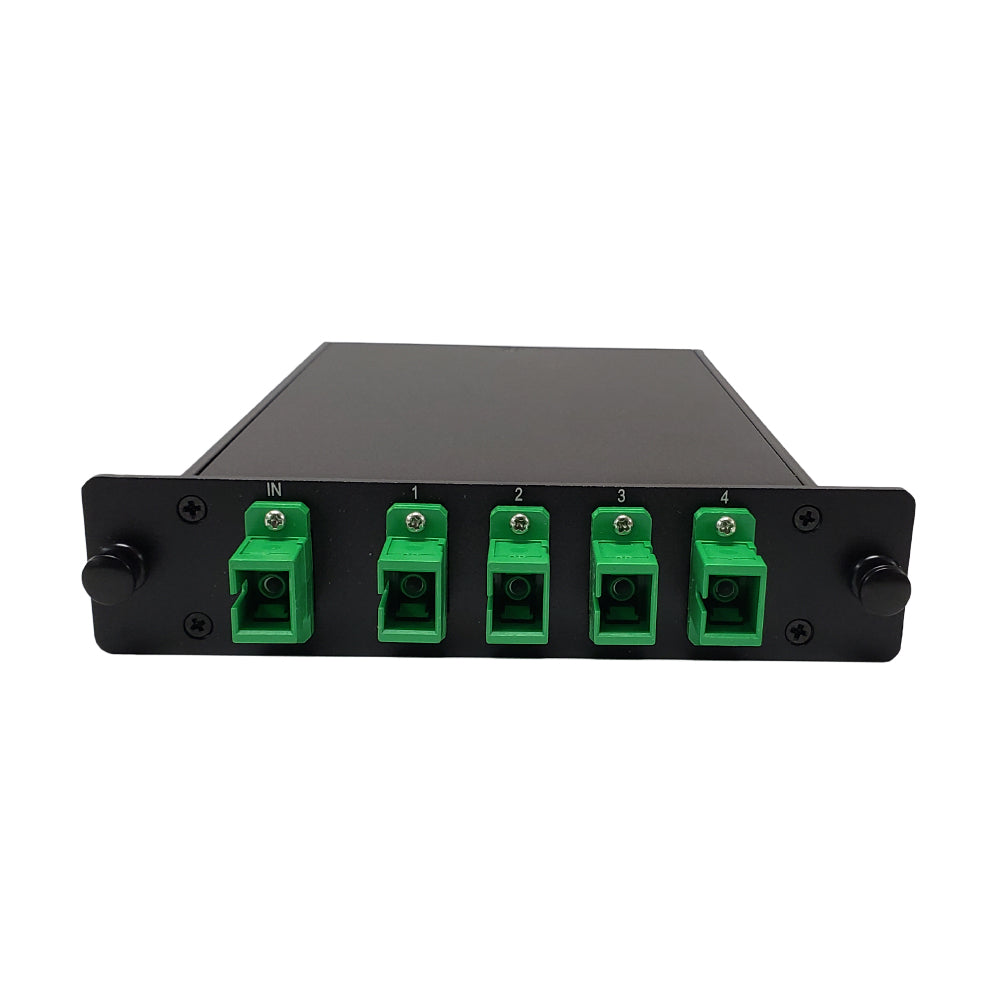

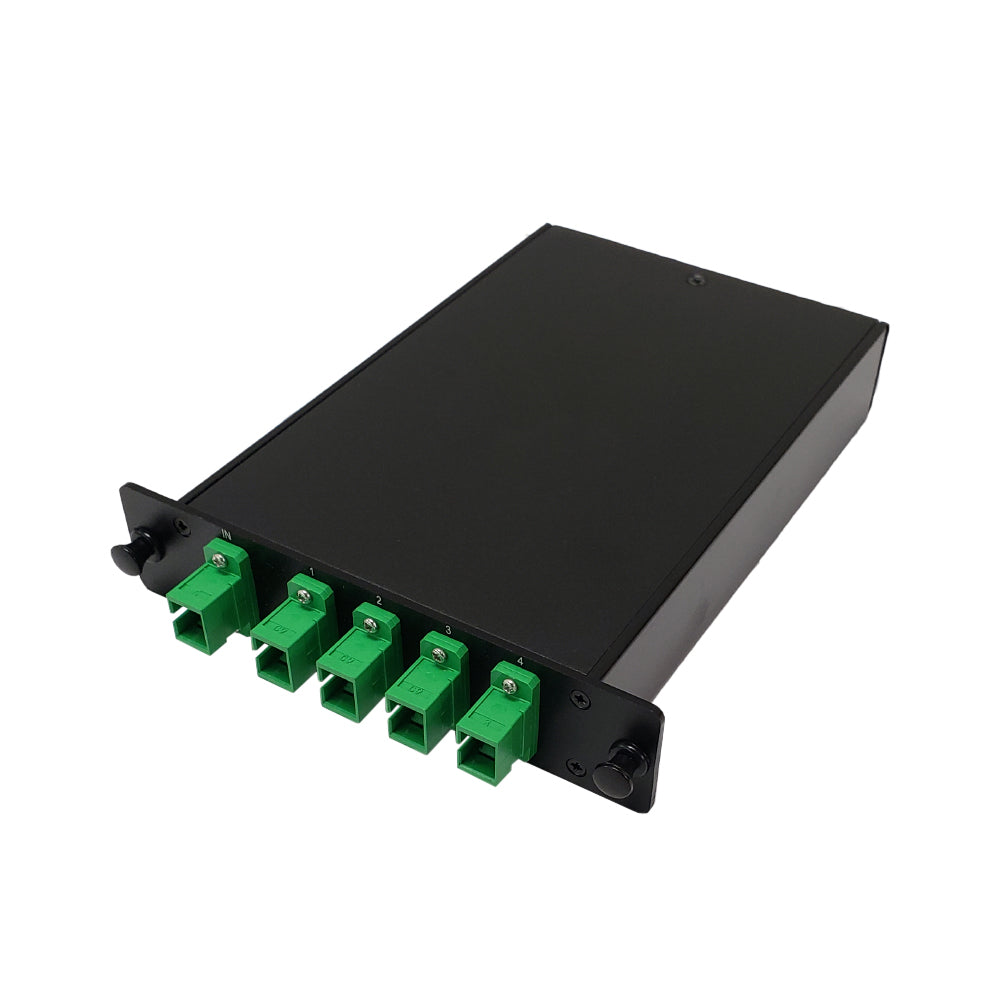

| FO-PLCL-1X4-SCA2 | 1x4 | 0.85 lb |

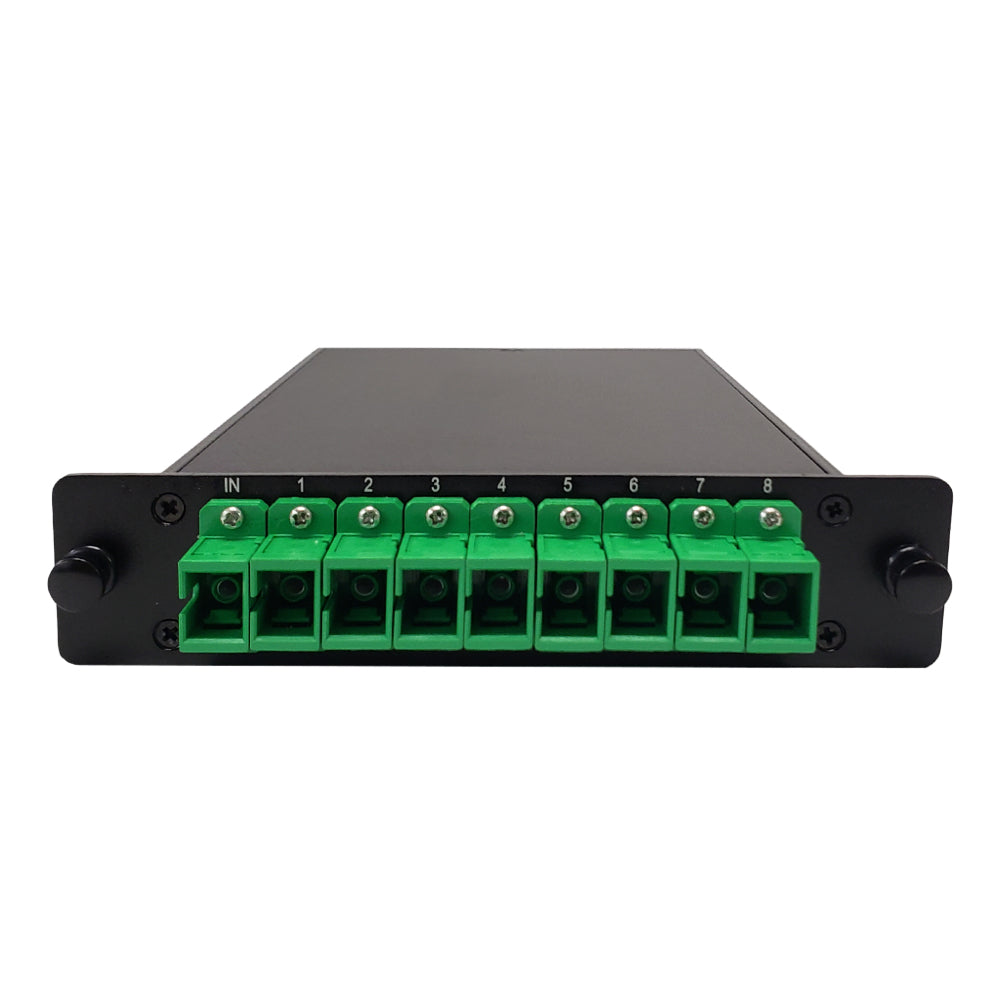

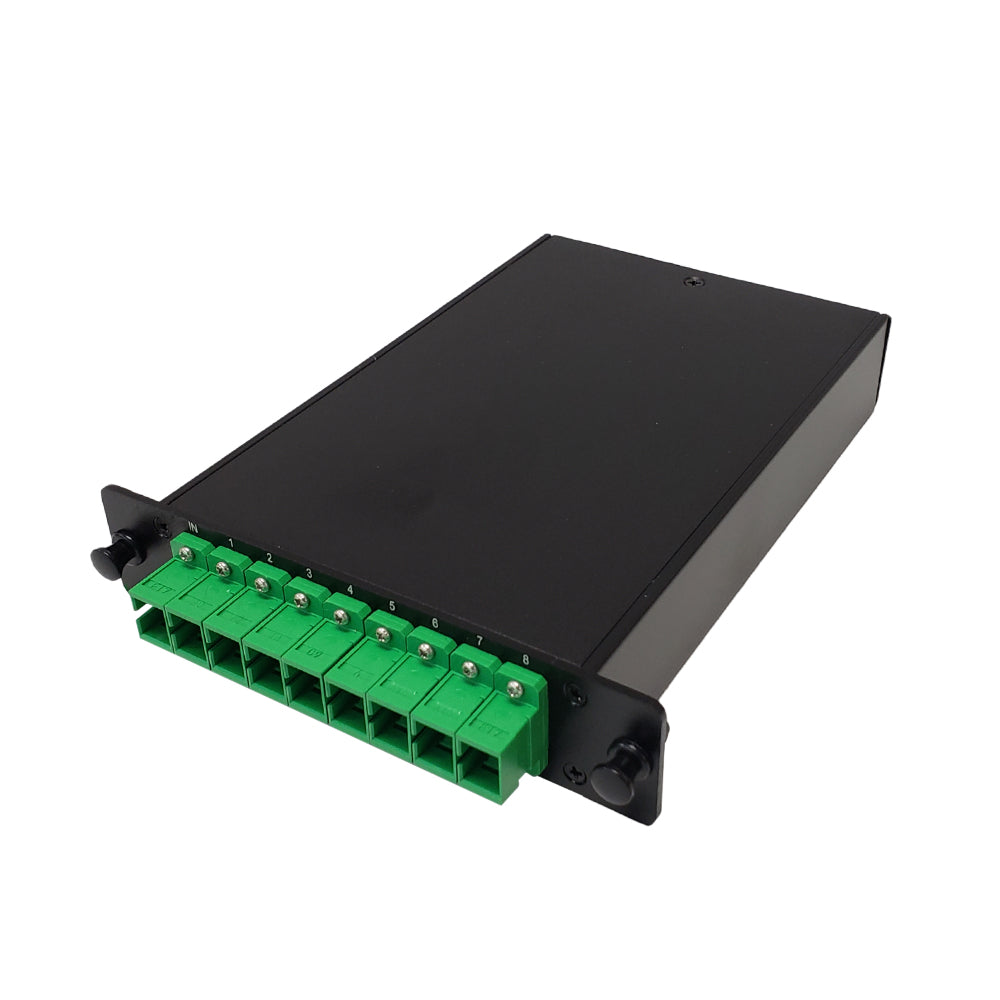

| FO-PLCL-1X8-SCA2 | 1x8 | 0.88 lb |
