Description

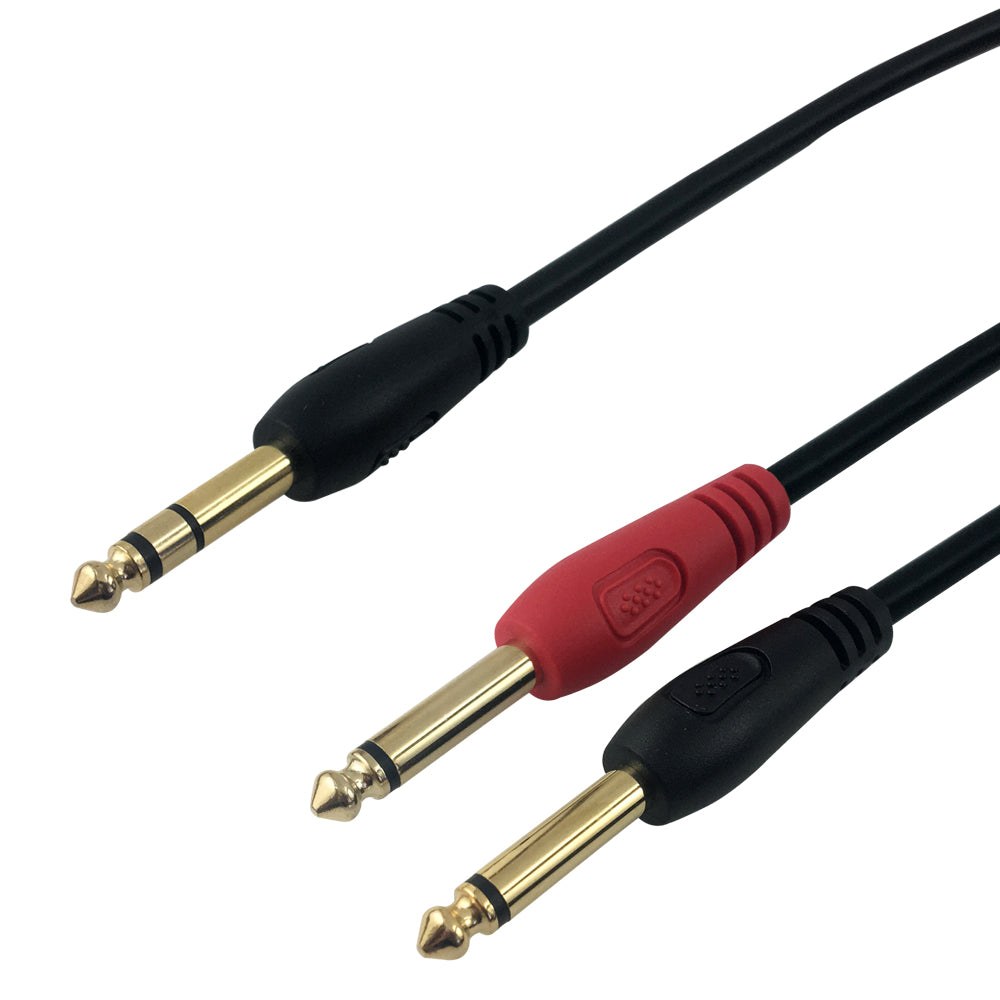

This stereo audio cable has a 1/4 inch TRS male on one end and two 1/4 inch TS male connectors on the other. It is typically used to connect stereo systems or instruments to the input channels of unbalanced pro audio equipment.Ā
| Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating | Gold |
| Cable Diameter | 6.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 95% Copper Spiral |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | 1/4 Inch TRS Stereo Male |
| Connector B | 1/4 Inch TS Male - Black |
| Connector C | 1/4 Inch TS Male - Red |
| Approvals | |
| c(UL) | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft |
|---|---|---|---|---|
| 0.13 lbs | 0.26 lbs | 0.43 lbs | 0.65 lbs | 1.08 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| PAU-951-03 | 3ft | 0.15 lb |
| PAU-951-06 | 6ft | 0.21 lb |
| PAU-951-10 | 10ft | 0.33 lb |
| PAU-951-15 | 15ft | 0.5 lb |
| PAU-951-25 | 25ft | 0.77 lb |
