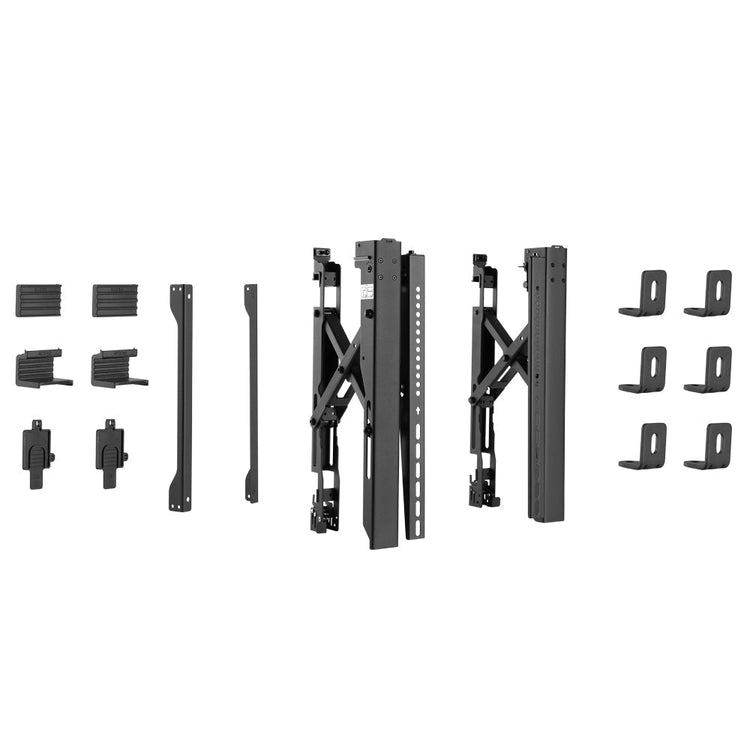

These video wall TV mounting arms are part of a modular video wall mount system which are to be used in conjunction with the MT-1514-495 and MT-1514-745 aluminum rails. One set of arms should be purchased for each TV.Ā
 |
Quick and Easy InstallationThese mounting arms and accessories can be put together with as many aluminum rails as required for quick and easy installation. Pop-Out Extension for Easy AccessThere is a pop-out extension function on this bracket that allows easy rear access of the screen. Multi-Dimensional Micro AdjustmentThis allows precision alignment of the video wall configuration including depth, height and tilt.
|
| Physical Characteristics | |
|---|---|
| Mounting Style | Micro Adjustment, Pop-out, Tilting |
| Color | Durable Powder-Coated Black Finish |
| Material | Metal |
| Metal Sheet Thickness | Bracket Arm Thickness = 2mm Cold-Rolled Sheet |
| Mounting Pattern | VESA 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400,1000x400 |
| Screen Size | 45 inches [114cm] (Min) |
| Weight Capacity | 154lbs [70kg] |
| Profile | 103/106 ~ 293/296mm [4.1/4.2 ~ 11.5/11.7 inches] |
| Fine Adjustment | 20/25mm [0.79/0.98 inches] |
| Level Adjustment | -3Ā° ~ +3Ā° |
| Tilt |
-2Ā° ~ +4Ā° |
| Installation | Solid Wall |
| Anti-Theft | Yes |
| Compatibility | |
| MT-1514-495 | 495mm Aluminum Rails for Custom Installation (Pair) |
| MT-1514-745 | 745mm Aluminum Rails for Custom Installation (Pair) |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x20 Screws 4 - M8x30 Screws 4 - Rectangular Washers 8 - Small Spacers 4 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Product Weight | 26.5 lbs [12 kg] |
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
