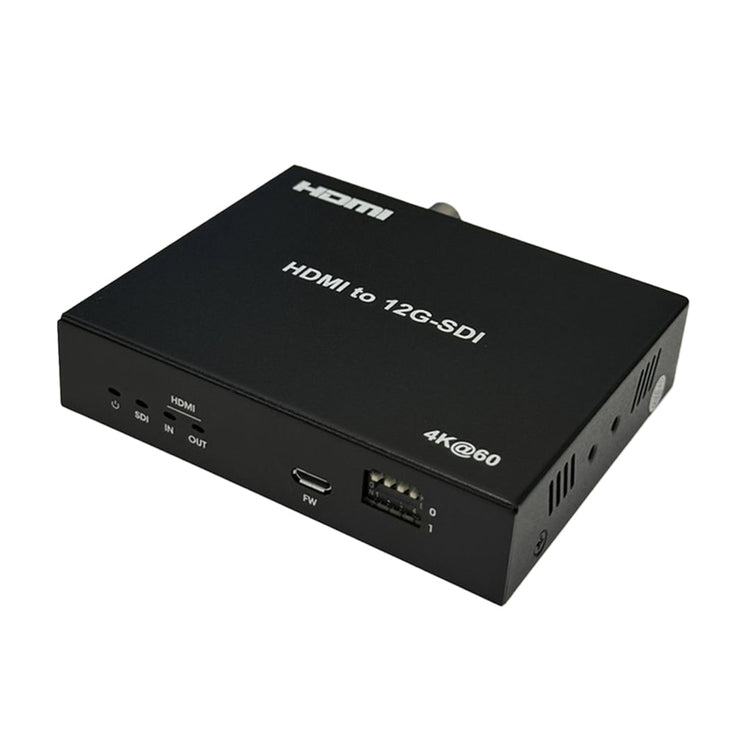

This HDMI video converter consists of one HDMI input, one HDMI output and one SDI output. It supports 4K ultra HD @60Hz YUV 4:2:2. This is typically used in broadcast / film production applications.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal |
| Dimension (LxWxH) | 94 x 79 x 20mm |
| Operating Temperature | -5 to +40℃(+23 to +95℉) |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Power | |
| Power Supply | DC 12V/1A |
| Connector(s) | |
| Input | 1 - HDMI |
| Output | 1 - HDMI 1 - SDI |
| Performance | |
| Video Format Supported | 4k@60hzYUV4:2:2/ 4k@30HZ/1080p/1080i/720p |
| Maximum Resolution | 4Kx2K@60Hz, YUV 4:2:0 |
| SDI Cable Distance | 80m for 12G4k@60hz and 6G 4k@30hz , 120m for 3G 1080p |
| Audio Support | PCM2.0 16-24bit 48KHz |
| Max. Power Consumption | 12 Watts |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.80 lbs |
| Contents | |
| Included in Package | 1 - Converter |
| 1 - DC 12V 1A Adapter | |
| 1 - Manual | |
| 2 - Mounting Ears | |
