Description

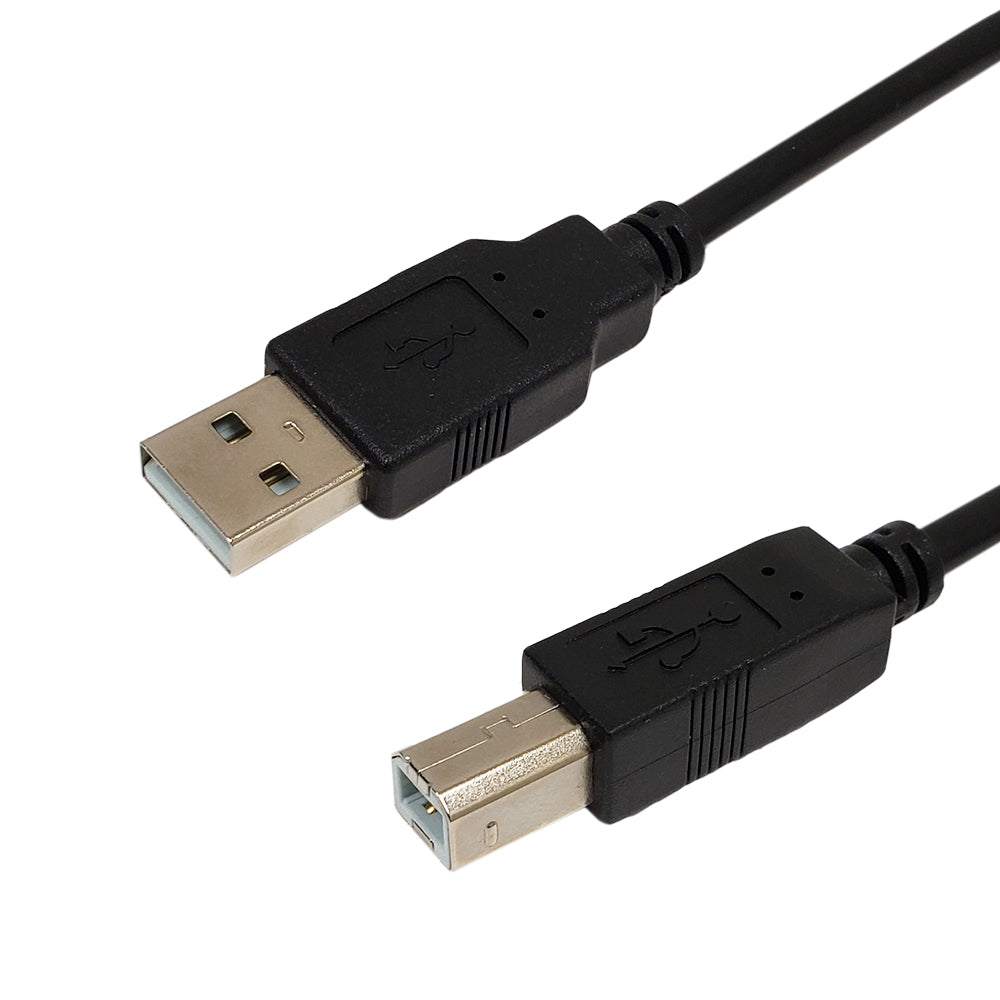

This active USB extension cable consists of a USB A male on one end and a USB B male on the other end. It is typically used to connect a PC/laptop to a printer. Unlike passive extension cables, this USB active extension cable has bus powered circuitry which enables it to reach distances beyond the length limits of standard passive USB cables.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 28AWG Data, 24AWG Power |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMG, FT4 Riser |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | USB 2.0 Type A Hi-Speed Male |
| Connector B | USB 2.0 Type B Hi-Speed Male |
| Performance | |
| Rating | USB 2.0 Hi-Speed Compliant Cable |
| Speed | 480 Mbps |
| Compatibility | Backwards Compatible with 1.0 |
| System Requirements | |
| Windows | Windows 98, ME 2000/XP, Vista, 7, 8, 10 |
| Apple Mac | OX 9 and OS X |
| Linux, Unix | Compliant |
| Approvals | |
| UL | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty |
3-Years Limited Warranty |
| 16ft | 25ft | 35ft | 50ft |
|---|---|---|---|
| 0.56 lbs (0.25 kg) | 0.74 lbs (0.34 kg) | 1.00 lbs (0.45 kg) | 1.37 lbs (0.62 kg) |
