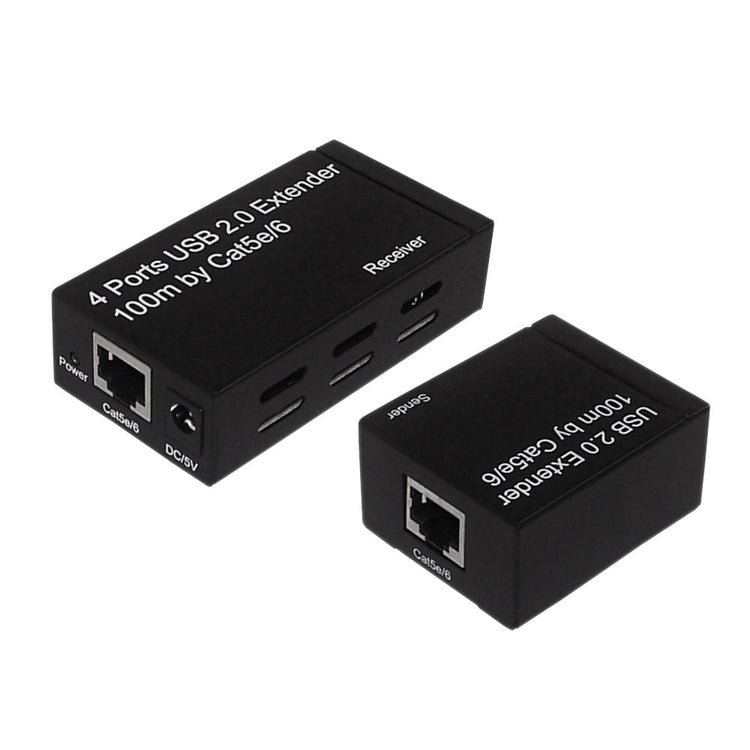

This USB extender allows you to extend four USB devices to 100m away from the host (computer) using one Cat5e/6 cable. The extender can also be connected through an Ethernet switch which will double the length to 200m away from the host (100m from the sender to the switch and 100m from the switch to the receiver). This device supports Windows XP, Vista 32bit and 64bit, Windows 7 32bit and 64bit, Windows 8 32bit and 64bit.
Features:
Installation Steps for PC:
Physical Characteristics | |
---|---|
Distance | 100m Max. Over a CAT5e/6 Cable |
200m Max. Through an Ethernet Switch (100m in, 100m out) | |
Color | Black |
Housing | Metal Enclosure |
Power | |
Input Voltage | 125V |
Power Supply (Transmitter) | 1 x 5 volt, 2 amp DC Converter |
Connector(s) | |
Sender | 1 - USB Type-B Female 1 -RJ45 Female |
Receiver |
4 - USB Type-A Female |
Performance | |
Data Transfer Speed | 150Mbps, 12 Mbps or 1.5 Mbps |
Environmental | |
RoHS | Yes |
Compatibility |
|
Windows | Windows XP, Vista, 7, 8 and 10 32bit and 64bit |
Mac | No |
Linux | No |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 3.3 lbs [1.5kg] |
Contents | |
Included in Package | 1 Sender |
1 Receiver | |
1 - DC5V 2A Power Adapter | |
1 - USB 2.0 A male to B male cable | |
1 - Manual |
SKU | Weight | |
USB-EC100M | 3.3 lb |
