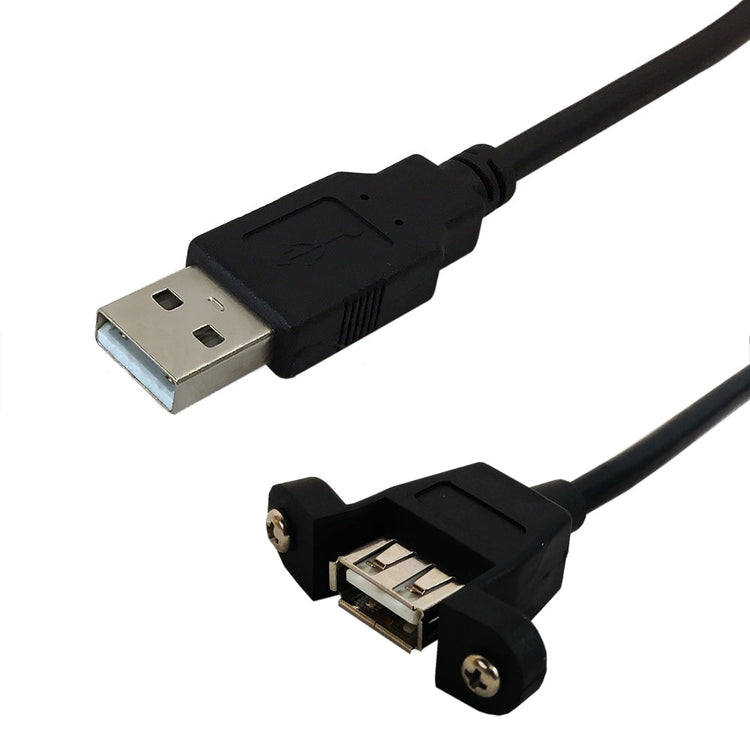

This cable consists of a USB 'A' male on one end and a USB 'A' panel mount female on the other end. It is typically used to add an external panel mount USB connection to wall plates, kiosks or other custom solutions where a USB outlet is required.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 28AWG (data) / 24AWG (power) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 65% ALMG |
| Strain Relief | Molded PVC |
| Temperature Rating | 80 deg C |
| Cable Voltage Rating | 30V |
| Connector(s) | |
| Connector A | USB 2.0 Type A Hi-Speed Male |
| Connector B | USB 2.0 Type A Panel Mount Hi-Speed Female |
| Performance | |
| Rating | USB 2.0 Hi-Speed Compliant Cable |
| Speed | 480 Mbps |
| Compatibility | Backwards Compatible with 1.0 |
| Approvals | |
| UL | Compliant - Cable |
| cUL | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 6 inch | 1ft | 3ft | 6ft |
|---|---|---|---|
| 0.05 lbs | 0.07 lbs | 0.10 lbs | 0.15 lbs |
