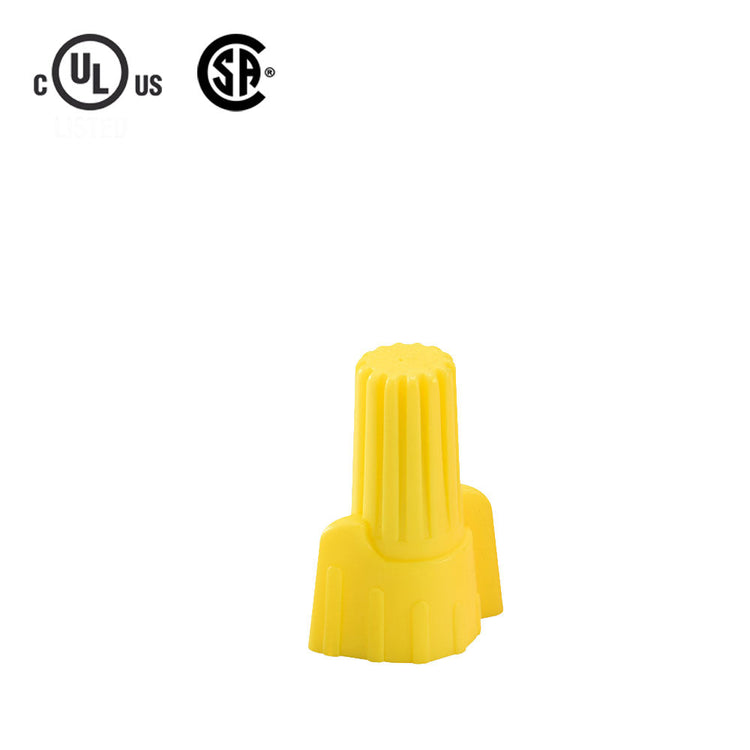

These twist-on wire caps ensure a secure, reliable connection for all standard electrical and low-voltage applications. Engineered with a durable steel core and a UL94V-2 flame-retardant thermoplastic shell, they feature an internal spring design that grips wires tightly for a superior, long-lasting hold. Also features two wings for easier twist-on wire termination.
|
|
Active Spring-Action GripAn internal steel spring design actively bites into stripped wires as you twist, ensuring a highly secure connection that won't loosen under mechanical vibration or thermal expansion. High-Heat & Flame ResistanceEncased in a rugged thermoplastic cover with a UL94V-2 flame rating, safely handling operating temperatures up to 105°C (221°F). Fully Certified & CompliantMeet safety and environmental standards, carrying UL, CSA, and RoHS certifications for peace of mind on regulated job sites. |
| Suitable wires | |
|---|---|
| CN-MRW-YL-100 | AWG Max. 3 #12 Min. 2 #18 JIS Max. 3 #3.5 Min. 2 #0.75 |
| CN-MRW-RD-100 | AWG Max. 2 #8 Min. 4 #22 JIS Max. 2 #8 Min. 4 #0.5 |
| CN-MRW-GY-100 | AWG Max. 3 #10 Min. 3 #14 w/1 #18 JIS Max. 3 #5.5 Min. 3 #2.0 w/1 #0.75 |
| CN-MRW-BL-100 | AWG Max. 3 #8 w/1 #12 Min. 3 #12 JIS Max. 3 #8 w/1 #3.5 Min. 3 #3.5 |
| Physical Characteristics | ||||
|---|---|---|---|---|
| Color | Yellow | Red | Grey | Blue |
| Outer Diameter | 18.2mm | 23mm | 25.5mm | 31.8mm |
| Inner Diameter | 9.8mm | 13mm | 14.9mm | 17.8mm |
| Height | 25.8mm | 31.8mm | 33.3mm | 40mm |
| Voltage Rating | 600V max. | |||
| Temperature Rating | 105℃ (221℉) | |||
| Material | Steel with thermoplastic cover | |||
| Flame Rating | UL94V-2 | |||
| Approvals | ||||
| c(UL)us | Compliant | |||
| CSA | Compliant | |||
| Environmental | ||||
| RoHS | Compliant | |||
| Packaging Information | ||||
| Package Quantity | 100 | |||
| Product Weight | 0.40 lbs | 0.65 lbs | 1.09 lbs | 1.70 lbs |
