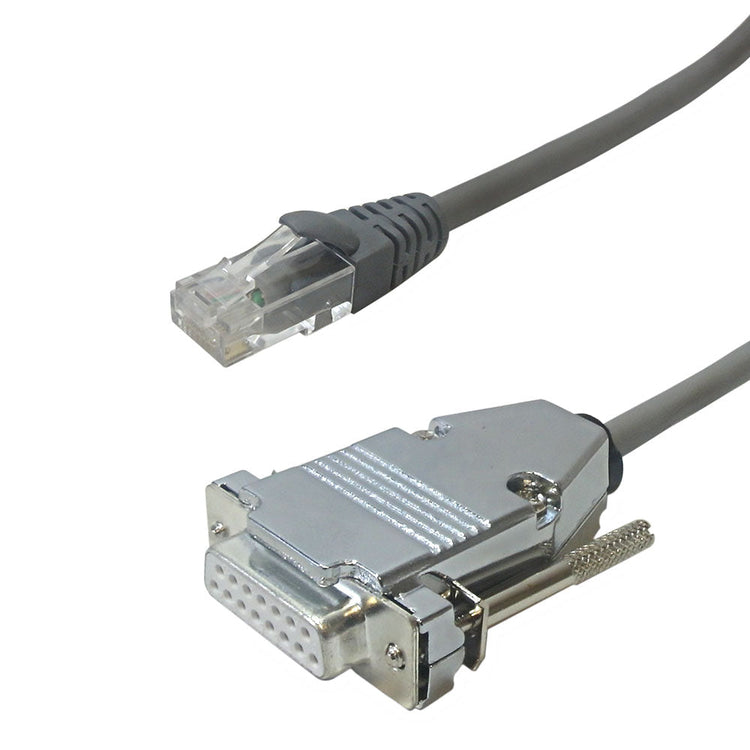

This T1 cable is constructed using two pair shielded T1 rated cable and consists of a RJ48C male connector on one end and a DB15 female connector on the other. It is designed to be used specifically for T1 telecommunication applications where cross-over wiring is required.
| Physical Characteristics | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Grey | ||||||||||||||||||||
| Shielded | Yes | ||||||||||||||||||||
| Cable Rating | T1 | ||||||||||||||||||||
| Wire Gauge | 24 AWG | ||||||||||||||||||||
| Impedance | 100 Ohm | ||||||||||||||||||||
| Wiring | Cross-Over | ||||||||||||||||||||
| Connectors | |||||||||||||||||||||
| Connector A | RJ48C male | ||||||||||||||||||||
| Connector B | DB15 Female | ||||||||||||||||||||
| Pin-outs | |||||||||||||||||||||
|
|||||||||||||||||||||
| Environmental | |||||||||||||||||||||
| RoHS | Yes | ||||||||||||||||||||
| Packaging Information | |||||||||||||||||||||
| Package Quantity | 1 | ||||||||||||||||||||
| Warranty Information | |||||||||||||||||||||
| Warranty | Limited Lifetime | ||||||||||||||||||||
| 3ft | 7ft | 10ft | 15ft | 25ft | 50ft | 75ft | 100ft | 125ft | 150ft |
| 0.20lbs | 0.50lbs | 0.70lbs | 0.90lbs | 1.60lbs | 3.20lbs | 4.80lbs | 6.40lbs | 8.00lbs | 9.60lbs |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
| SKU | Options | Weight |
| T1-221-03 | 3ft | 0.15 lb |
| T1-221-07 | 7ft | 0.24 lb |
| T1-221-10 | 10ft | 0.33 lb |
| T1-221-15 | 15ft | 0.5 lb |
| T1-221-25 | 25ft | 0.77 lb |
| T1-221-50 | 50ft | 1.55 lb |
| T1-221-75 | 75ft | 2.26 lb |
| T1-221-100 | 100ft | 3.0 lb |
| T1-221-125 | 125ft | 5.0 lb |
| T1-221-150 | 150ft | 6.2 lb |
