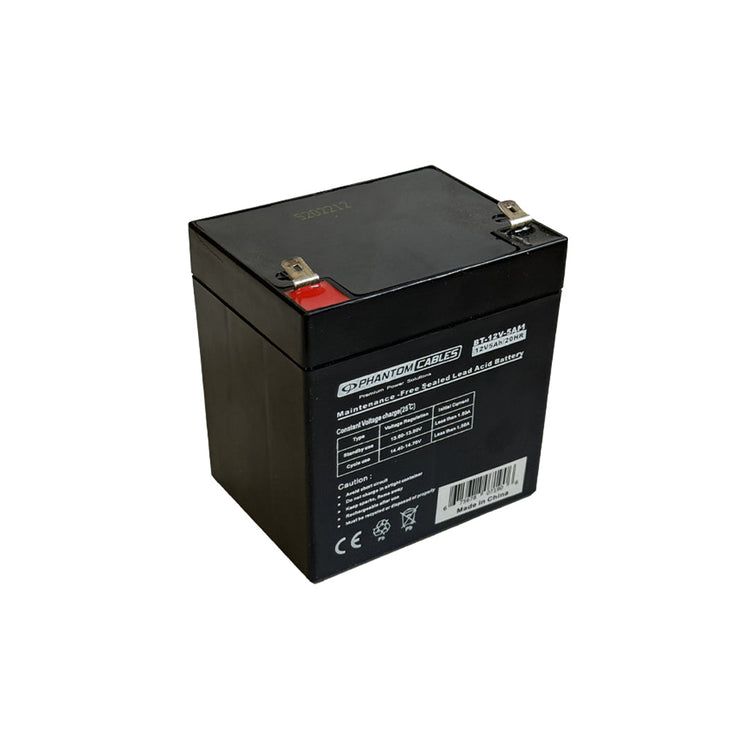

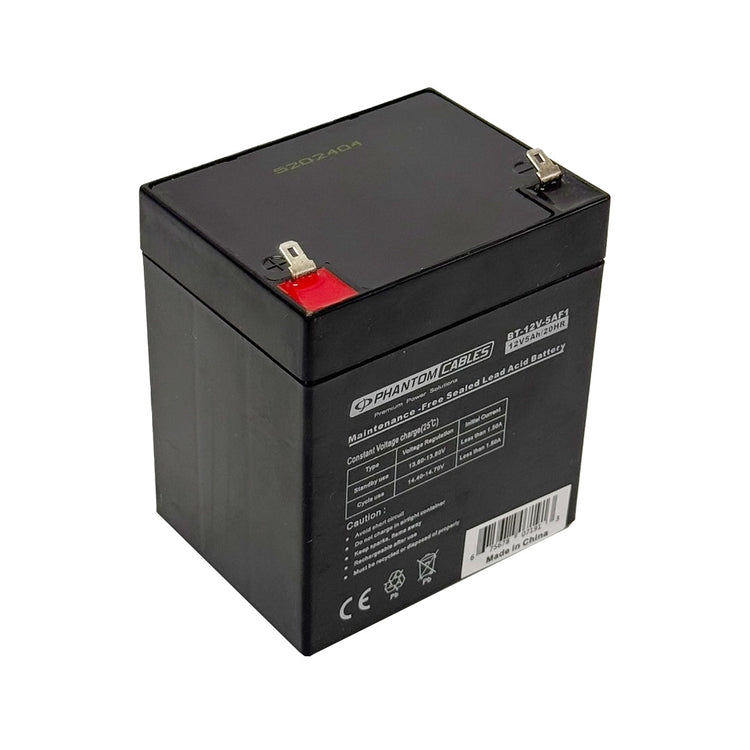

This battery is typically used as a replacement battery in security alarm systems, fire alarm panels or security lighting applications.
| Physical Characteristics | |
|---|---|
| Type | UPS Replacement |
| Absorbed Glass Mat (AGM) | Yes |
| Voltage | 12V |
| Amps | 5A |
| Terminal Type | F1 |
| Tab Size | 0.25 inch |
| Container Material | ABS(UL-94HB) |
| Length | 3.54 inches [90mm] |
| Width | 2.76 inches [70mm] |
| Height | 3.98 inches [101mm] |
| Operating Temperature | 25±3℃ (77±5℃F ) |
| Performance | |
| Internal Resistance | Approx.45m٦ |
| Max. Discharge Current | 75A(5S) |
| Rated Capacity | 5.00AH (20hr, 1.75V/cell,25℃/77℃F) |
| Cycle Use | Initial Charging Current less than1.80A 14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃ |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃ |
| Capacity affected by Temperature | 40℃ 102% 25℃ 100% 0℃ 85% -15℃ 64% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:64% |
| Packaging Information | |
| Product Weight | 3.75 lbs [1.7kg] |
| Warranty Information | |
| Warranty | 6 Months |
