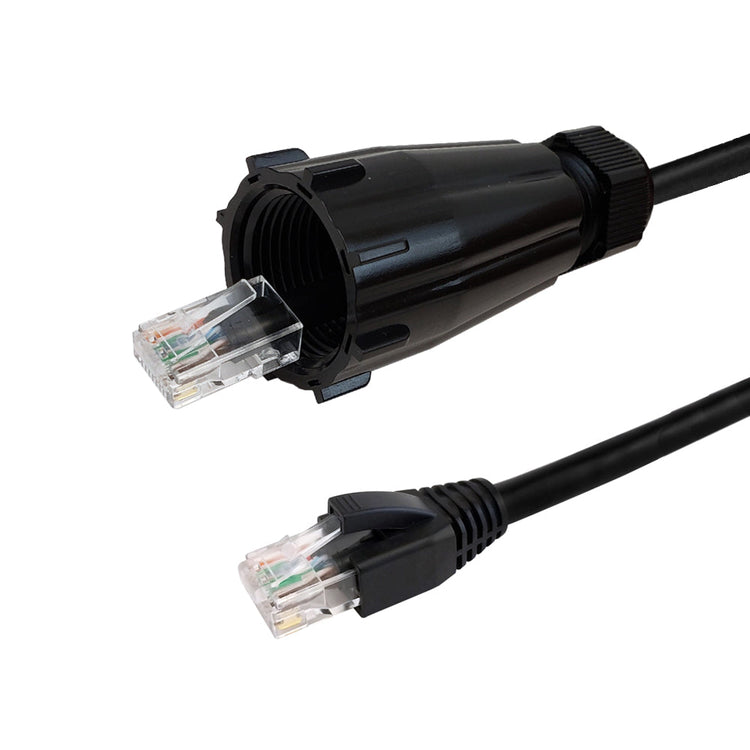

This Cat6 UTP outdoor UV direct burial Ethernet cable consists of RJ45 male with IP68 rated shroud on one end and a RJ45 male on the other. It is typically used outdoors either above or below ground as premise wiring to connect network devices and intended to mate with our IP68 rated couplers for a weather tight seal.
These cables are made to order. Most orders ship out same day or next day depending on the quantity. Please contact us for more details.
|
| 100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Outdoor Cable, IP68 Rated HousingIdeal for use in cable runs that are located above or below ground as premise wiring to connect network devices. The shrouds are IP68 rated and can be secured to mating IP68 rated RJ45 couplers - not allowing water penetration.
|
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Conductor Material | 100% Bare Copper |
| Cable Diameter | 6.20 mm |
| Wire Gauge | 23AWG Solid |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Temperature Rating | -40Ā°C to +75Ā°C |
| StrainRelief | Tab Style Strain Relief Boot |
| Jacket Rating | Direct Burial / UV |
| Jacket Material | LLDPE |
| UV | Yes |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 9ft | 10ft | 11ft | 12ft | 13ft | 14ft | 15ft | 16ft | 17ft | 18ft | 19ft | 20ft | 21ft | 22ft | 23ft | 24ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.08 lbs | 0.10 lbs | 0.13 lbs | 0.15 lbs | 0.17 lbs | 0.20 lbs | 0.22 lbs | 0.24 lbs | 0.25 lbs | 0.30 lbs | 0.35 lbs | 0.37 lbs | 0.40 lbs | 0.43 lbs | 0.45 lbs | 0.47 lbs | 0.49 lbs | 0.51 lbs | 0.53 lbs | 0.55 lbs | 0.57 lbs | 0.58 lbs | 0.59 lbs | 0.60 lbs | 0.70 lbs | 0.80 lbs | 1.10 lbs | 1.90 lbs | 2.15 lbs | 3.75 lbs | 4.50 lbs |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
| SKU | Options | Weight |
| CAT6OIP1-01BK | 1ft | 0.07 lb |
| CAT6OIP1-02BK | 2ft | 0.1 lb |
| CAT6OIP1-03BK | 3ft | 0.15 lb |
| CAT6OIP1-04BK | 4ft | 0.17 lb |
| CAT6OIP1-05BK | 5ft | 0.2 lb |
| CAT6OIP1-06BK | 6ft | 0.21 lb |
| CAT6OIP1-07BK | 7ft | 0.24 lb |
| CAT6OIP1-08BK | 8ft | 0.26 lb |
| CAT6OIP1-09BK | 9ft | 0.24 lb |
| CAT6OIP1-10BK | 10ft | 0.33 lb |
| CAT6OIP1-11BK | 11ft | 0.32 lb |
| CAT6OIP1-12BK | 12ft | 0.38 lb |
| CAT6OIP1-13BK | 13ft | 0.44 lb |
| CAT6OIP1-14BK | 14ft | 0.46 lb |
| CAT6OIP1-15BK | 15ft | 0.5 lb |
| CAT6OIP1-16BK | 16ft | 0.57 lb |
| CAT6OIP1-17BK | 17ft | 0.64 lb |
| CAT6OIP1-18BK | 18ft | 0.71 lb |
| CAT6OIP1-19BK | 19ft | 0.78 lb |
| CAT6OIP1-20BK | 20ft | 0.63 lb |
| CAT6OIP1-21BK | 21ft | 0.7 lb |
| CAT6OIP1-22BK | 22ft | 0.71 lb |
| CAT6OIP1-23BK | 23ft | 0.72 lb |
| CAT6OIP1-24BK | 24ft | 0.74 lb |
| CAT6OIP1-25BK | 25ft | 0.77 lb |
| CAT6OIP1-30BK | 30ft | 0.95 lb |
| CAT6OIP1-35BK | 35ft | 1.1 lb |
| CAT6OIP1-50BK | 50ft | 1.55 lb |
| CAT6OIP1-75BK | 75ft | 2.26 lb |
| CAT6OIP1-100BK | 100ft | 3.0 lb |
| CAT6OIP1-125BK | 125ft | 5.0 lb |
| CAT6OIP1-150BK | 150ft | 6.2 lb |
