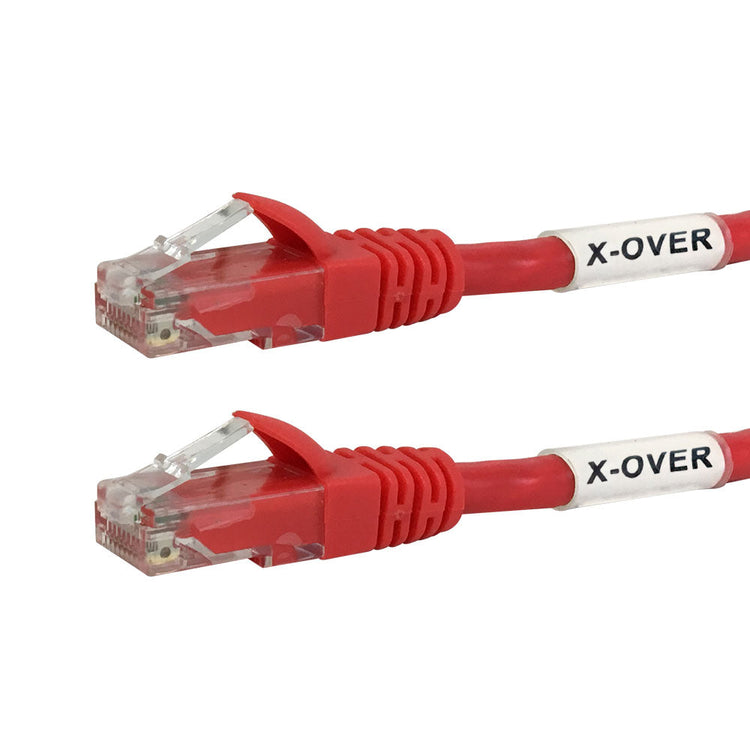

This Cat6 cross-over ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used to directly connect PCs without the use of a switch or a hub.
Physical Characteristics | |
---|---|
Connector Plating | Gold Plated 50 Micron |
Cable Diameter | 6.2mm |
Wire Gauge | 24AWG Stranded |
Shielding | UTP (Unshielded) |
Pairs | 4 |
Fire Rating | CMR (FT4 Riser Rated) |
Molding | Molded Tab Style Strain Relief |
Temperature Rating | 75 C |
Jacket Type | PVC |
Connectors | |
Connector A | RJ45 Long Body Male |
Connector B | RJ45 Long Body Male |
Performance | |
Frequency | 350 MHz |
Approvals | |
c(UL)us |
Yes - Cable |
ETL Verified | Yes |
ANSI/TIA - 568 - C.2 | Yes |
ISO/IEC 11801 | Yes |
EN 50173-1 | Yes |
Environmental | |
RoHS | Yes |
Reach | Yes |
Conflict Materials | Yes |
Package Information | |
Package Quantity | 1 |
Warranty Information | |
Warranty | Limited Lifetime |
1ft | 3ft | 5ft | 7ft | 10ft | 15ft | 25ft | 50ft |
---|---|---|---|---|---|---|---|
0.07 lbs | 0.10 lbs | 0.15 lbs | 0.20 lbs | 0.25 lbs | 0.50 lbs | 0.60 lbs | 1.10 lbs |
SKU | Options | Weight |
CAT6X-01RD | 1ft / Red | 0.07 lb |
CAT6X-02RD | 2ft / Red | 0.1 lb |
CAT6X-03RD | 3ft / Red | 0.15 lb |
CAT6X-05RD | 5ft / Red | 0.2 lb |
CAT6X-07RD | 7ft / Red | 0.24 lb |
CAT6X-10RD | 10ft / Red | 0.33 lb |
CAT6X-15RD | 15ft / Red | 0.5 lb |
CAT6X-25RD | 25ft / Red | 0.77 lb |
CAT6X-50RD | 50ft / Red | 1.55 lb |
CAT6X-01YL | 1ft / Yellow | 0.07 lb |
CAT6X-02YL | 2ft / Yellow | 0.1 lb |
CAT6X-03YL | 3ft / Yellow | 0.15 lb |
CAT6X-05YL | 5ft / Yellow | 0.2 lb |
CAT6X-07YL | 7ft / Yellow | 0.24 lb |
CAT6X-10YL | 10ft / Yellow | 0.33 lb |
CAT6X-15YL | 15ft / Yellow | 0.5 lb |
CAT6X-25YL | 25ft / Yellow | 0.77 lb |
CAT6X-50YL | 50ft / Yellow | 1.55 lb |
