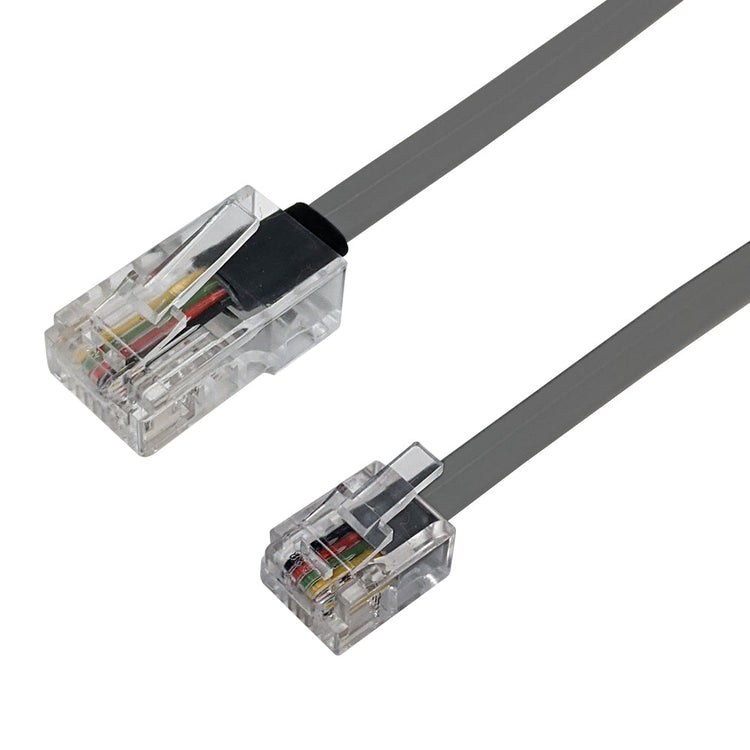

This modular flat phone cable consists of a RJ45 (8P8C) male plug on one end and RJ11 (6P4C) male plug on the other and has cross-over wiring. It is typically used in phone line applications.
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Color | Silver Satin | ||||
| Contact Plating | Gold | ||||
| Cable Diameter | 8.8mm x 2.5mm | ||||
| Wire Gauge | 26AWG | ||||
| Jacket Material | PVC - Polyvinyl Chloride | ||||
| Jacket Rating | VW-1 | ||||
| Temperature Rating | 60 deg C | ||||
| Cable Voltage Rating | 150V | ||||
| Cross Wiring |
|
||||
| Connector(s) | |||||
| Connector A | RJ45 (8P8C) Male | ||||
| Connector B | RJ11 (6P4C) Male | ||||
| Approvals | |||||
| UL | Yes - Cable | ||||
| cUL | Yes - Cable | ||||
| Environmental | |||||
| RoHS | Yes | ||||
| Reach | Yes | ||||
| Conflict Minerals | Yes | ||||
| Packaging Information | |||||
| Package Quantity | 1 | ||||
| Warranty Information | |||||
| Warranty | Limited Lifetime | ||||
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
| SKU | Options | Weight |
| PH-240-01SL | 1ft | 0.07 lb |
| PH-240-03SL | 3ft | 0.15 lb |
| PH-240-05SL | 5ft | 0.2 lb |
| PH-240-07SL | 7ft | 0.24 lb |
| PH-240-10SL | 10ft | 0.33 lb |
| PH-240-15SL | 15ft | 0.5 lb |
| PH-240-25SL | 25ft | 0.77 lb |
| PH-240-35SL | 35ft | 1.1 lb |
| PH-240-50SL | 50ft | 1.55 lb |
| PH-240-75SL | 75ft | 2.26 lb |
| PH-240-100SL | 100ft | 3.0 lb |
| PH-240-125SL | 125ft | 5.0 lb |
| PH-240-150SL | 150ft | 6.2 lb |
