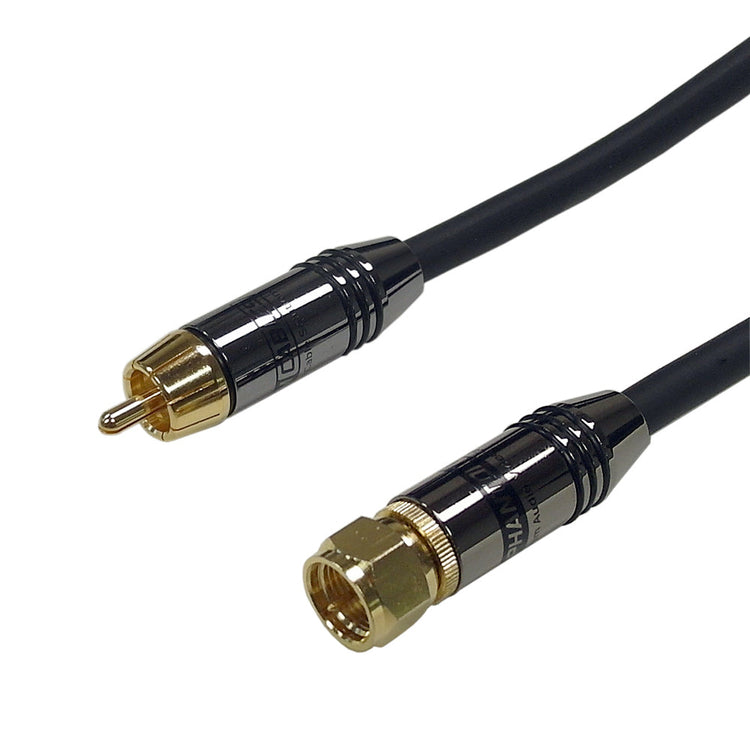

This RG59 cable consists of a RCA male connector on one end and a F-type connector on the other end. It is used to connect a CCTV output to a video display input.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 6.15 mm |
| Wire Gauge | 22AWG Stranded Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | FT4 - Riser |
| Cable Shielding | 100% aluminum/mylar foil, plus a 95% tinned copper braid |
| Strain Relief | Metal Shell |
| Connector(s) | |
| Connector A | F-Type Male |
| Connector B | RCA Male |
| Performance | |
| Impedance | 75ohm |
| Capacitance | 18.6 PF/FT |
| Velocity of Propagation | 78% |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|
| 0.40 lbs | 0.55 lbs | 0.75 lbs | 1.00 lbs | 1.50 lbs | 2.00 lbs | 2.75 lbs | 4.00 lbs | 5.25 lbs |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 2-4 business days.
