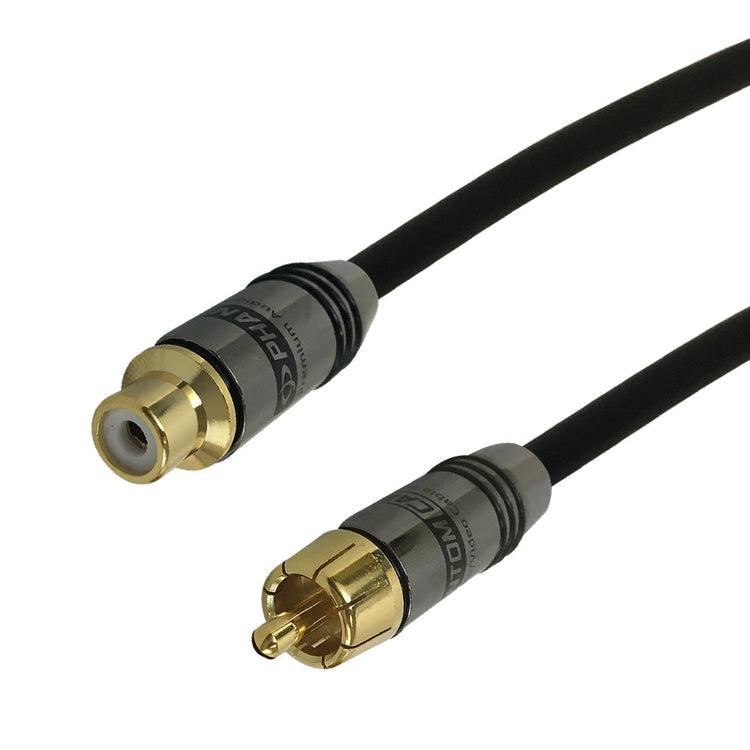

This cable consists of RCA male connector on one end, and a RCA female connector on the other end. It is typically used to extend a composite video cable.
Physical Characteristics | |
---|---|
Color | Black |
Connector Plating | Gold |
Cable Diameter | 22AWG Stranded |
Cable Type | RG59 |
Jacket Material | PVC - Polyvinyl Chloride |
Fire Rating | FT4 (Riser CMR) |
Cable Shielding | 95% Bare Copper Braid, 100% Aluminum Mylar Foil |
Insulation | Foam Polyethylene |
Strain Relief | Metal Shell |
Performance | |
Impedance | 75 Ohm |
Velocity of Propagation | 78% |
Capacitance | 18.6 PF/FT |
Connector(s) | |
Connector A | 1 - RCA Male |
Connector B | 1 - RCA Female |
Approvals | |
c(UL)us | Yes - Cable |
Environmental | |
RoHS | Yes |
Packaging Information | |
Package Quantity | 1 - Cable |
Warranty Information | |
Warranty | Limited Lifetime |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
SKU | Options | Weight |
RCA1PH3-03 | 3ft | 0.5 lb |
RCA1PH3-06 | 6ft | 0.34 lb |
RCA1PH3-10 | 10ft | 0.53 lb |
RCA1PH3-15 | 15ft | 0.77 lb |
RCA1PH3-25 | 25ft | 1.25 lb |
RCA1PH3-35 | 35ft | 1.73 lb |
RCA1PH3-50 | 50ft | 2.45 lb |
RCA1PH3-75 | 75ft | 3.65 lb |
RCA1PH3-100 | 100ft | 4.85 lb |
