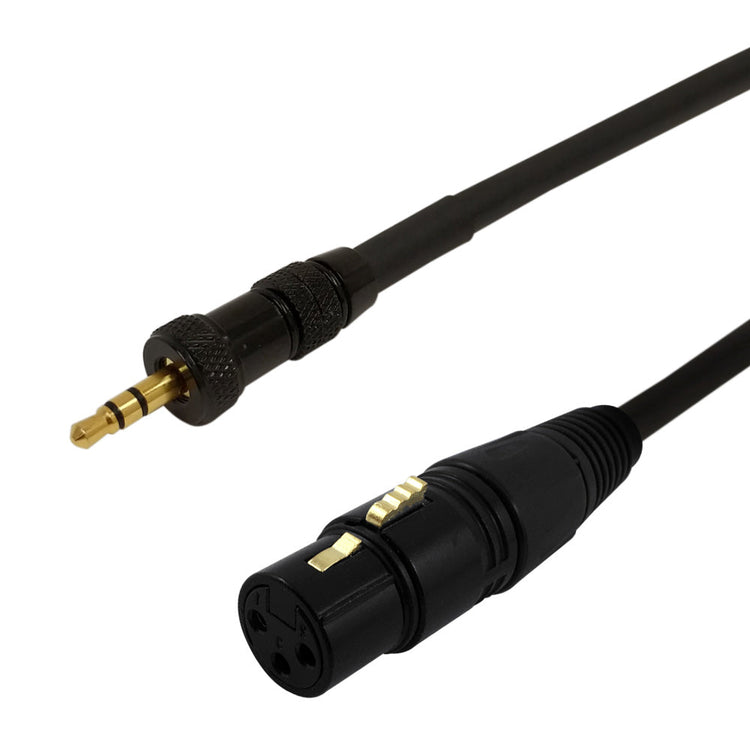

This audio cable has an XLR female on one end and a 3.5mm locking male on the other. It is typically used to connect a microphone to a wireless transmitter or camera.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 4.0 mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 90% Copper Braid, 100% Mylar Foil |
| Strain Relief | Metal Shell |
| Connectors | |
| Connector A | 3.5mm Stereo Locking Male |
| Connector B | XLR Female |
| Approvals | |
| c(UL)us | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 8ft | 10ft | 12ft | 15ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.25 lbs | 0.30 lbs | 0.35 lbs | 0.40 lbs | 0.45 lbs | 0.50 lbs | 0.55 lbs | 0.60 lbs | 0.65 lbs | 0.70 lbs |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 2-4 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
